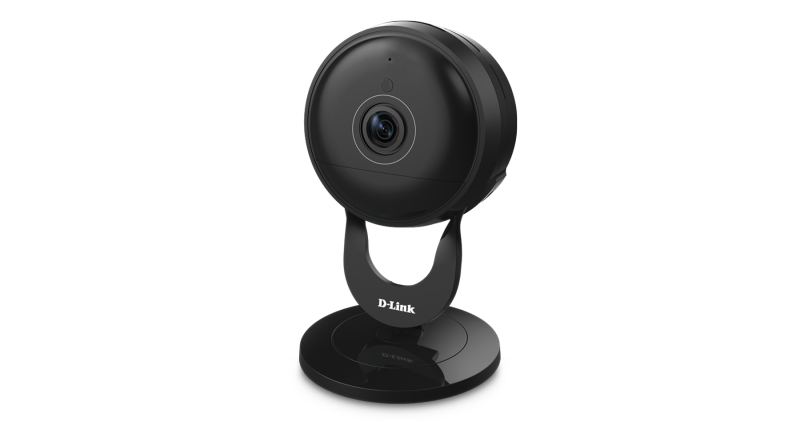

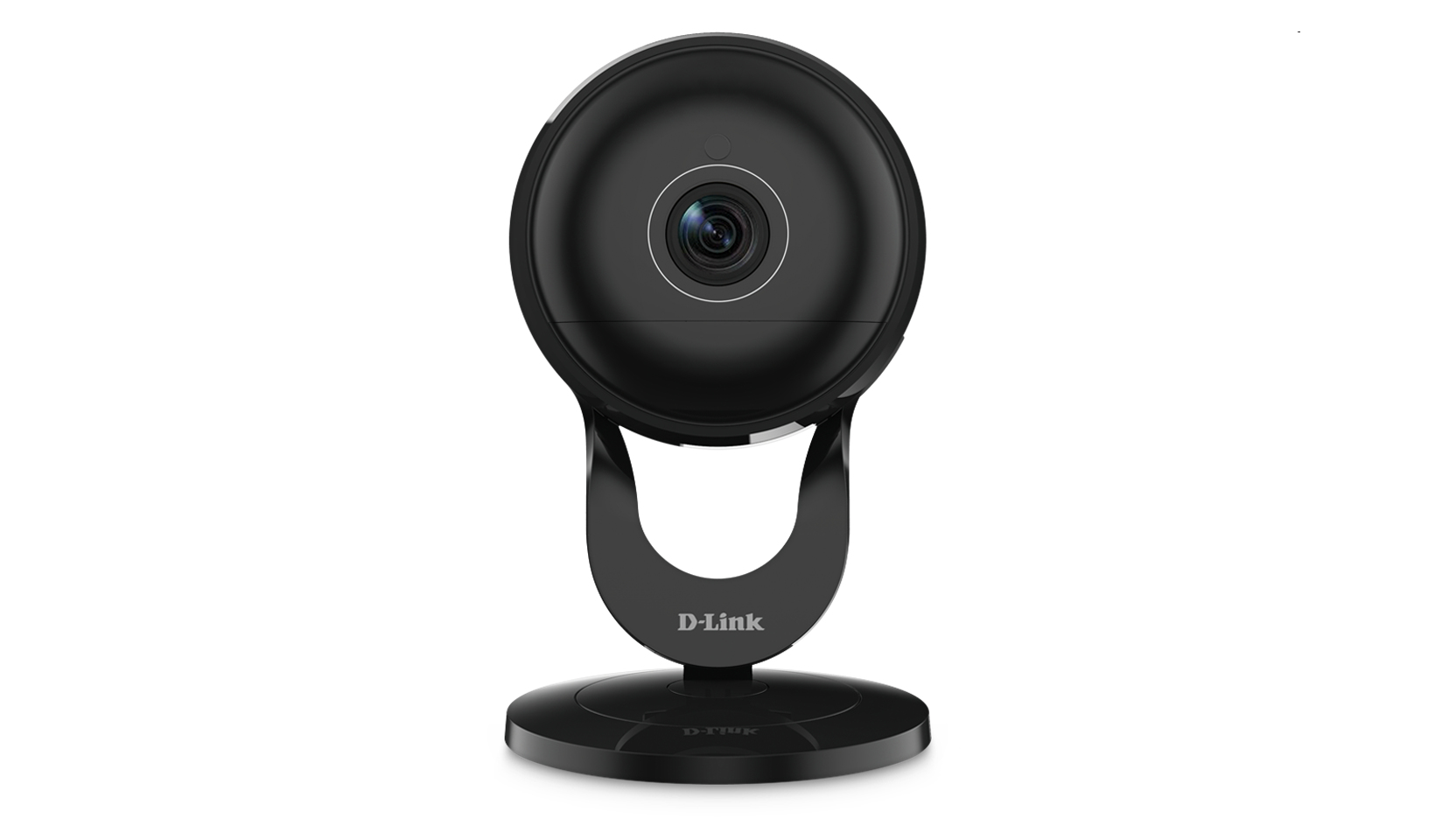

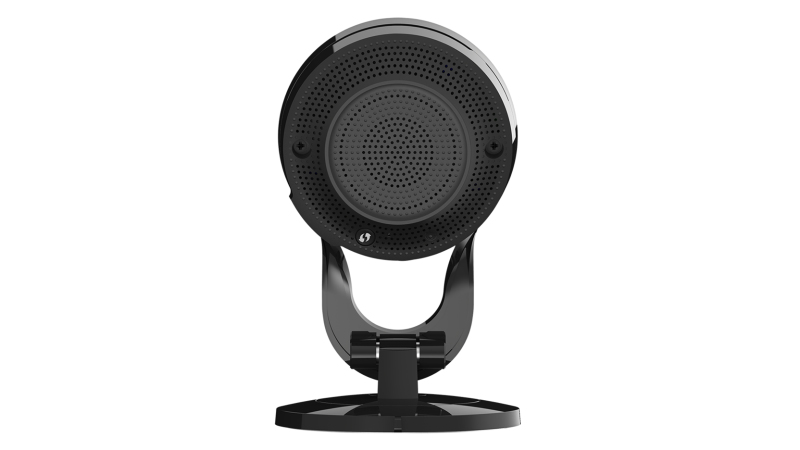

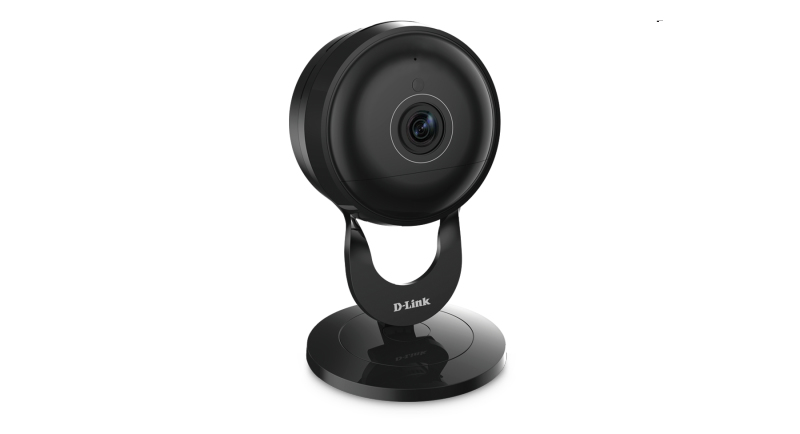

D-Link DCS-2530L security camera Spherical IP security camera Indoor

D-Link DCS-2530L security camera Spherical IP security camera Indoor

1920 x 1080 pixels Ceiling/wall

Model DCS-2530LEAN 790069432286

98 specifications
  • ConnectivityWireless
  • TypeIP security camera
  • Weight105 g
  • ColourBlack
  • Form factorSpherical
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wireless
Type
IP security camera
Weight
105 g
Colour
Black
Form factor
Spherical
Minimum illumination
0 lx
Brand
D-Link
Model
DCS-2530L
Part number
DCS-2530L
EAN / UPC
790069432286, 790069425332, 790069426117, 790069427794 +2 more
Also known as
D-Link DCS-2530L security camera Spherical IP security camera Indoor 1920 x 1080 pixels Ceiling/wall

Specifications

98 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWireless
Wide Dynamic Range (WDR)Yes
Remote viewingYes
CertificationCE, CE LVD, FCC, ICES

Design

Form factorSpherical
Mounting typeCeiling/wall
Product colourBlack
LED indicatorsYes

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical86°
Lens viewing angle, diagonal180°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Maximum aperture number2.5
Fixed focal length1.7 mm

Night vision

Night visionYes
Night vision distance4.8 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels1 MP
Video formats supportedH.264, M-JPEG
Video compression formatsH.264, M-JPEG
Supported graphics resolutions640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Video streamingYes
Full HDYes
Image quality adjustmentBrightness, Colour depth, Contrast, Saturation, Sharpness
Privacy maskingYes
Text caption overlayYes
Time stamp overlayYes

Audio

Audio formats supportedAAC, G.711
Built-in microphoneYes
Audio detectionYes

Network

Ethernet LANNo
Wi-FiYes
Supported network protocolsIPv6, IPv4, ARP, TCP, UDP, ICMP, NTP, DHCP, DNS, DDNS, SMTP, HTTP, UPnP, RTP/RTSP/RTCP, HTTPS, ONVIF, Bonjour
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)155 Mbit/s
Frequency band2.4 GHz
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB

Ports & interfaces

USB portYes
DC-in jackYes
InterfaceWLAN

Security

Password protectionYes
Password protection typeUser
Alert notification typeE-mail
Light sensorYes
Security algorithmsWPA, WPA2
Video motion detectionYes

Management features

Web-based managementYes
Remotely operatedYes
Reset buttonYes
WPS push buttonYes

Power

Power source typeAC
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (typical)4.5 W
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height60.7 mm
Diameter3.44 cm
Weight105 g
Height (with stand)109.6 mm

Packaging data

Package width135 mm
Package depth200 mm
Package height70 mm
Package weight534 g

Packaging content

Number of cameras1

Technical details

Lens typeWide-angle

Logistics data

Master (outer) cases per pallet (air)50 pc(s)
Master (outer) cases per pallet (sea)80 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)317 kg
Pallet gross weight (sea)494 kg
Pallet gross width120 cm
Pallet height (air)132 cm
Pallet height (sea)2.03 m
Products per pallet (air)500 pc(s)
Products per pallet (sea)800 pc(s)
Shipping (inner) case gross weight5.9 kg
Shipping (inner) case height23.7 cm
Shipping (inner) case length37.8 cm
Shipping (inner) case net weight5.3 kg
Shipping (inner) case width29.1 cm
Products per shipping (inner) case10 pc(s)
