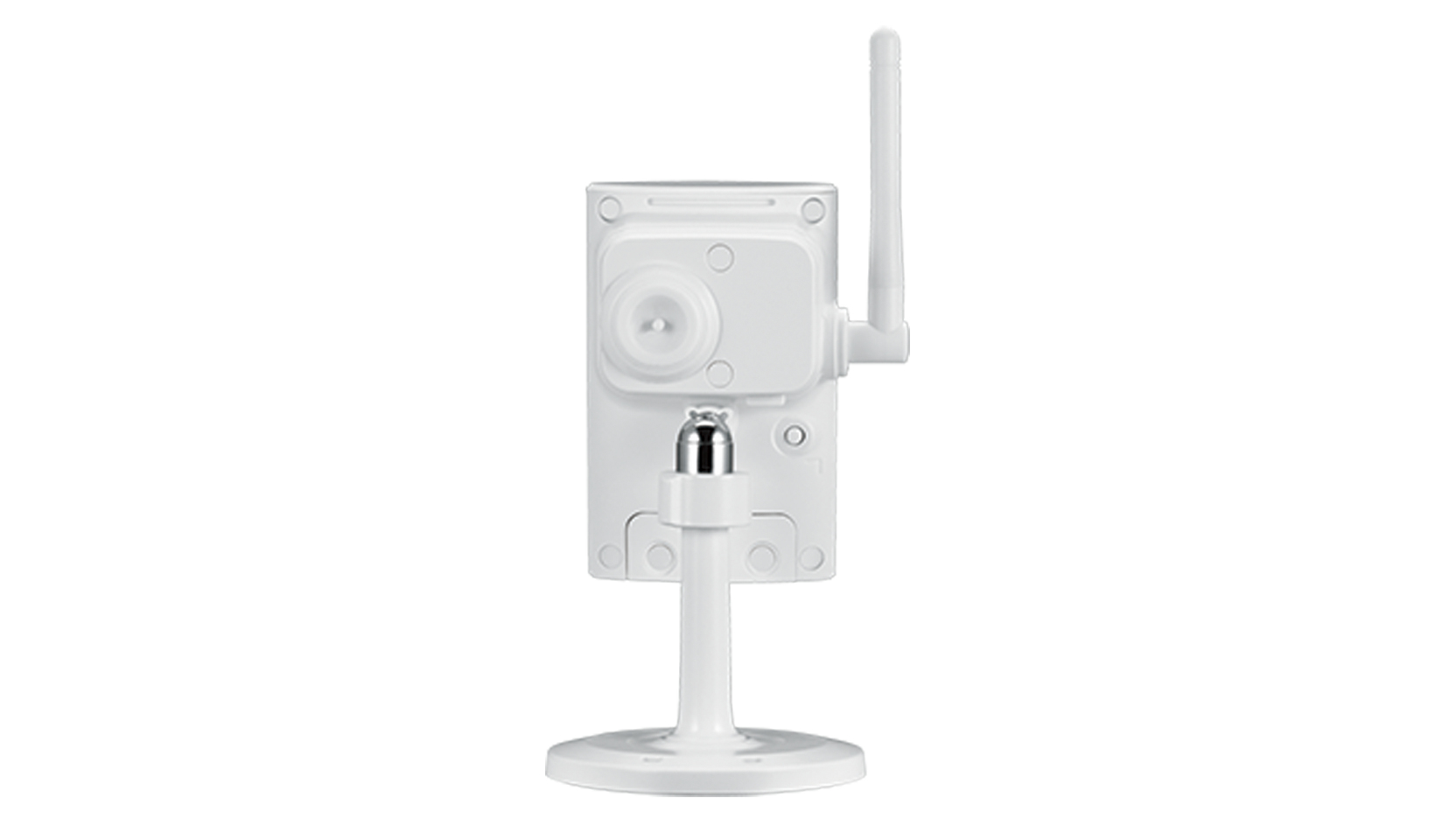

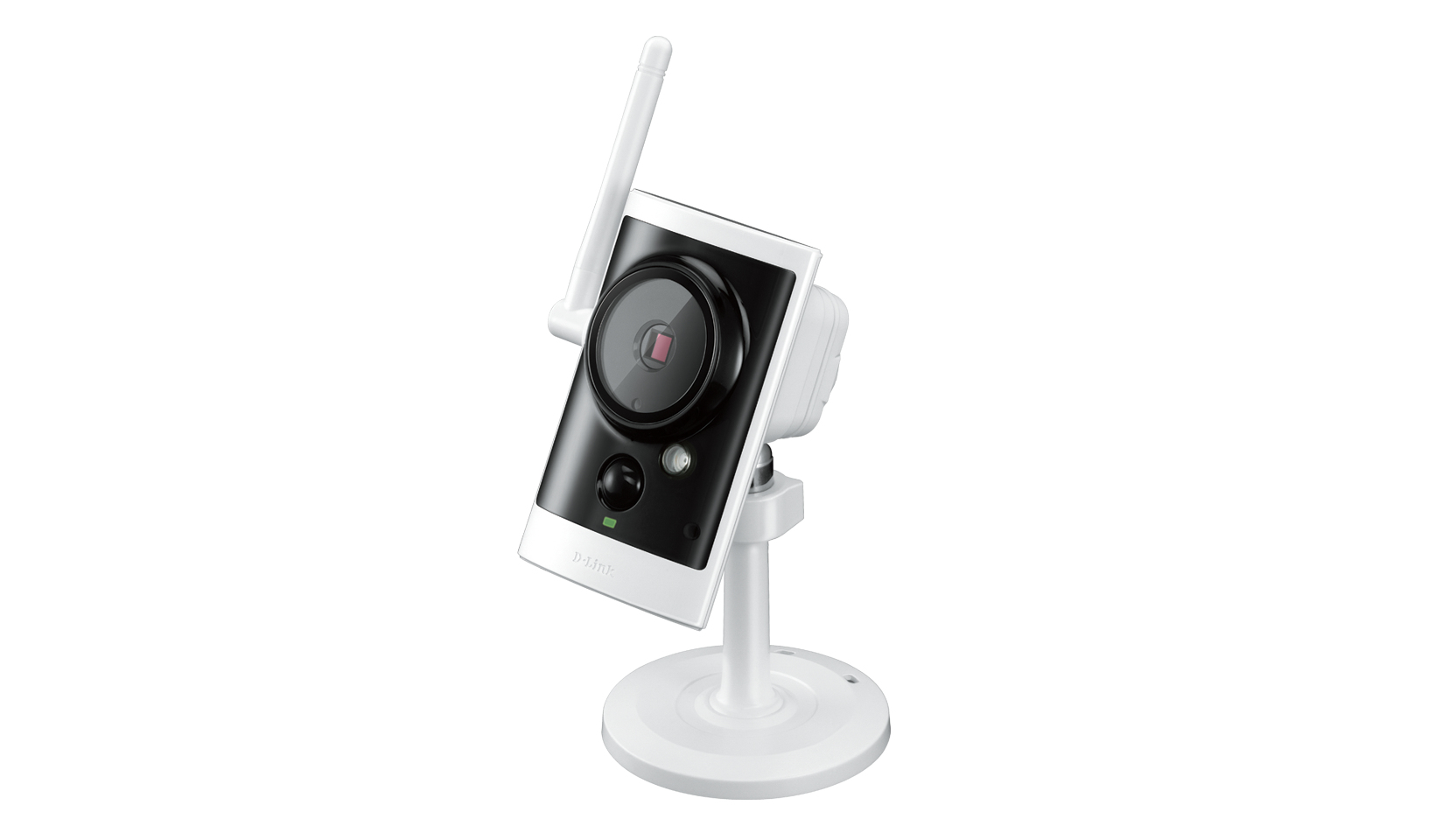

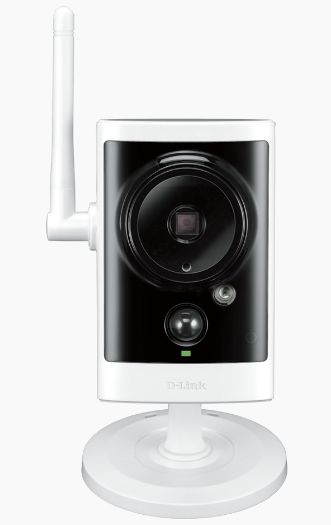

DCS-2330L security camera Box IP security camera Indoor & outdoor
1280 x 720 pixels
Model DCS-2330LPart no. DCS-2330L/EEUPEAN 790069405464
45 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight134 g
- ColourBlack, White
- Form factorBox
- Minimum illumination0 lx
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 134 g
- Colour
- Black, White
- Form factor
- Box
- Minimum illumination
- 0 lx
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-2330L
- Part numbers
- DCS-2330L/EEUP, DCS-2330L, DCS-2330L/E
- EAN / UPC
- 790069405464, 083754297346, 115971589383, 132018277980 +11 more
- Also known as
- D-Link DCS-2330L security camera Box IP security camera Indoor & outdoor 1280 x 720 pixels
Specifications
45 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| Certification | FCC, CE, CE LV D, C-Tick |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Product colour | Black, White |
| International Protection (IP) code | IP65 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 57.8° |
| Lens viewing angle, vertical | 37.8° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 10x |
| Fixed focal length | 3.45 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 5 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Video formats supported | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 480 x 360, 1024 x 768 (XGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 720p |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Supported network protocols | IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP / HTTPS, PPPoE, UPnP, RTP / RTSP/ RTCP, QoS, CoS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| HTTPS encryption | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 5.5 W |
| DC output voltage | -5V |
| DC output current | 1.2 A |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home |
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 53.8 mm |
| Height | 105 mm |
| Weight | 134 g |
