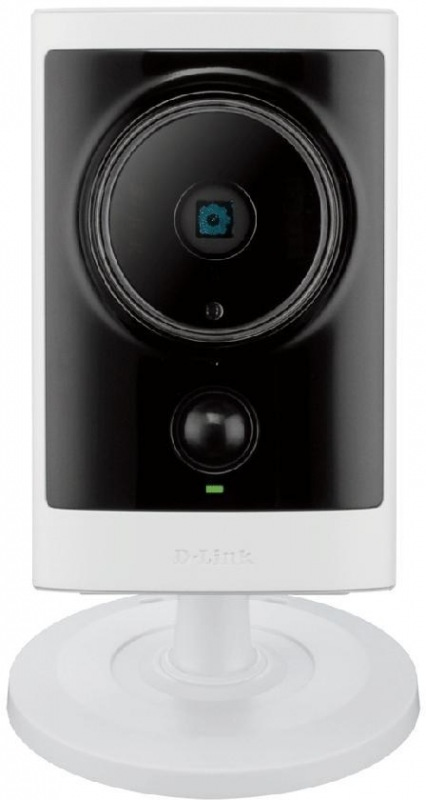

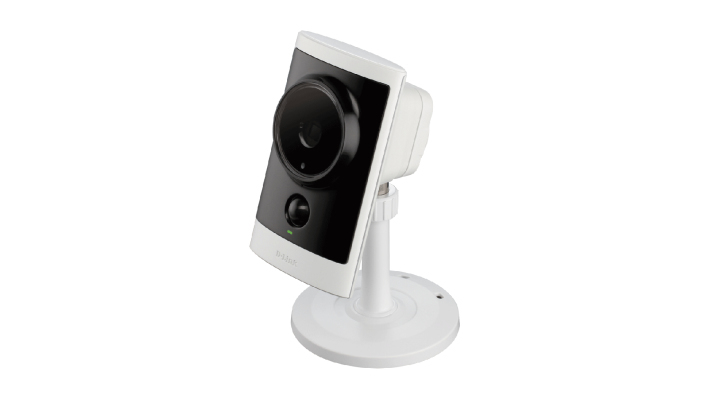

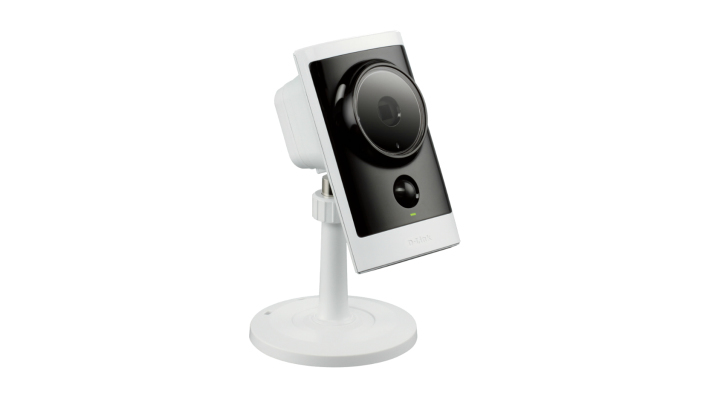

D-Link DCS-2310L/E security camera Cube IP security camera Outdoor

1280 x 800 pixels Wall

Model DCS-2310L/EEAN 7900693816380

70 specifications

ConnectivityWired
TypeIP security camera
Weight235 g
ColourBlack, White
Form factorCube
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 235 g
Colour: Black, White
Form factor: Cube
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2310L/E
Part number: DCS-2310L/E
EAN / UPC: 7900693816380
Also known as: D-Link DCS-2310L/E security camera Cube IP security camera Outdoor 1280 x 800 pixels Wall

Specifications

70 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Alarm input/output	Yes
Certification	CE, LVD, FCC, C-Tick

Design

Specification	Value
Form factor	Cube
Mounting type	Wall
Product colour	Black, White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP65

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	57.8°
Lens viewing angle, vertical	37.8°
Camera shutter type	Electronic

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Digital zoom	10x
Fixed focal length	3.45 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	5 m
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 800 pixels
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	720p
Frame rate	30 fps

Audio

Specification	Value
Audio system	2-way
Audio codecs	G.726, G.711
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, Samba, PPPoE, UPnP, RTP/RTSP/RTCP, QoS, CoS, IGMP
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Supervisor, User
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
DC output current	1.2 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-25 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Mac operating systems supported	Yes
Minimum RAM	128 MB
Minimum processor	1.3GHz

Weight & dimensions

Specification	Value
Width	66 mm
Depth	93 mm
Height	138.9 mm
Weight	235 g

Sustainability

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Manual	Yes
User guide	Yes

Other features

Specification	Value
Compatible operating systems	Windows 7 Windows Vista Windows XP MacOS X 10.5+
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
F-number (relative aperture)	2
Power requirements	5V DC
