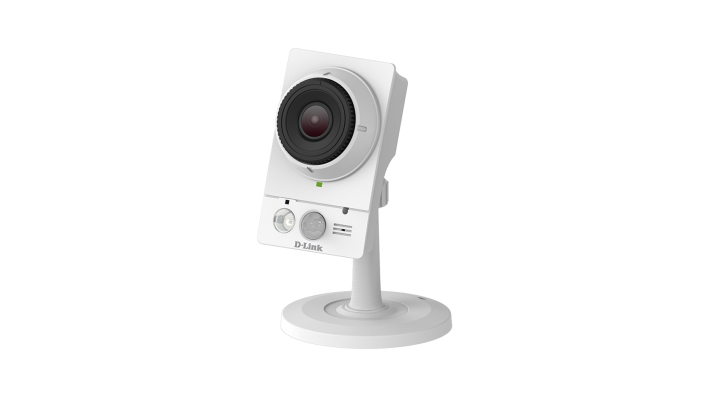

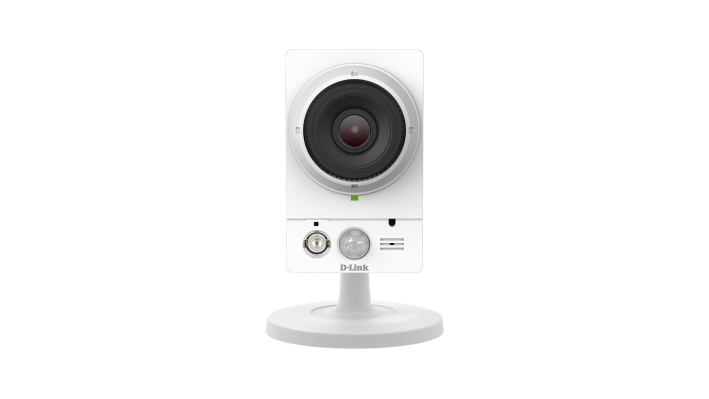

D-Link DCS-2230L/EEUP security camera Cube Indoor

1920 x 1080 pixels Desk/Wall

Model DCS-2230L/EEUP

65 specifications

ConnectivityWired & Wireless
TypeCube
Weight75 g
ColourWhite
Placement supportedIndoor
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: Cube
Weight: 75 g
Colour: White
Placement supported: Indoor
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2230L/EEUP
Part number: DCS-2230L/EEUP
Also known as: D-Link DCS-2230L/EEUP security camera Cube Indoor 1920 x 1080 pixels Desk/Wall

Specifications

65 specifications in 17 groups

Performance

Specification	Value
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Maximum operating distance	5 m
Day/night mode	Yes
Certification	CE, CELVD, FCC, C-Tick

Design

Specification	Value
Form factor	Cube
Mounting type	Desk/Wall
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	103°
Lens viewing angle, vertical	55°
Lens viewing angle, diagonal	118°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x
Maximum aperture number	1.8
Fixed focal length	2.8 mm

Night vision

Specification	Value
Night vision	Yes
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, MPEG4
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 1080, 1920 x 1080 (HD 1080)
Supported video modes	1080p
Full HD	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio formats supported	AAC, G.711
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP / HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP / RTSP/ RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC

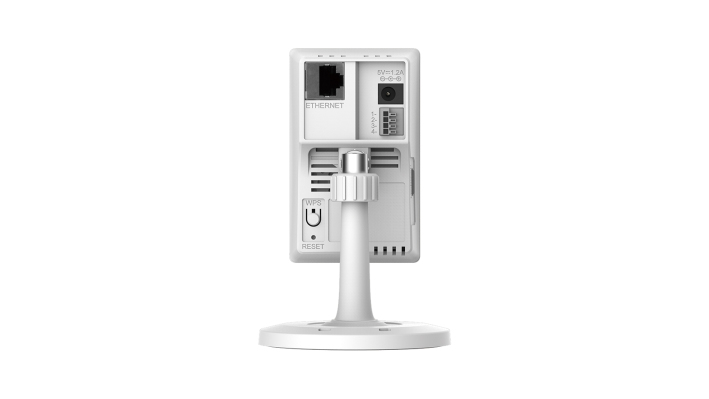

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes

Security

Specification	Value
Password protection type	Supervisor, User
Alert notification type	E-mail, Snapshot alert message
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	4 W
DC output current	1.2 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Mac compatibility	Yes
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Specification	Value
Width	58 mm
Depth	89 mm
Height	127.9 mm
Weight	75 g

Packaging content

Specification	Value
Number of cameras	1
