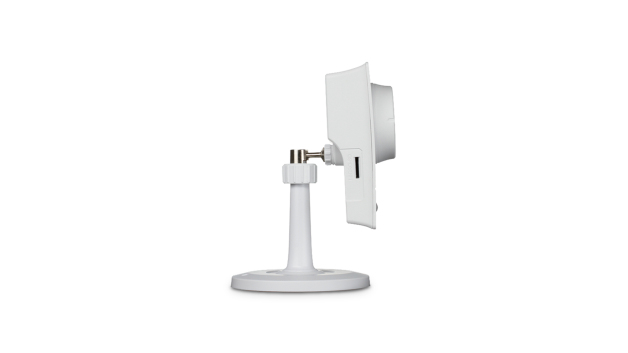

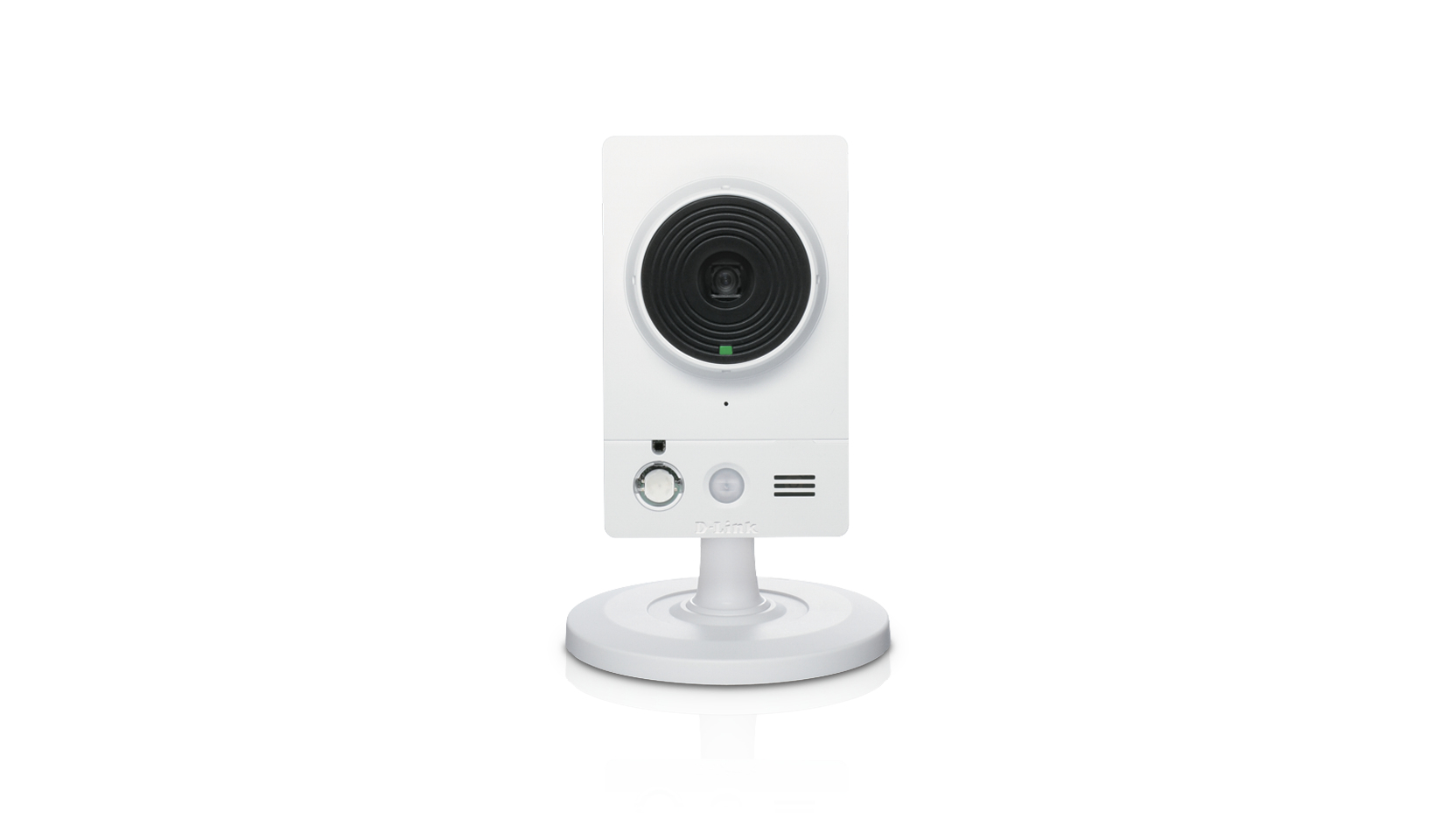

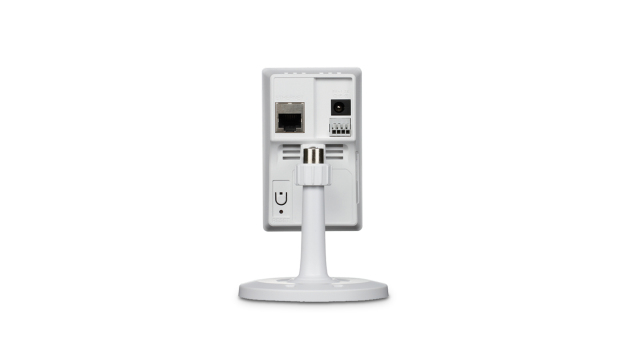

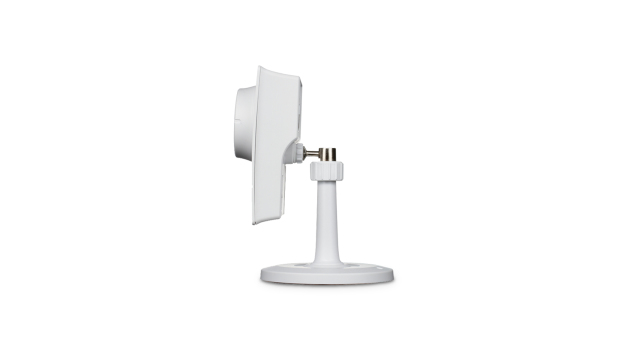

D-Link DCS-2230L security camera Cube IP security camera Indoor

D-Link DCS-2230L security camera Cube IP security camera Indoor

1920 x 1080 pixels

Model DCS-2230LEAN 790069411717

54 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight75 g
  • ColourWhite
  • Form factorCube
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
75 g
Colour
White
Form factor
Cube
Minimum illumination
0 lx
Brand
D-Link
Model
DCS-2230L
Part number
DCS-2230L
EAN / UPC
790069411717, 790069411823
Also known as
D-Link DCS-2230L security camera Cube IP security camera Indoor 1920 x 1080 pixels

Specifications

54 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
PTZ controlNo
Day/night modeYes
CertificationCE CE LVD FCC C-Tick

Design

Form factorCube
Product colourWhite

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal118°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")

Lens system

Digital zoom10x
Fixed focal length2.8 mm
Focus adjustment1.8

Night vision

Night visionYes
Night vision distance5 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, M-JPEG
Supported graphics resolutions1440 x 1080, 320 x 240, 480 x 270, 640 x 360, 1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 800 x 600 (SVGA)
Frame rate30 fps
Full HDYes

Audio

Built-in speaker(s)Yes
Audio system1-way
Audio formats supportedAAC
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv6 / IPv4 TCP/IP UDP ICMP Client DHCP Client NTP (D-Link) Client DNS Client DDNS (D-Link) Client SMTP Client FTP Bonjour HTTP / HTTPS Client Samba PPPoE UPnP RTP / RTSP/ RTCP QoS CoS IGMP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Power

AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (max)4 W
DC output voltage+5V
DC output current1.2 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Mobile operating systems supportedAndroid

Weight & dimensions

Width58 mm
Depth38.7 mm
Height95 mm
Weight75 g
