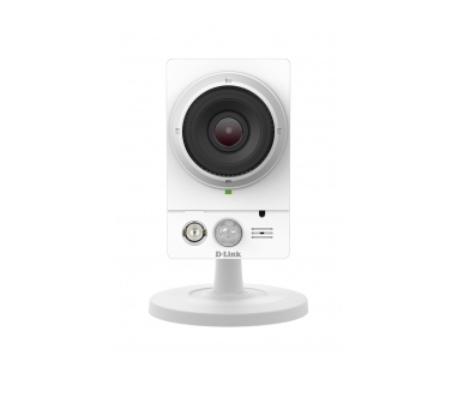

D-Link DCS-2210L security camera Cube IP security camera Indoor

1920 x 1080 pixels

Model DCS-2210LEAN 790069411700

64 specifications

ConnectivityWired
TypeIP security camera
Weight80 g
ColourWhite
Form factorCube
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 80 g
Colour: White
Form factor: Cube
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2210L
Part number: DCS-2210L
EAN / UPC: 790069411700, 790069411816, 7426045985912
Also known as: D-Link DCS-2210L security camera Cube IP security camera Indoor 1920 x 1080 pixels

Specifications

64 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	No
Day/night mode	Yes
Certification	CE CE LVD FCC C-Tick

Design

Specification	Value
Form factor	Cube
Product colour	White

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	103°
Lens viewing angle, vertical	55°
Lens viewing angle, diagonal	118°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")

Lens system

Specification	Value
Digital zoom	10x
Fixed focal length	2.8 mm
Focus adjustment	1.8

Night vision

Specification	Value
Night vision	Yes
Night vision distance	5 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 480 x 270, 640 x 360, 1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 800 x 600 (SVGA)
Frame rate	30 fps
Full HD	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio formats supported	AAC
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Supported network protocols	TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client Bonjour HTTP / HTTPS Samba client PPPoE UPnP RTP / RTSP/ RTCP IP filtering QoS CoS Multicast IGMP ONVIF
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Security

Specification	Value
Password protection type	Supervisor, User
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Remotely operated	Yes
Reset button	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	3.5 W
DC output voltage	+5V
DC output current	1.2 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	58 mm
Depth	38.7 mm
Height	85 mm
Weight	80 g

Packaging content

Specification	Value
Bundled software	D-Link D-ViewCam

Other features

Specification	Value
Compliance industry standards	IEEE802.3af PoE
