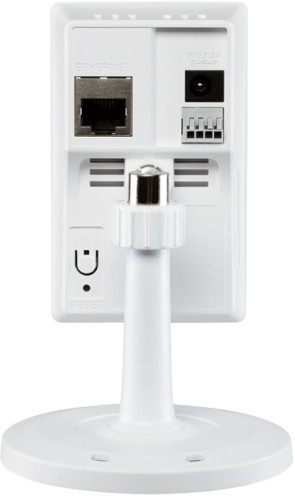

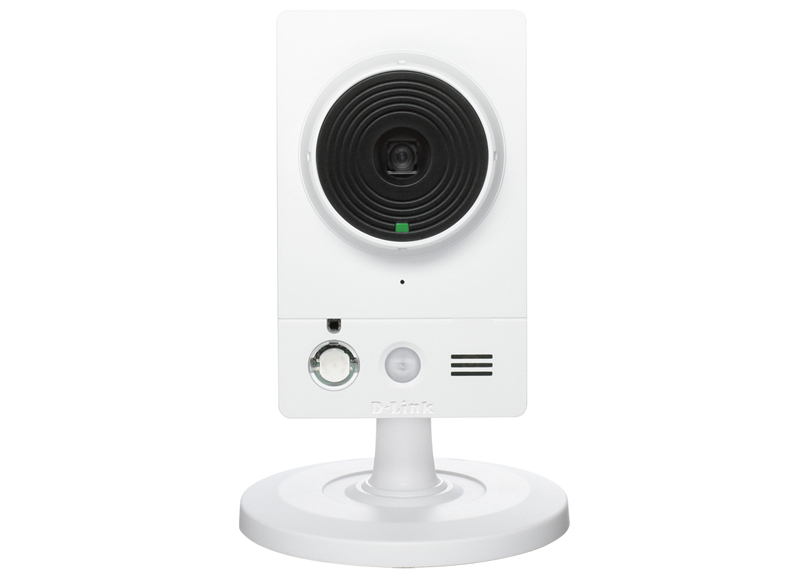

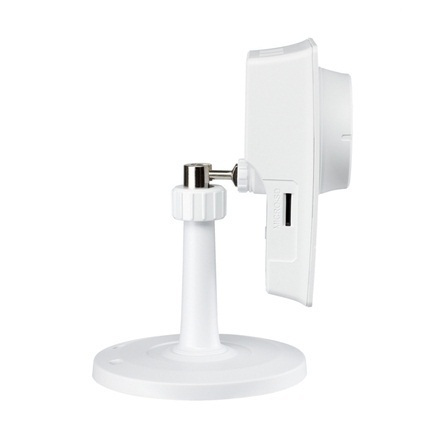

D-Link DCS-2210 security camera Box Indoor

1920 x 1080 pixels

Model DCS-2210Part no. DCS-2210/AEAN 7900693663830

63 specifications

ConnectivityWired
TypeBox
Weight69 g
ColourWhite
Placement supportedIndoor
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired
Type: Box
Weight: 69 g
Colour: White
Placement supported: Indoor
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2210
Part numbers: DCS-2210/A, DCS-2210
EAN / UPC: 7900693663830, 790069358524, 790069365355, 790069366383 +2 more
Also known as: D-Link DCS-2210 security camera Box Indoor 1920 x 1080 pixels

Specifications

63 specifications in 18 groups

Performance

Specification	Value
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Certification	CE, CE LVD, FCC, ICES-003, C-Tick

Design

Specification	Value
Form factor	Box
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	67.4°
Lens viewing angle, vertical	40.8°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Effective sensor resolution	2000000 pixels

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x

Night vision

Specification	Value
Night vision	Yes
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	480p, 720p
Frame rate	15 fps

Audio

Specification	Value
Audio system	2-way
Audio codecs	G.726
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, 3GPP, IGMP, ONVIF
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Security algorithms	HTTPS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	2 W
DC output voltage	+5V
DC output current	1.25 A
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Hom
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Linux operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	58 mm
Depth	38.7 mm
Height	95 mm
Weight	69 g

Other features

Specification	Value
Compatible operating systems	Microsoft Windows 7/Vista/XP/2000 Apple MAC OSX 10.3+ Linux, Unix
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Data transfer rate	100 Mbit/s
Networking features	Fast Ethernet
