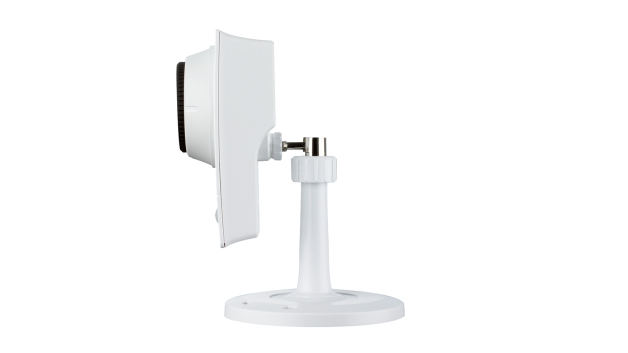

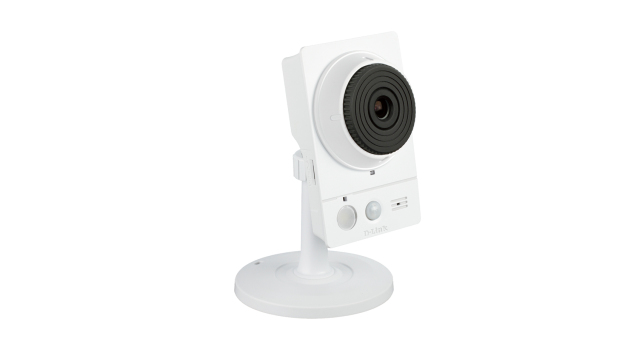

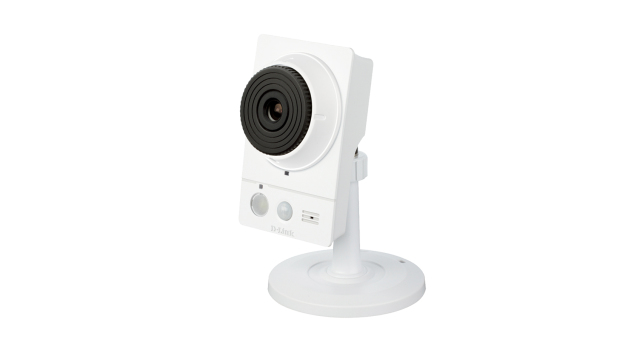

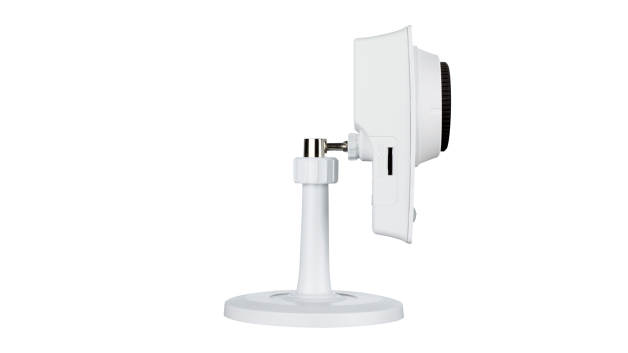

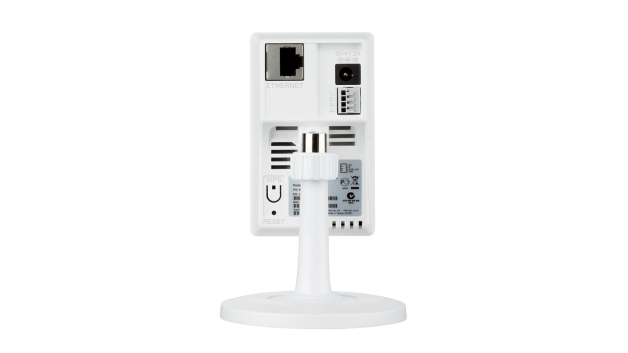

D-Link DCS-2136L/ESGP security camera Cube IP security camera Indoor

1280 x 800 pixels Desk/Wall

Model DCS-2136L/ESGP

64 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight129 g
ColourWhite
Form factorCube
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 129 g
Colour: White
Form factor: Cube
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2136L/ESGP
Part number: DCS-2136L/ESGP
Also known as: D-Link DCS-2136L/ESGP security camera Cube IP security camera Indoor 1280 x 800 pixels Desk/Wall

Specifications

64 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Maximum operating distance	5 m
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE, CELVD, FCC, C-Tick

Design

Specification	Value
Form factor	Cube
Mounting type	Desk/Wall
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	64°
Lens viewing angle, vertical	46.5°
Lens viewing angle, diagonal	92.4°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x
Maximum aperture number	1.4
Fixed focal length	3.6 mm

Video

Specification	Value
Maximum resolution	1280 x 800 pixels
Video formats supported	H.264, MPEG4
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 176, 320 x 240, 480 x 272, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 480 (WVGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA)
Supported video modes	720p

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio formats supported	AAC, G.711
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP / HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP / RTSP/ RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes

Security

Specification	Value
Password protection type	Supervisor, User
Alert notification type	E-mail, Snapshot alert message
Video motion detection	Yes

Power

Specification	Value
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	4.5 W
DC output current	1.2 A
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Width	43.1 mm
Depth	58 mm
Height	95 mm
Weight	129 g

Packaging content

Specification	Value
Number of cameras	1
Memory card included	MiniSD
Included memory card size	16 GB

Technical details

Specification	Value
Removable IR-cut filter	Yes
