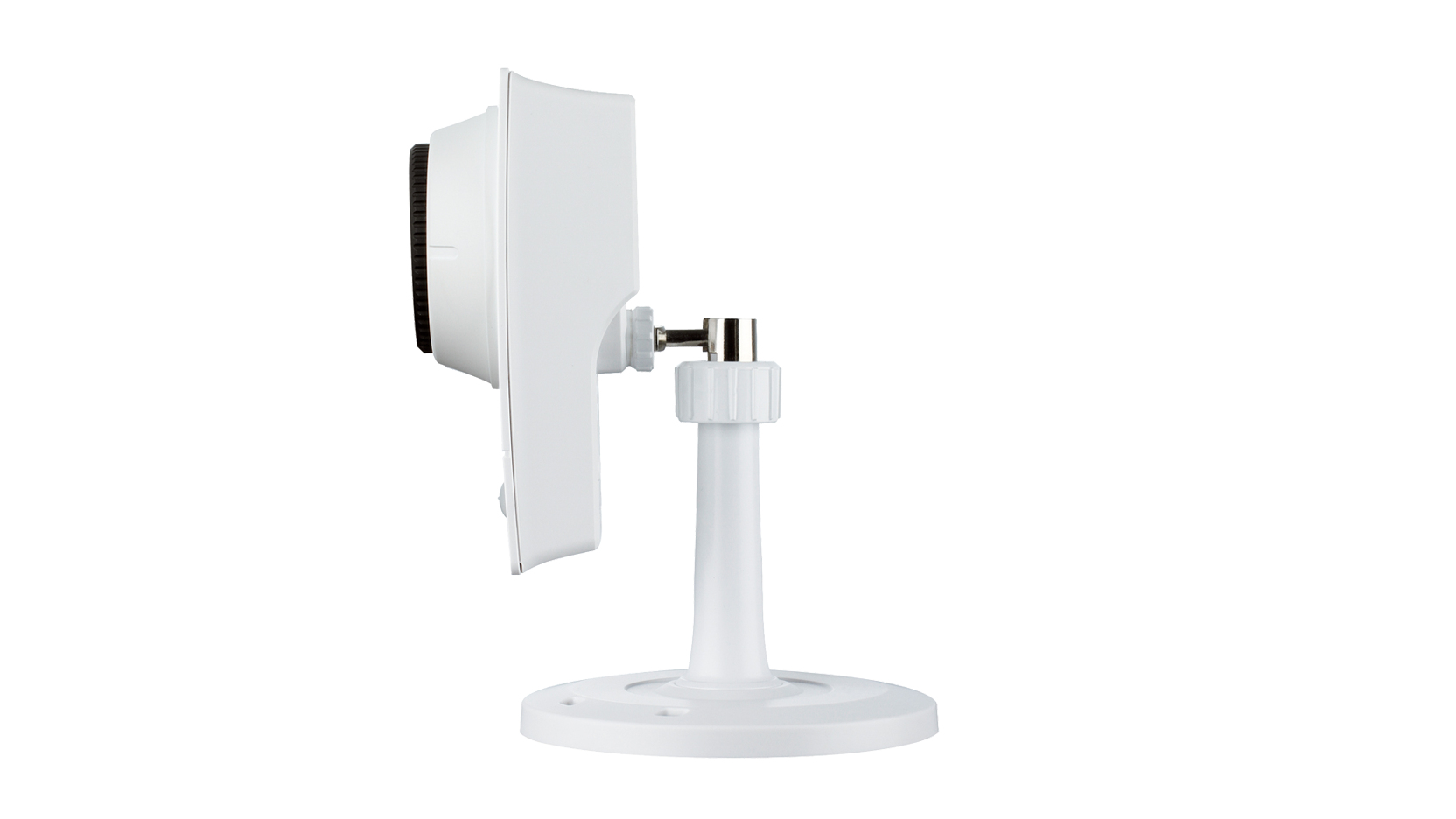

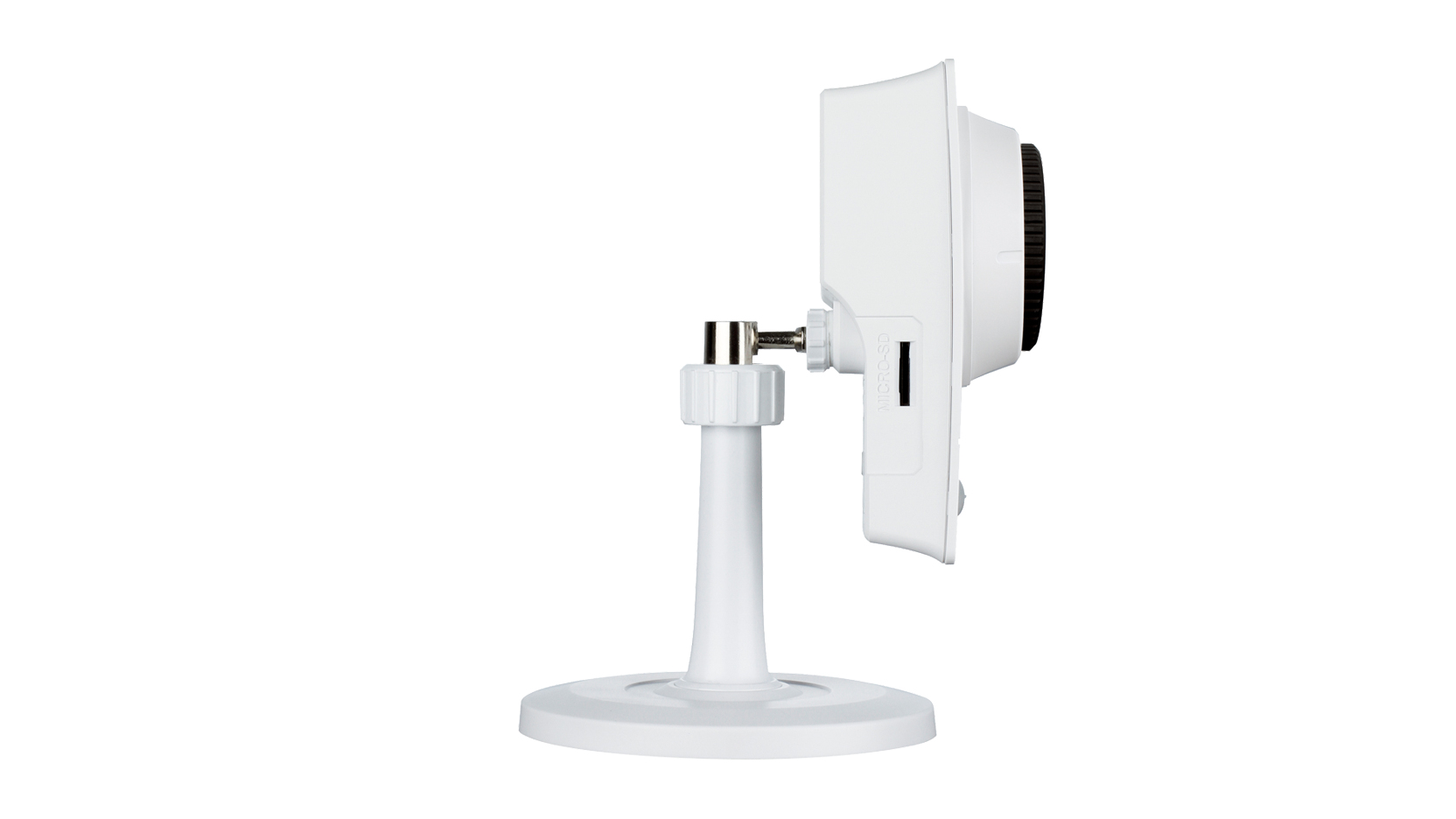

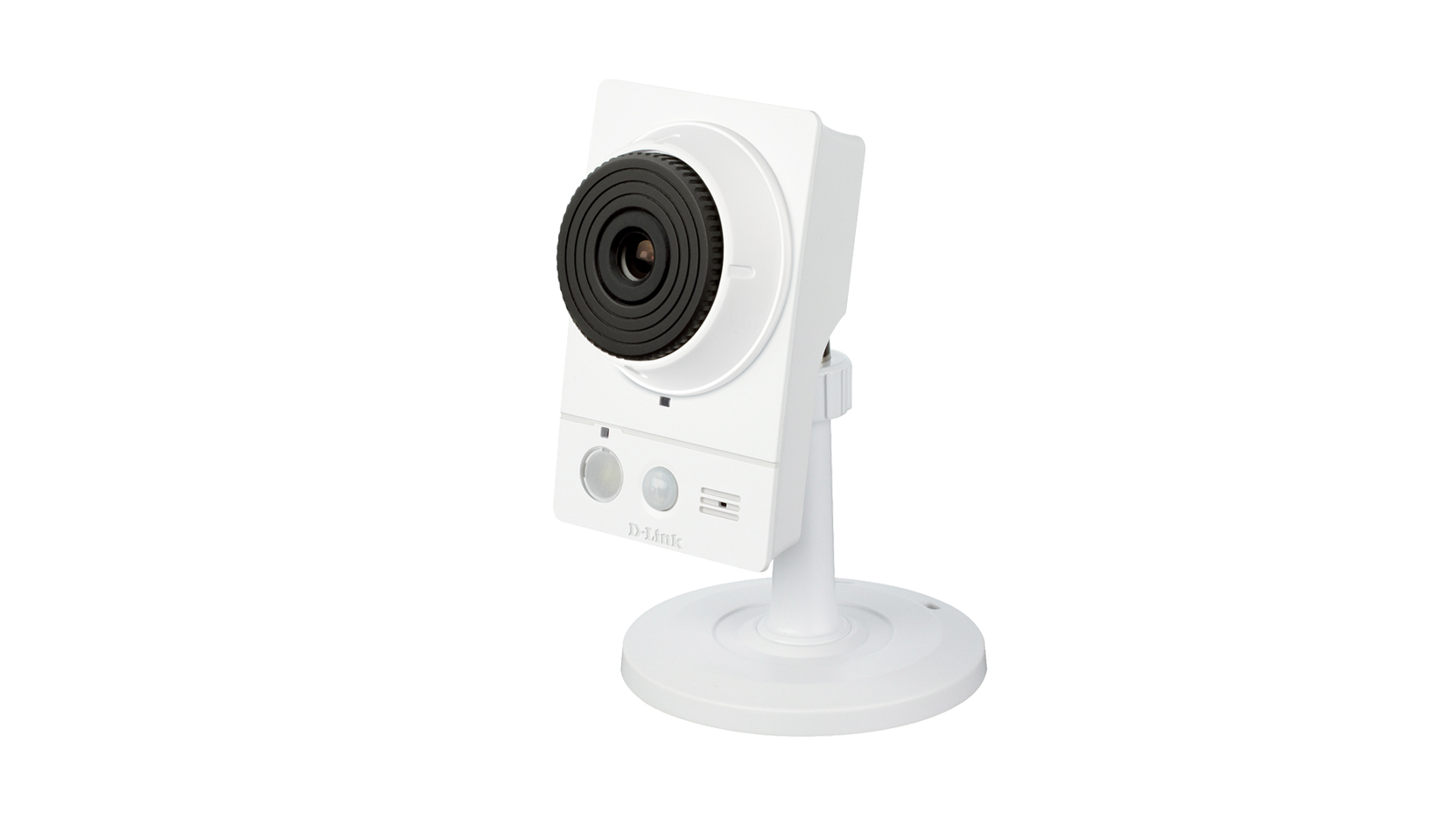

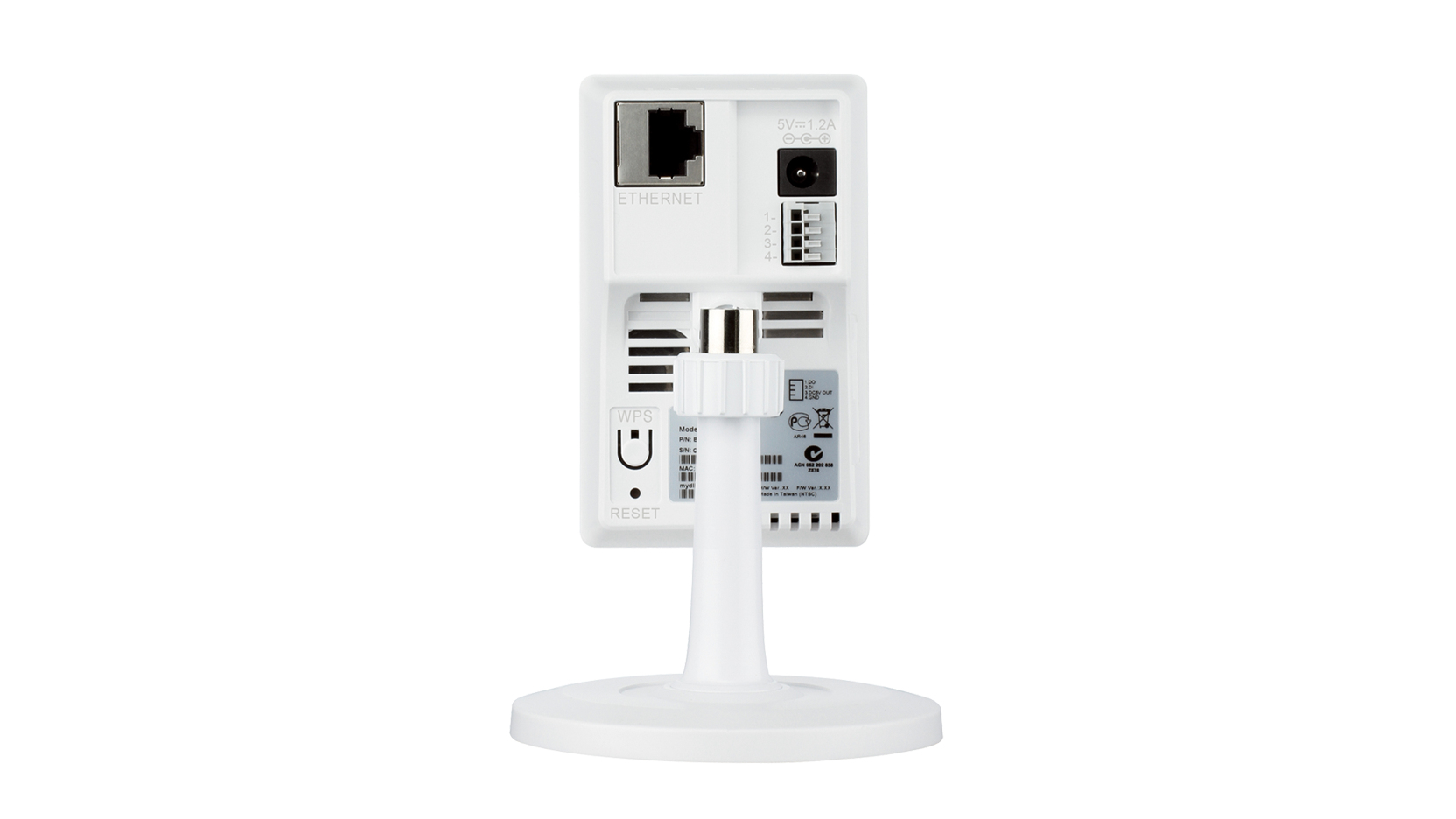

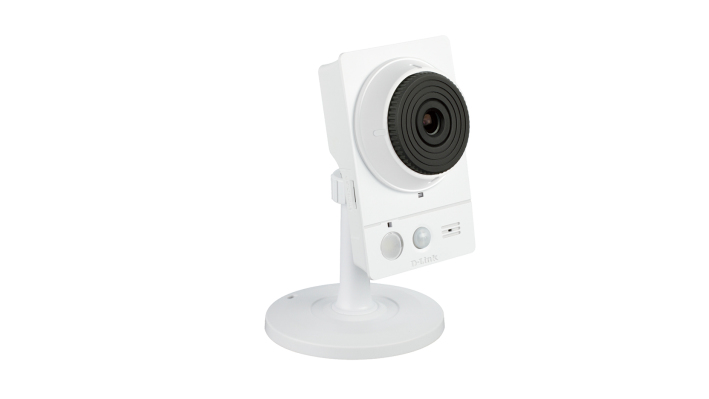

DCS-2136L Cube IP security camera Indoor
1280 x 720 pixels
Model DCS-2136LEAN 7900693948364
45 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight84 g
- ColourWhite
- Form factorCube
- Minimum illumination0 lx
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 84 g
- Colour
- White
- Form factor
- Cube
- Minimum illumination
- 0 lx
- Brand
- D-Link
- Category
- Security Camera
- Model
- DCS-2136L
- Part numbers
- DCS-2136L, DCS-2136L/E
- EAN / UPC
- 7900693948364, 790069394836, 790069400797, 790069400933 +6 more
- Also known as
- D-Link DCS-2136L Cube IP security camera Indoor 1280 x 720 pixels
Specifications
45 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Plug and Play | Yes |
| Certification | CE, CE LVD, FCC Class B, C-Tick |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 64° |
| Lens viewing angle, vertical | 46.5° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 10x |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Video formats supported | H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 480 x 360, 1024 x 768 (XGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA) |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Supported network protocols | IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP/RTSP/RTCP, IP filtering, QoS, CoS, Multicast, IGMP, SNMP, ONVIF |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| IP address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 4.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 43.1 mm |
| Height | 95 mm |
| Weight | 84 g |
Packaging content
| Specification | Value |
|---|---|
| Memory card included | Yes |
Other features
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer, Firefox, Safari, Chrome |
