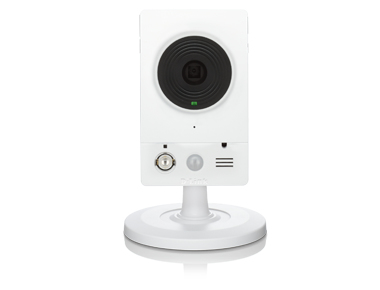

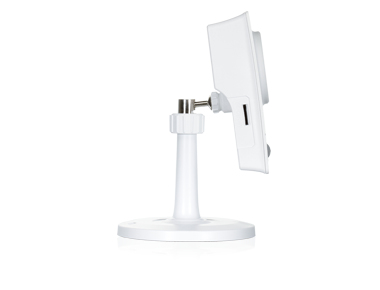

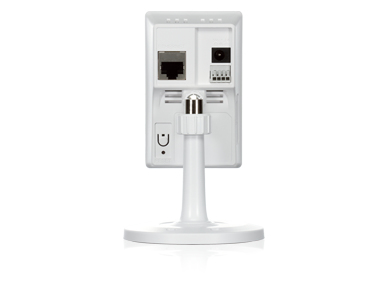

D-Link DCS-2132L security camera Box IP security camera Indoor

1280 x 800 pixels Desk

Model DCS-2132LPart no. DCS-2132L/LEAN 7900693821162

61 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight116 g
ColourWhite
Form factorBox
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 116 g
Colour: White
Form factor: Box
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: DCS-2132L
Part numbers: DCS-2132L/L, DCS-2132L, DCS-2132L/B
EAN / UPC: 7900693821162, 071021101953, 132017692814, 151903574898 +15 more
Also known as: D-Link DCS-2132L security camera Box IP security camera Indoor 1280 x 800 pixels Desk

Specifications

61 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Certification	CE, CE LVD, FCC, ICES, C-Tick

Design

Specification	Value
Form factor	Box
Mounting type	Desk
Product colour	White
LED indicators	Power

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	57.8°
Lens viewing angle, vertical	37.8°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	10x
Fixed focal length	3.45 mm
Normal focusing range	0.3 m

Night vision

Specification	Value
Night vision	No

Video

Specification	Value
Maximum resolution	1280 x 800 pixels
Total megapixels	1 MP
Video formats supported	H.264, MPEG4
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes	720p
Frame rate	30 fps

Audio

Specification	Value
Audio system	2-way
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP / HTTPS, Samba client, PPPoE, UPnP, RTP/RTSP/RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100 BASE-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Yes
HTTPS encryption	Yes
IP address filtering	Yes
Security algorithms	HTTPS
Video motion detection	Yes

Power

Specification	Value
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.65 W
DC output current	1.2 A
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi

Weight & dimensions

Specification	Value
Width	58 mm
Depth	30.7 mm
Height	95 mm
Weight	116 g

Packaging content

Specification	Value
Manual	Yes
AC adapter included	Yes
Quick start guide	Yes
User guide	Yes
