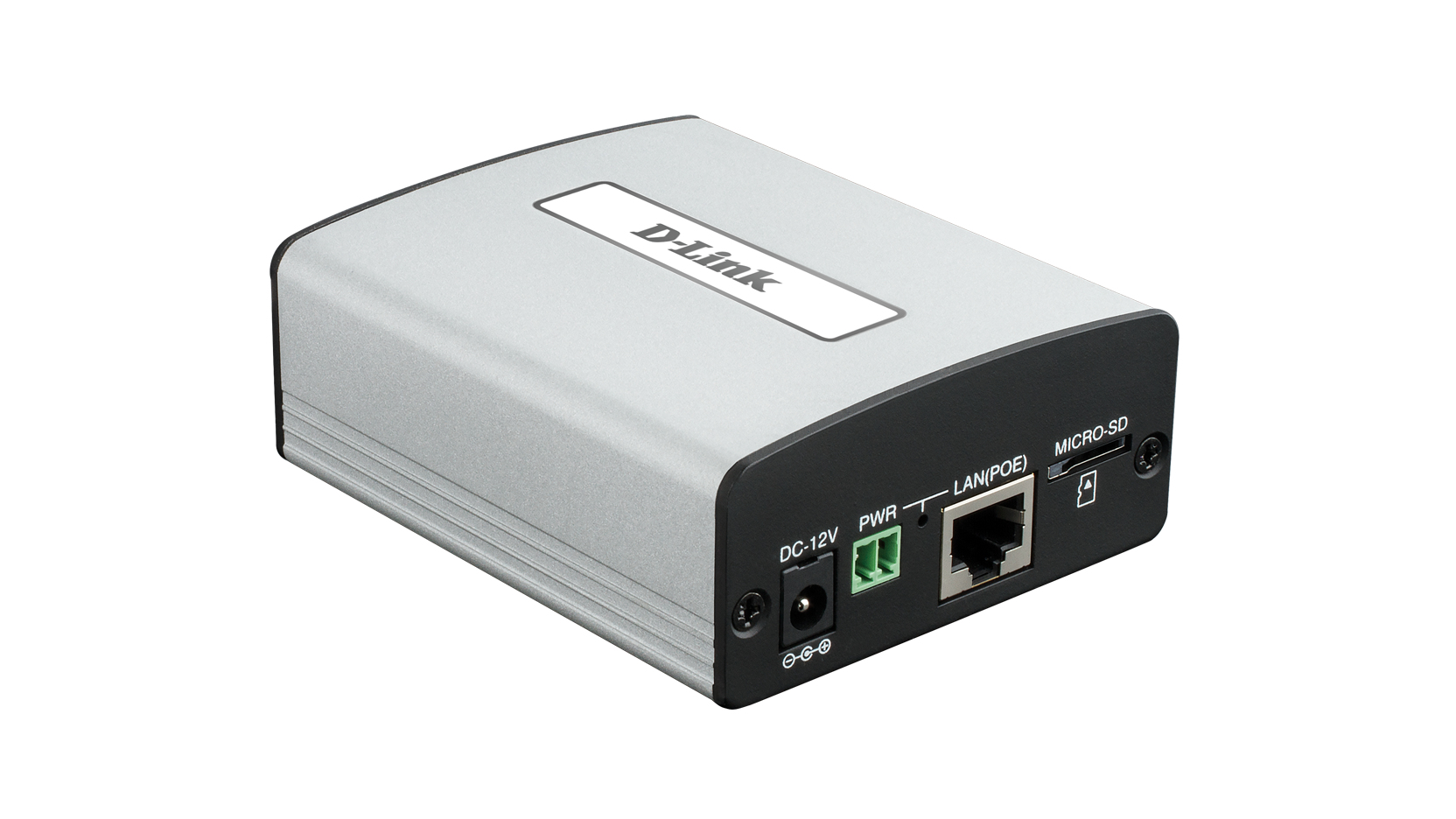

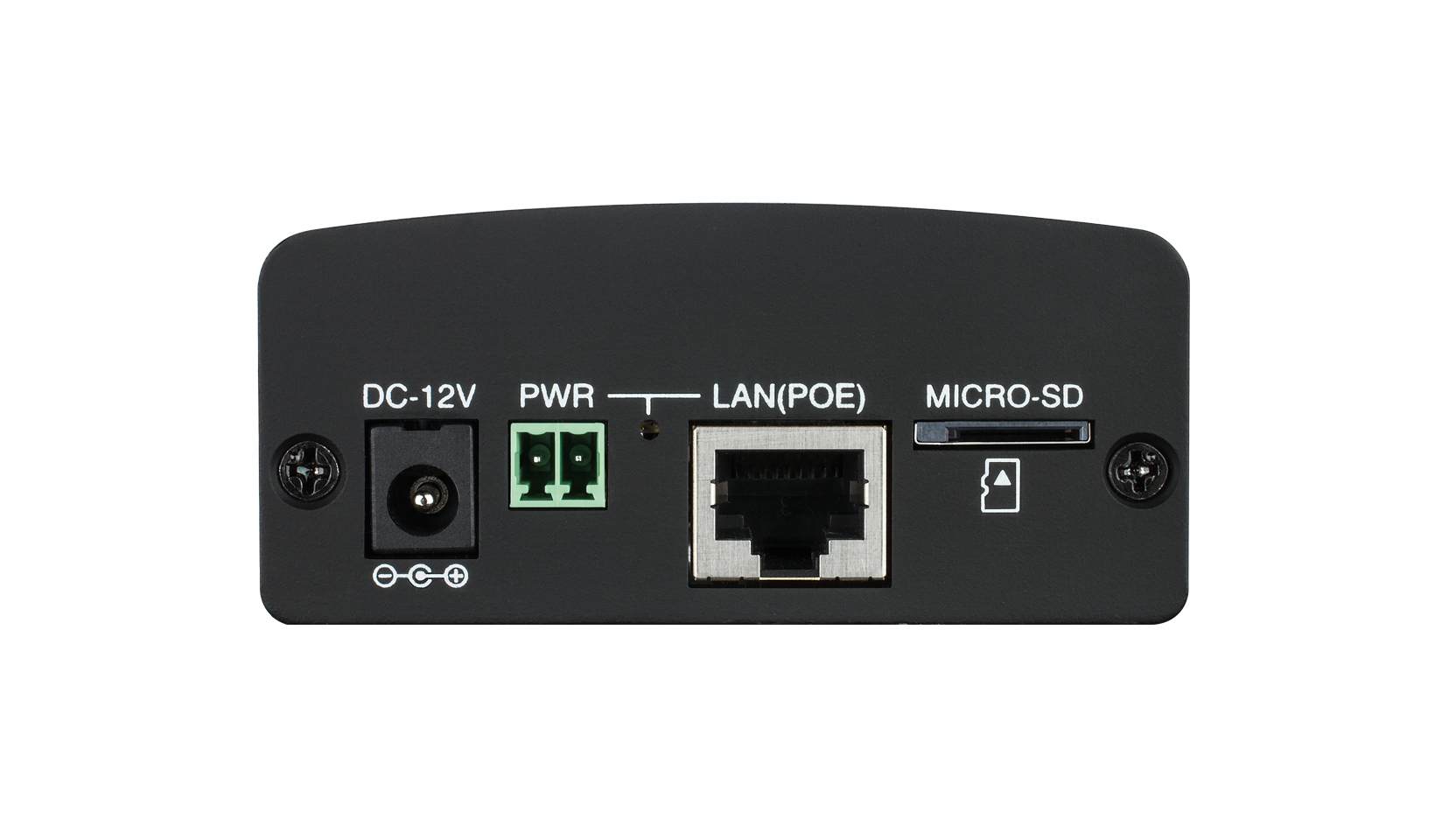

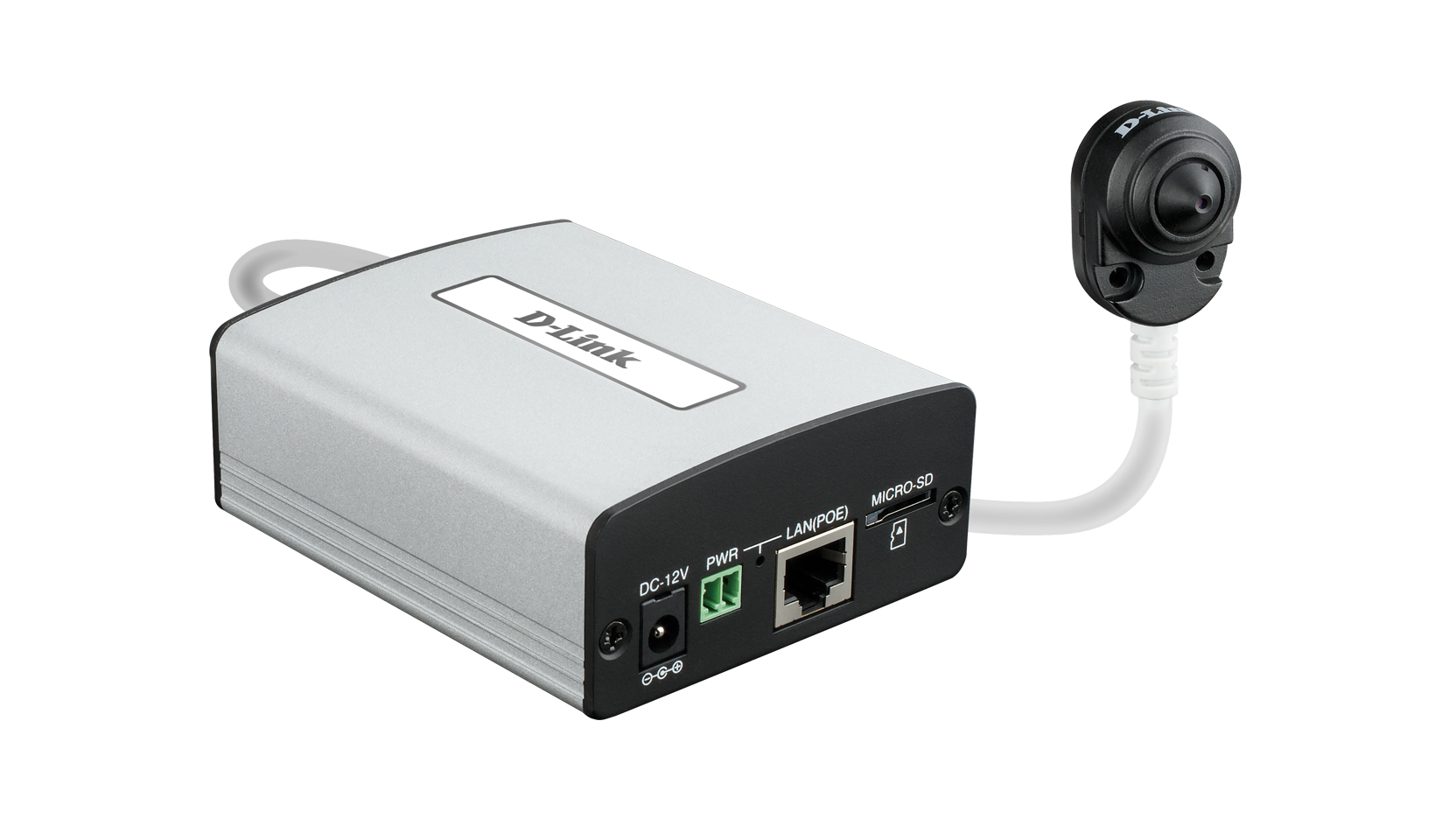

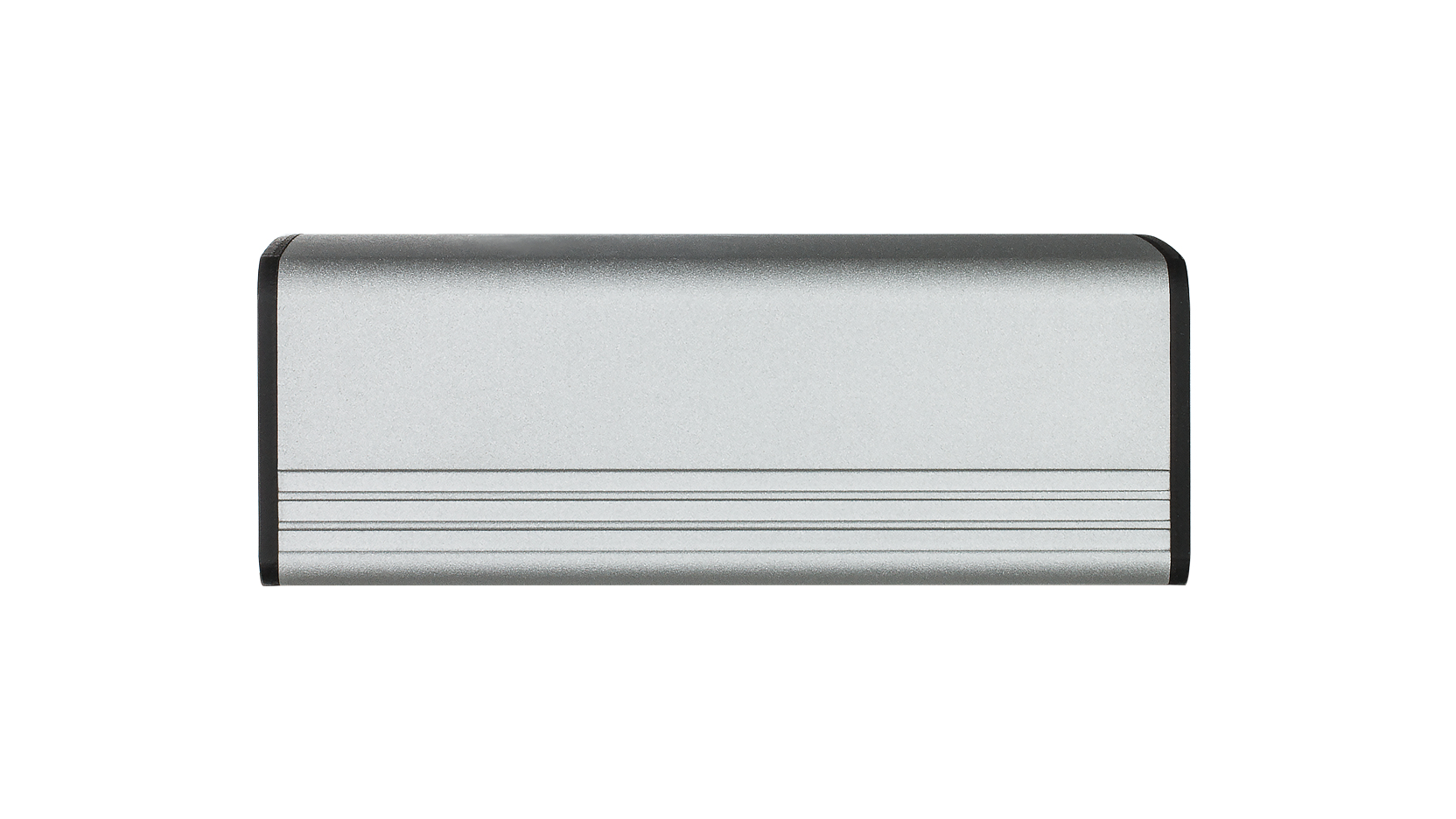

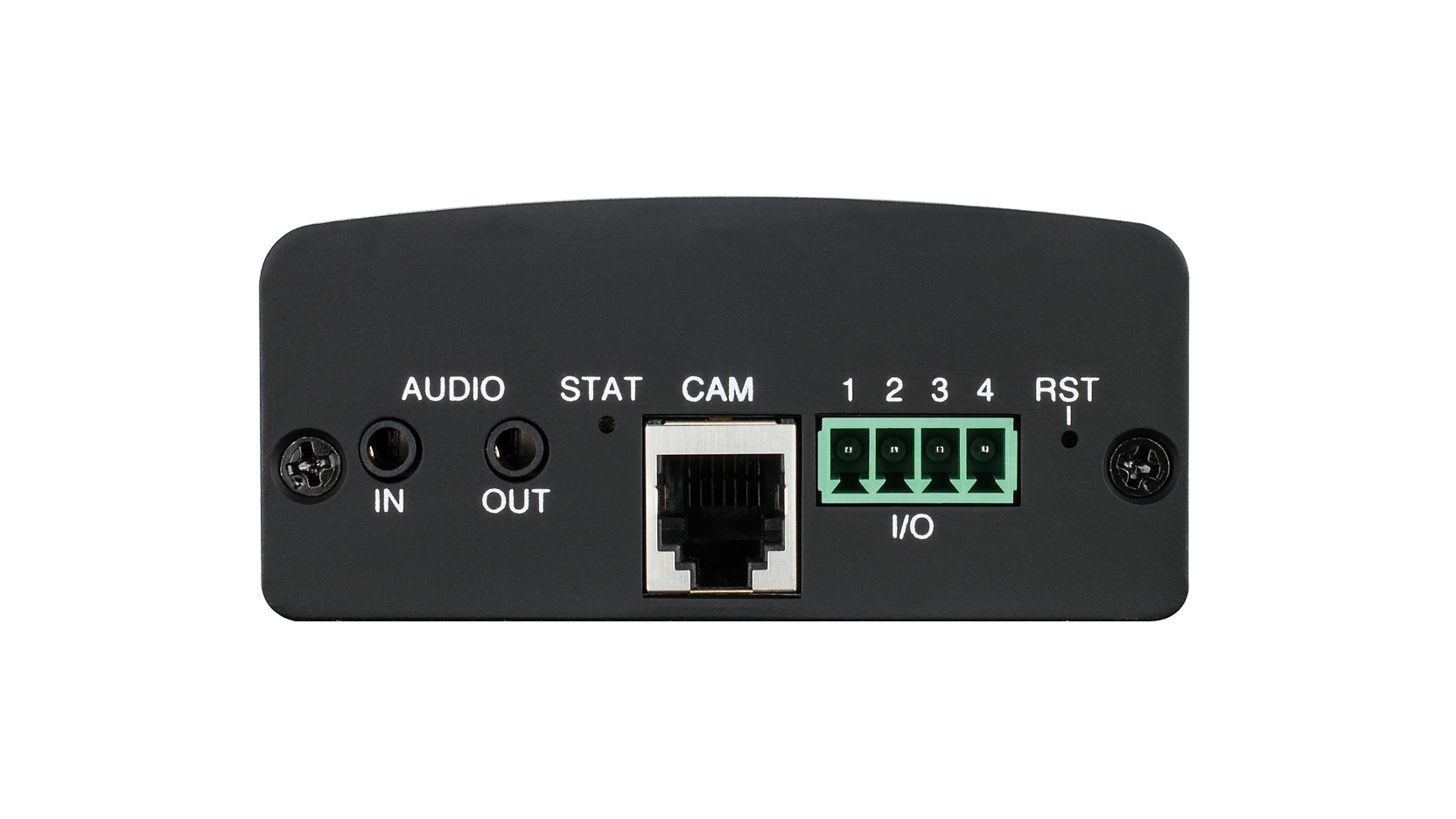

D-Link DCS-1201 security camera Covert IP security camera Indoor

D-Link DCS-1201 security camera Covert IP security camera Indoor

1280 x 720 pixels Ceiling/wall

Model DCS-1201EAN 790069419508

81 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight345.8642 g
  • ColourBlack, White
  • Form factorCovert
  • Minimum illumination0.2 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
345.8642 g
Colour
Black, White
Form factor
Covert
Minimum illumination
0.2 lx
Brand
D-Link
Model
DCS-1201
Part number
DCS-1201
EAN / UPC
790069419508
Also known as
D-Link DCS-1201 security camera Covert IP security camera Indoor 1280 x 720 pixels Ceiling/wall

Specifications

81 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Remote viewingYes
CertificationCE, CE LVD, FCC, C-Tick

Design

Form factorCovert
Mounting typeCeiling/wall
Product colourBlack, White

Camera

Minimum illumination0.2 lx
Lens viewing angle, horizontal84°
Lens viewing angle, vertical44°
Lens viewing angle, diagonal100°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Maximum aperture number2
Fixed focal length2.8 mm

Video

Maximum resolution1280 x 720 pixels
Total megapixels1 MP
Video formats supportedH.264, M-JPEG, MPEG4
Video compression formatsH.264, M-JPEG, MPEG4
Supported graphics resolutions640 x 360, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720)
Supported video modes360p, 480p, 720p
Frame rate30 fps
Full HDNo
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Text caption overlayYes
Time stamp overlayYes

Audio

Audio system1-way
Audio system full duplexNo
Audio formats supportedG.711
Voice codecsG.711

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP / RTSP/ RTCP, QoS / CoS, Multicast, ONVIF compliant, Bonjour, SNMP
Cabling technology10/100Base-T(X)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

Password protection typeSupervisor, User
Alert notification typeE-mail
HTTPS encryptionYes
IP address filteringYes
Motion sensorYes
Security algorithmsHTTPS, SNMP

Management features

Reset buttonYes

Power

Power source typePoE
Power consumption (max)5.3 W
DC output voltage12
DC output current0.1 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Width24.9 mm
Depth21.3 mm
Height35.8 mm
Weight345.8642 g

Packaging data

Package width94 mm
Package depth78.2 mm
Package height37.1 mm

Packaging content

Number of cameras1
Mounting kitYes
Mounting brackets includedYes
ManualYes
Quick installation guideYes
Resource CDYes
Terminal block includedYes

Technical details

Audio input1
Video out1

Other features

Audio output1
Browser supportedInternet Explorer 8, Firefox 12 or Safari 6
