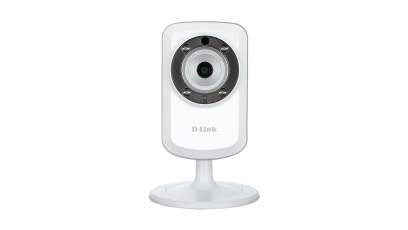

D-Link Day/Night Cloud Camera

Model Day/Night Cloud CameraPart no. DCS-933L/EEAN 790069389184

95 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight96.2 g
ColourWhite
Form factorCube
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 96.2 g
Colour: White
Form factor: Cube
Minimum illumination: 0 lx

Brand: D-Link
Category: Security Camera
Model: Day/Night Cloud Camera
Part number: DCS-933L/E
EAN / UPC: 790069389184, 7900693891844
Also known as: D-Link Day/Night Cloud Camera Cube IP security camera Indoor 640 x 480 pixels Desk

Specifications

95 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	No
Day/night mode	Yes
Plug and Play	Yes

Design

Specification	Value
Form factor	Cube
Mounting type	Desk
Product colour	White
Housing material	Plastic

Camera

Specification	Value
Minimum illumination	0 lx
Field of view (FOV) angle	54.9°
Lens viewing angle, horizontal	45.3°
Lens viewing angle, vertical	34.5°
Camera shutter type	Electronic
Camera shutter speed	1/15 - 1/15000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 5 mm (1 / 5")

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	0x
Digital zoom	4x
Fixed focal length	3.15 mm

Night vision

Specification	Value
Night vision	Yes
LED type	IR

Video

Specification	Value
Maximum resolution	640 x 480 pixels
Total megapixels	0.3 MP
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	160 x 112, 320 x 240
Frame rate	30 fps

Audio

Specification	Value
Audio system	1-way
Audio system full duplex	No
Audio formats supported	PCM
Built-in microphone	Yes
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP server, PPPoE, UPnP port forwarding, LLTD
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
RS-422 ports	0
RS-485 ports	0
Composite video out	0
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Interface	WLAN

Security

Specification	Value
IP address filtering	Yes
Video motion detection	Yes

Power

Specification	Value
Power consumption (typical)	4 W
DC output voltage	+5V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Minimum system requirements	- Microsoft Windows 7 / Vista / XP - Internet Explorer 7 or higher - standard TCP/IP

Weight & dimensions

Specification	Value
Width	80 mm
Depth	80 mm
Height	115 mm
Weight	96.2 g

Packaging data

Specification	Value
Package width	152 mm
Package depth	160 mm
Package height	95 mm
Package weight	290 g

Packaging content

Specification	Value
Remote control included	No
Mounting kit	Yes
Manual	Yes
AC adapter included	No
User guide	Yes
Bundled software	D-ViewCam

Other features

Specification	Value
Browser supported	Internet Explorer 7
Dimensions (WxDxH)	80 x 80 x 115 mm
F-number (relative aperture)	2.8

Logistics data

Specification	Value
Harmonized System (HS) code	85258900
Master (outer) cases per pallet (air)	120 pc(s)
Master (outer) cases per pallet (sea)	120 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	317.6 kg
Pallet gross weight (sea)	317.6 kg
Pallet gross width	120 cm
Pallet height (air)	2.1 m
Pallet height (sea)	2.1 m
Products per pallet (air)	600 pc(s)
Products per pallet (sea)	600 pc(s)
Shipping (inner) case gross weight	2.5 kg
Shipping (inner) case height	19.6 cm
Shipping (inner) case length	50.9 cm
Shipping (inner) case net weight	1.05 kg
Shipping (inner) case width	17.3 cm
Products per shipping (inner) case	5 pc(s)
