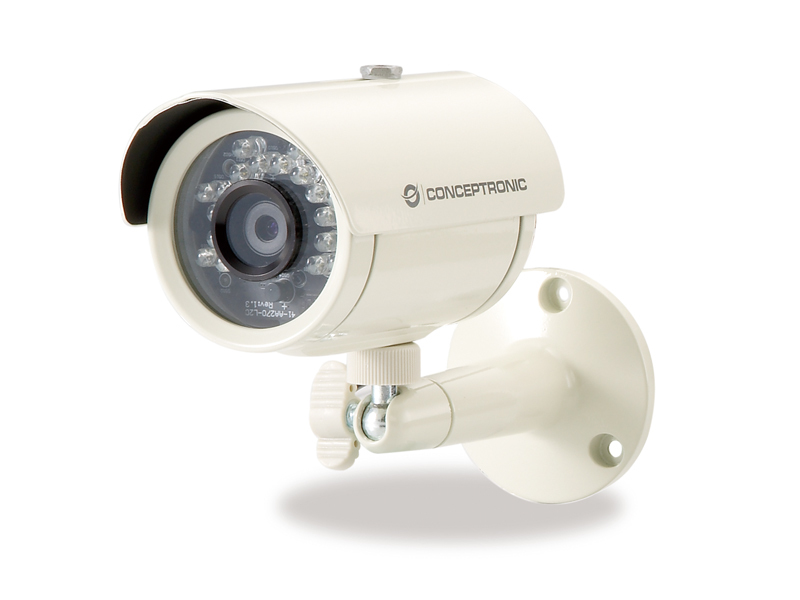

2-Megapixel Day/Night PoE Bullet Outdoor Network Camera
3.6mm
Model CPOECAMB36EAN 4015867188378
54 specifications
- ConnectivityWired
- TypeIP security camera
- Weight420 g
- ColourWhite
- Form factorBullet
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 420 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Brand
- Conceptronic
- Category
- Security Camera
- Model
- CPOECAMB36
- Part number
- CPOECAMB36
- EAN / UPC
- 4015867188378
- Also known as
- Conceptronic 2-Megapixel Day/Night PoE Bullet Outdoor Network Camera, 3.6mm
Specifications
54 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | No |
| Day/night mode | Yes |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
| Country of origin | Taiwan |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 70° |
| Lens viewing angle, vertical | 52.5° |
| Camera shutter speed | 0.06 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
Lens system
| Specification | Value |
|---|---|
| Lens diameter | 3.6 mm |
| Maximum aperture number | 1.8 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 18 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1600 x 1200 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264 |
| Supported graphics resolutions | 640 x 400, 1600 x 1200 (UXGA) |
| Frame rate | 15 fps |
| Full HD | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | DDNS, PPPoE, UPnP, SMTP |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| AC input voltage | 24 V |
| DC output voltage | 5 |
| DC output current | 1 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 61 mm |
| Height | 61 mm |
| Weight | 420 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 155 mm |
| Package height | 75 mm |
| Package weight | 600 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
