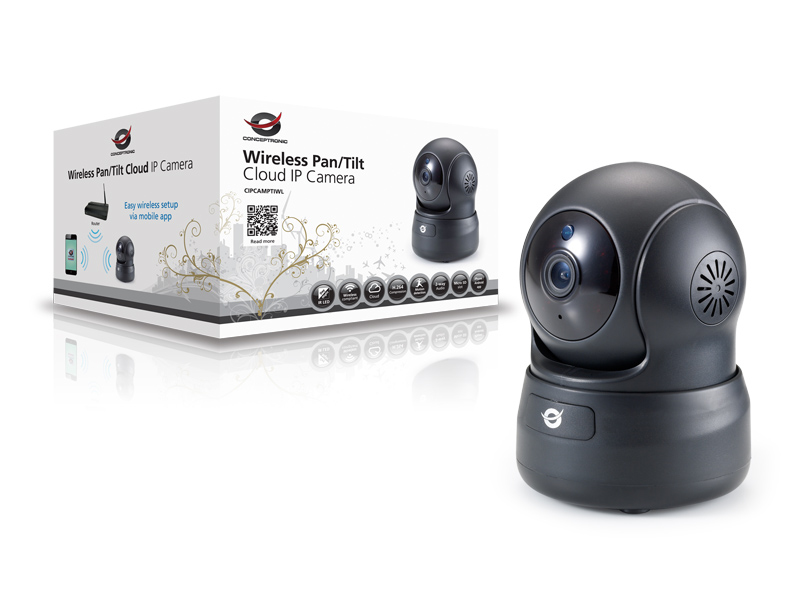

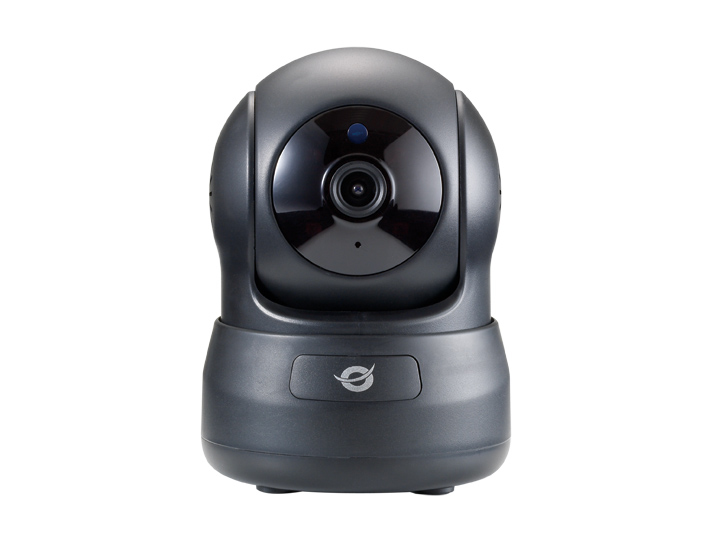

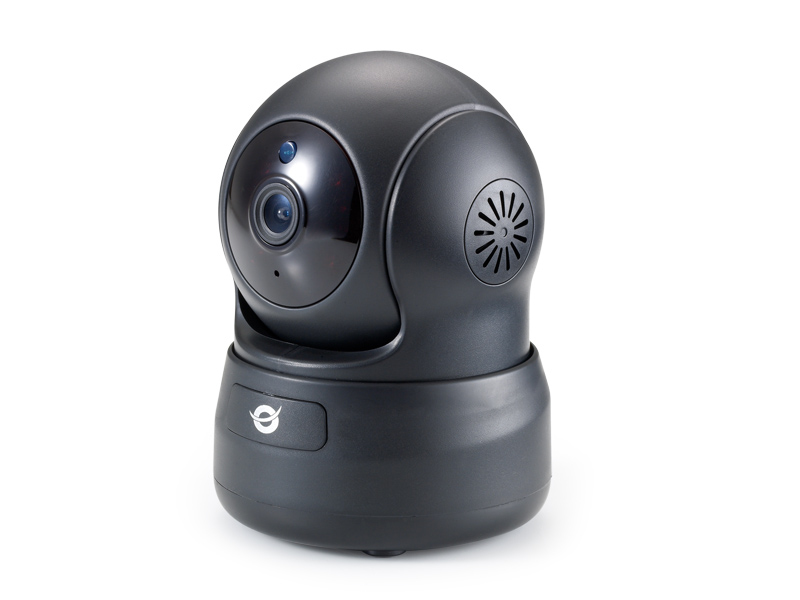

Conceptronic Wireless Pan/Tilt Cloud IP Camera

Model CIPCAMPTIWLEAN 8714909025980

74 specifications

ConnectivityWireless
TypeIP security camera
Weight207 g
ColourBlack
Form factorDome
Field of view (FOV) angle60°

See all specifications

Overview

Connectivity: Wireless
Type: IP security camera
Weight: 207 g
Colour: Black
Form factor: Dome
Field of view (FOV) angle: 60°

Brand: Conceptronic
Category: Security Camera
Model: CIPCAMPTIWL
Part number: CIPCAMPTIWL
EAN / UPC: 8714909025980
Also known as: Conceptronic Wireless Pan/Tilt Cloud IP Camera

Specifications

74 specifications in 21 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
PTZ control	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Operating frequency	2400 MHz

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black
LED indicators	Yes
Country of origin	China

Camera

Specification	Value
Field of view (FOV) angle	60°
Tilt angle range	0 - 120°
Pan range	0 - 355°

Image sensor

Specification	Value
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Maximum aperture number	2
Fixed focal length	3.6 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	5 m
LED type	IR
Number of illumination LEDs	4

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Video compression formats	H.264
Supported graphics resolutions	320 x 180, 640 x 360, 1280 x 720 (HD 720)
Supported video modes	360p, 720p
Frame rate	30 fps

Audio

Specification	Value
Audio system	2-way
Audio formats supported	AAC

Network

Specification	Value
Wi-Fi	Yes
Bluetooth	No
Supported network protocols	DHCP, DDNS, UPnP, NTP, FTP, SMTP, TCP/IP, UDP/IP, UTP, HTTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value

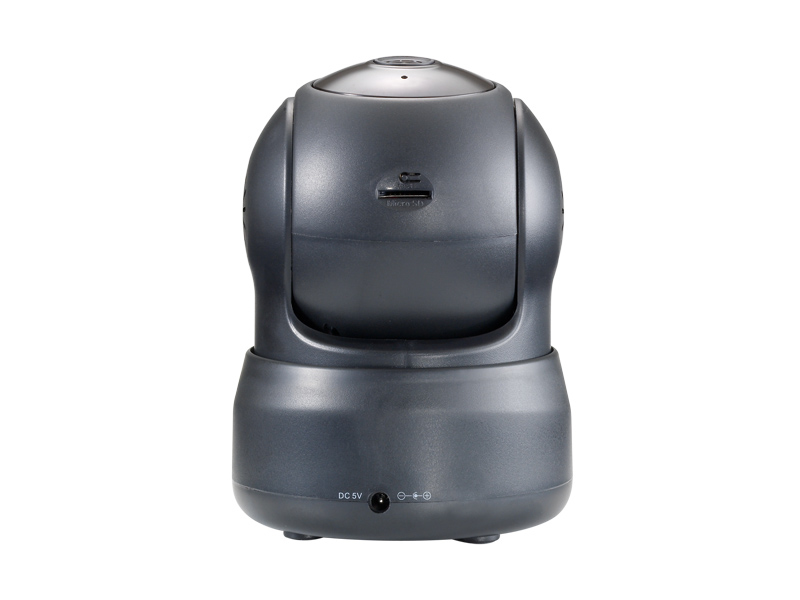

DC-in jack	Yes
Interface	WLAN

Security

Specification	Value
Security algorithms	WPA, WPA2

Management features

Specification	Value
Web-based management	Yes
Remotely operated	Yes

Power

Specification	Value
Power source type	DC
Power consumption (typical)	6 W
DC output voltage	5
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	3 - 90%

System requirements

Specification	Value
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Specification	Value
Width	79.6 mm
Depth	79.6 mm
Height	110.8 mm
Length	79.6 mm
Weight	207 g

Packaging data

Specification	Value
Package width	137 mm
Package depth	105 mm
Package height	160 mm
Package weight	433 g
Package type	Box

Packaging content

Specification	Value
Number of cameras	1

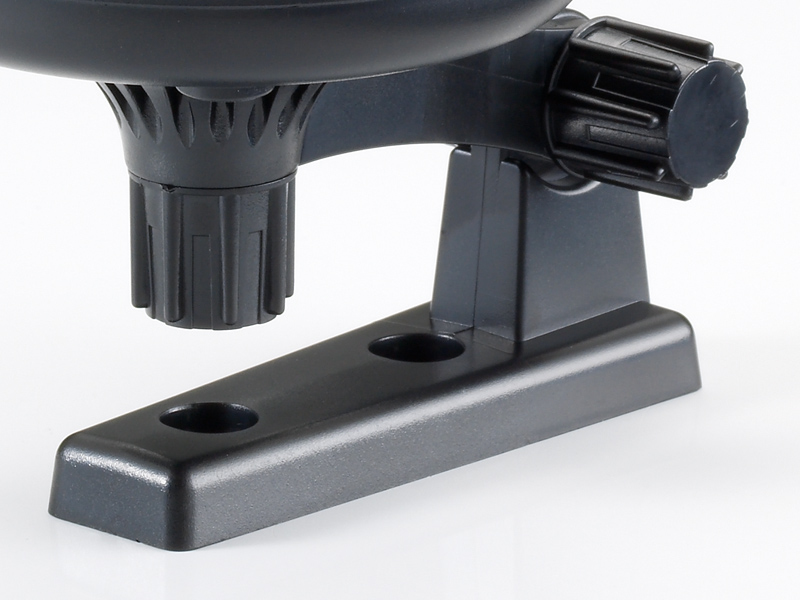

Mounting brackets included	Yes
AC adapter included	Yes
Quick installation guide	Yes
Resource CD	Yes

Technical details

Specification	Value
Audio input	1

Logistics data

Specification	Value
Harmonized System (HS) code	85258900
