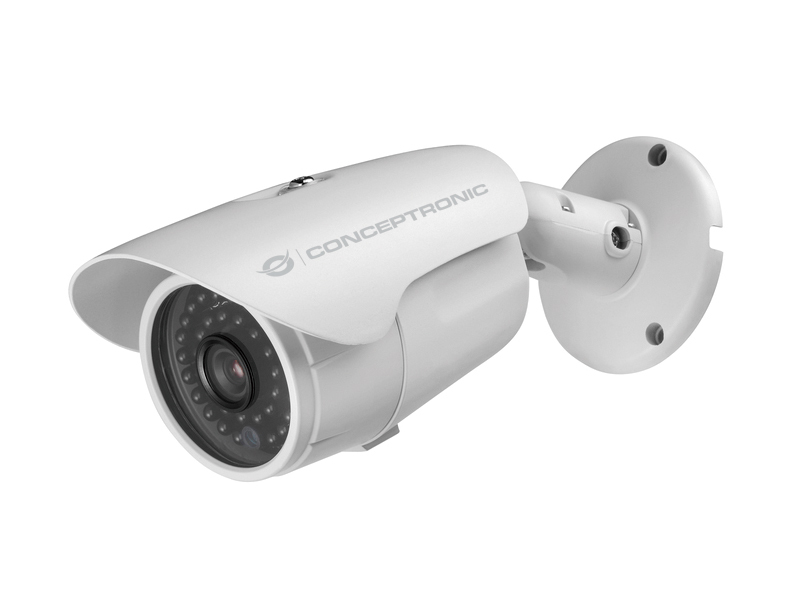

700TVL CCTV Camera
Model CCAM700F36EAN 8714909027571
43 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight360 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 360 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.01 lx
- Brand
- Conceptronic
- Category
- Security Camera
- Model
- CCAM700F36
- Part number
- CCAM700F36
- EAN / UPC
- 8714909027571
- Also known as
- Conceptronic 700TVL CCTV Camera
Specifications
43 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | No |
| Day/night mode | Yes |
| Operating frequency | 27 MHz |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 75.7° |
| Camera shutter speed | 0.02 - 0.00001 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | Super HAD CCD |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Lens diameter | 3.6 mm |
| Maximum aperture number | 1.2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 36 |
Video
| Specification | Value |
|---|---|
| Number of TV lines | 700 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | BNC |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| DC output voltage | 12 |
| DC output current | 0.3 A |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 64 mm |
| Height | 162 mm |
| Weight | 360 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 115 mm |
| Package depth | 96 mm |
| Package height | 175 mm |
| Package weight | 400 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | BNC |
| Quick installation guide | Yes |
