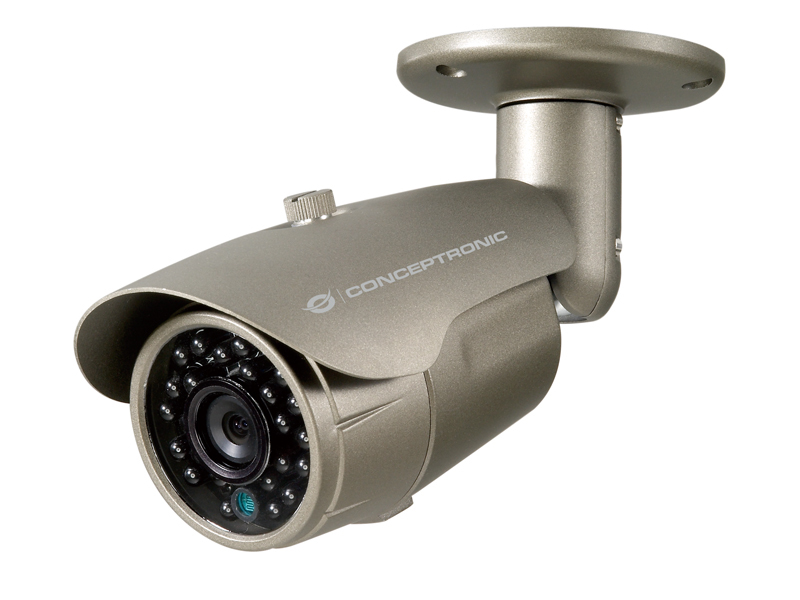

700TVL CCTV Camera
Model CCAM700F24EAN 8714909027656
38 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight260 g
- ColourBronze
- Form factorBullet
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 260 g
- Colour
- Bronze
- Form factor
- Bullet
- Minimum illumination
- 0.01 lx
- Brand
- Conceptronic
- Category
- Security Camera
- Model
- CCAM700F24
- Part number
- CCAM700F24
- EAN / UPC
- 8714909027656
- Also known as
- Conceptronic 700TVL CCTV Camera
Specifications
38 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Bronze |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 75.7° |
| Camera shutter speed | 0.02 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CCD |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Lens diameter | 3.6 mm |
| Maximum aperture number | 0.33 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 25 m |
| LED type | IR |
| Number of illumination LEDs | 24 |
Video
| Specification | Value |
|---|---|
| Number of TV lines | 700 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| DC output voltage | 12 |
| DC output current | 0.3 A |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Height | 64.6 mm |
| Length | 173.6 mm |
| Weight | 260 g |
| Cable length | 18.3 m |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package depth | 210 mm |
| Package height | 120 mm |
| Package weight | 340 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | BNC |
| Quick installation guide | Yes |
