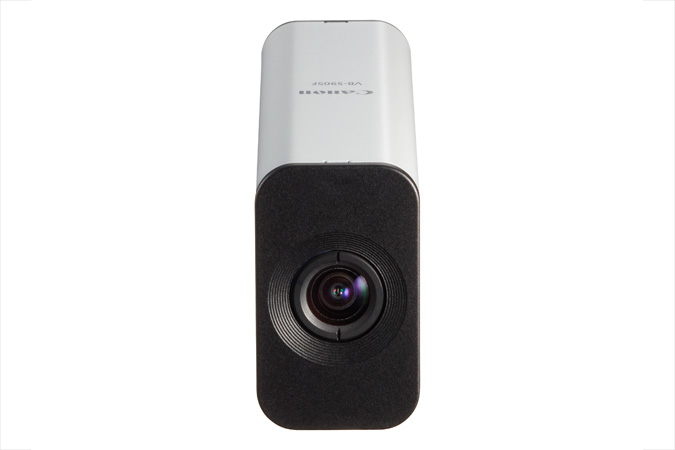

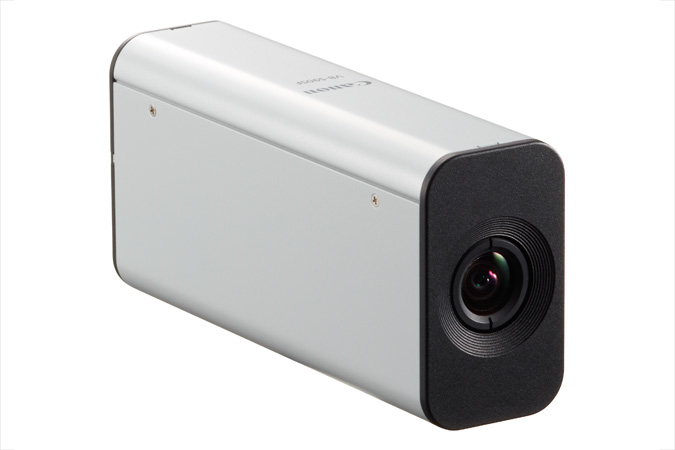

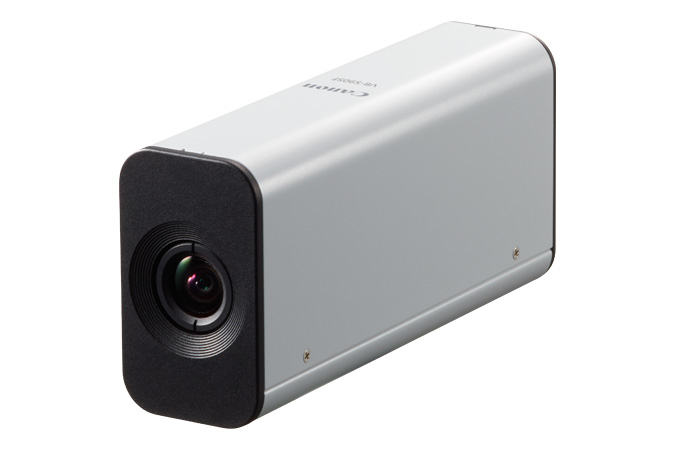

Canon VB-S905F Box IP security camera Indoor

Canon VB-S905F Box IP security camera Indoor

1280 x 960 pixels Ceiling/wall

Model VB-S905FPart no. 9901B001EAN 4053162650213

51 specifications
  • ProcessorCanon DIGIC DV III
  • ConnectivityWired
  • TypeIP security camera
  • Weight180 g
  • ColourBlack, Grey
  • Form factorBox
See all specifications

Overview

Processor
Canon DIGIC DV III
Connectivity
Wired
Type
IP security camera
Weight
180 g
Colour
Black, Grey
Form factor
Box
Brand
Canon
Model
VB-S905F
Part number
9901B001
EAN / UPC
4053162650213, 4549292020229
Also known as
Canon VB-S905F Box IP security camera Indoor 1280 x 960 pixels Ceiling/wall

Specifications

51 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Day/night modeYes
Processor modelCanon DIGIC DV III
Light exposure modesAuto, Manual, Shutter priority AE

Design

Form factorBox
Mounting typeCeiling/wall
Product colourBlack, Grey
LED indicatorsYes

Camera

Minimum illumination0.001 lx
Lens viewing angle, horizontal96°
Lens viewing angle, vertical60.5°
White balanceAuto, Daylight, Fluorescent, Lamp, Manual
Camera shutter speed0.0000625 - 1 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Digital zoom4x
Fixed focal length2.7 mm
Focus adjustment1.6

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video formats supportedH.264, M-JPEG
Supported graphics resolutions320 x 240, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Frame rate30 fps
Full HDNo

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client),DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP(Canon proprietary), ONVIF
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

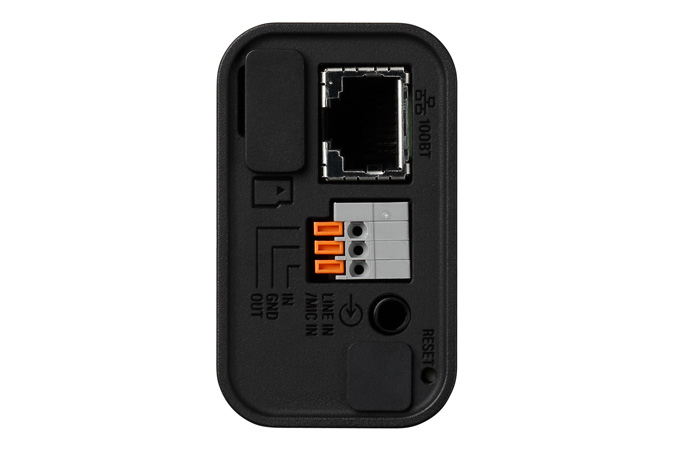

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
InterfaceRJ-45

Security

Password protection typeUser
Security algorithmsEAP-PEAP, EAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS

Management features

Web-based managementYes

Power

Power source typePoE
Power consumption (max)4.3 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width32 mm
Depth114 mm
Height52 mm
Weight180 g

Packaging content

AC adapter includedNo

Other features

Compliance industry standards802.3af PoE
