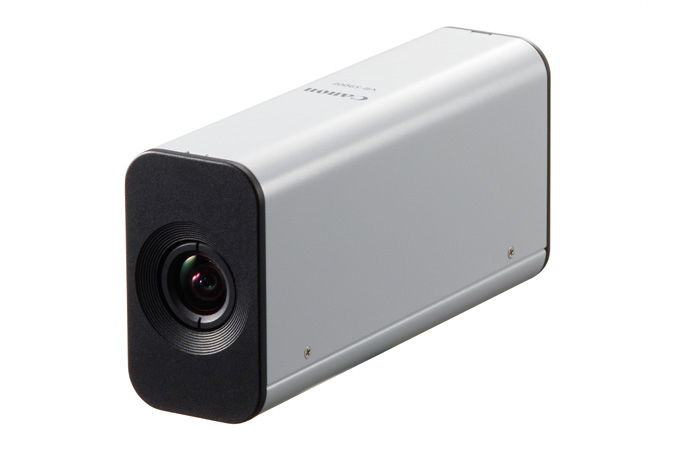

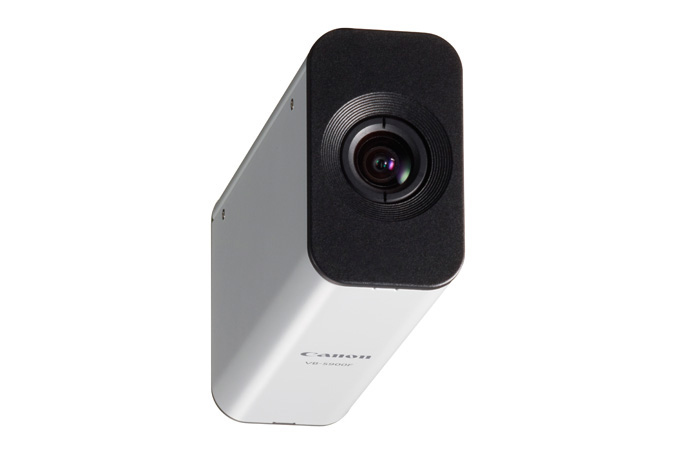

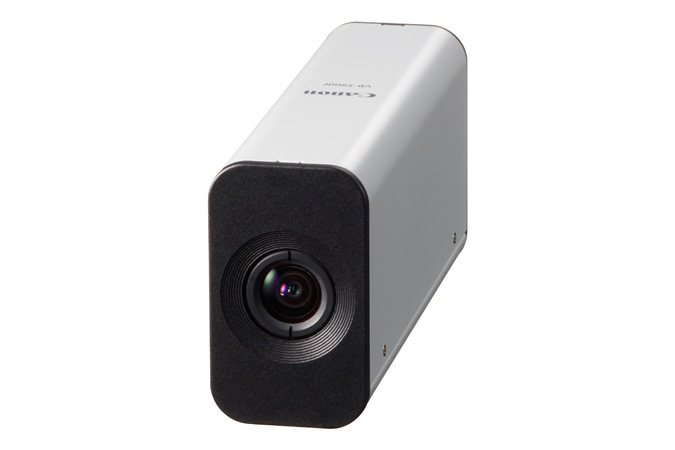

Canon VB-S900F Box IP security camera Indoor
Canon

VB-S900F Box IP security camera Indoor

1920 x 1080 pixels Ceiling/wall

Model VB-S900FPart no. 8821B001EAN 013803232226

62 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight180 g
  • ColourBlack, White
  • Form factorBox
  • Minimum illumination0.2 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
180 g
Colour
Black, White
Form factor
Box
Minimum illumination
0.2 lx
Brand
Canon
Model
VB-S900F
Part number
8821B001
EAN / UPC
013803232226, 138032322262, 4960999993713
Also known as
Canon VB-S900F Box IP security camera Indoor 1920 x 1080 pixels Ceiling/wall

Specifications

62 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Preset pointsYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Light exposure modesAuto, Manual, Shutter priority AE

Design

Form factorBox
Mounting typeCeiling/wall
Product colourBlack, White

Camera

Minimum illumination0.2 lx
Lens viewing angle, horizontal96°
Lens viewing angle, vertical60.5°
White balanceAuto, Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp
Camera shutter speed1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom4x
Maximum aperture number1.6
Fixed focal length2.7 mm

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Video compression formatsH.264
Supported graphics resolutions320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Automatic gain controlYes
Full HDYes
Privacy maskingYes

Audio

Audio formats supportedG.711

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SMTP, DHCPv6, DNS, ICMPv6, POP3, NTP, SMTP, RTSP, WV-HTTP
Cabling technology10/100Base-T(X)
Number of users31 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory5 MB

Ports & interfaces

Microphone inYes
InterfaceRJ-45

Security

Password protection typeUser
Alert notification typeE-mail
Security algorithms802.1x RADIUS, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typePoE
Power consumption (Power over Ethernet (PoE))4.3 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width32 mm
Depth114 mm
Height52 mm
Weight180 g

Packaging content

Number of cameras1

Technical details

Audio input3.5 mm
