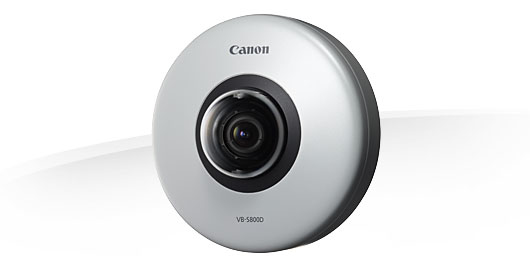

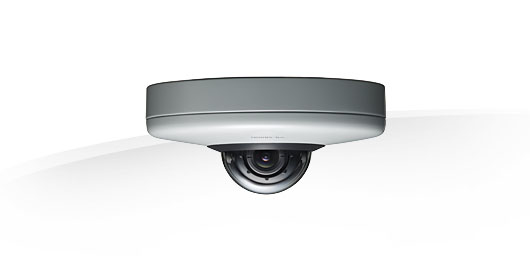

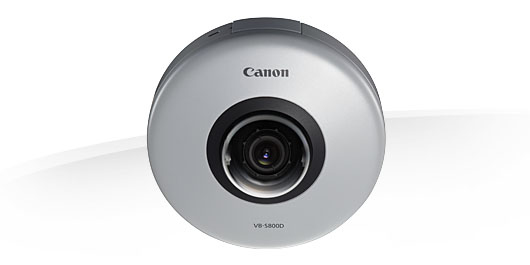

Canon VB-S800D Dome IP security camera Indoor
Canon

VB-S800D Dome IP security camera Indoor

1920 x 1080 pixels Ceiling

Model VB-S800DPart no. 8820B001EAN 013803232219

51 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourGrey
  • Form factorDome
  • Minimum illumination0.007 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
Grey
Form factor
Dome
Minimum illumination
0.007 lx
Brand
Canon
Model
VB-S800D
Part number
8820B001
EAN / UPC
013803232219, 4053162650169, 4960999993706
Also known as
Canon VB-S800D Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

51 specifications in 14 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Day/night modeYes
Light exposure modesAuto, Manual, Shutter priority AE

Design

Form factorDome
Mounting typeCeiling
Product colourGrey

Camera

Minimum illumination0.007 lx
Angle of rotation180°
Lens viewing angle, horizontal95°
Lens viewing angle, vertical60°
Tilt angle range-90 - 0°
Pan range-175 - 175°
White balanceAuto, Lamp, Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom4x
Fixed focal length2.7 mm
Focus adjustment1.6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Video formats supportedH.264
Supported graphics resolutions320 x 180, 320 x 240, 480 x 270, 640 x 360, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Supported video modes1080p, 480p, 720p
Full HDYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
USB portNo
InterfaceRJ-45

Security

Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS
Video motion detectionYes

Power

Power source typePoE
Power consumption (max)4.1 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width120 mm
Depth120 mm
Height54 mm
Weight240 g

Other features

Noise detectionYes
