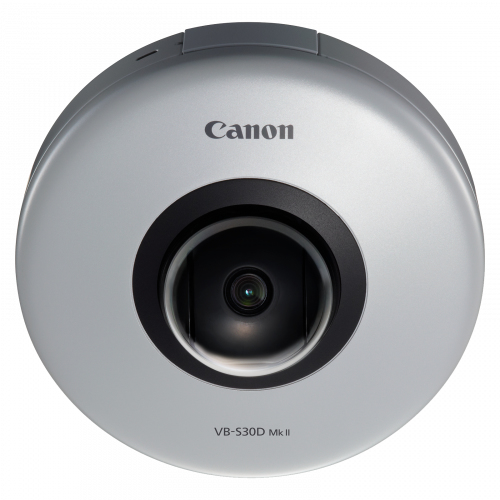

Canon VB-S30D Mk II
Canon

VB-S30D Mk II

Model VB-S30D Mk IIPart no. 2545C001EAN 013803300208

60 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight270 g
  • ColourGrey
  • Form factorDome
  • Minimum illumination0.5 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
270 g
Colour
Grey
Form factor
Dome
Minimum illumination
0.5 lx
Brand
Canon
Model
VB-S30D Mk II
Part number
2545C001
EAN / UPC
013803300208
Also known as
Canon VB-S30D Mk II Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

60 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Preset pointsYes
Day/night modeYes
Languages supportSimplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Russian, Thai, Turkish
Light exposure modesAuto, Manual, Shutter priority AE
CertificationEN 55032 B, FCC 15 B B, ICES-003 B, VCCI B, RCM AS / NZS EN 55032 B, CNS 13438 B, KN22 B, EN 55024, KN 24, EN 50581, IEC / UL / EN 60950-1

Design

Form factorDome
Mounting typeCeiling
Product colourGrey

Camera

Minimum illumination0.5 lx
Tilt angle range-90 - 0°
Tilt speed120 °/sec
Pan range-175 - 175°
Pan speed120 °/sec
White balanceAuto, Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp
Camera shutter speed1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4.85 mm (1 / 4.85")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom3.5x
Digital zoom4x
Focal length range2.25 - 7.88 mm
FocusMotorized/Manual
Maximum aperture number2.6
Minimum aperture number1.4
Closest focusing distance0.3 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Video compression formatsH.264, M-JPEG
Supported graphics resolutions320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Bit rate64/128/256/384/512/768/1024/1536/2048/3072/4096/6144/8192/10240/12288/14336/16384 kbps
Privacy maskingYes

Audio

Voice codecsG.711Mu

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Supported network protocolsNTP, SMTP, RTP / RTCP, RTSP, SSL / TLS (MIB 2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP 3, NTP, TCP / IP, UDP, HTTP, FTP, , IPsec, ONVIF, WV-HTTP
Number of users31 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Microphone inYes

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Scene change
Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, IPSec, SSL/TLS

Power

Power source typePoE
Power consumption (max)7.8 W

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Height54 mm
Diameter12 cm
Weight270 g

Packaging content

Number of cameras1
