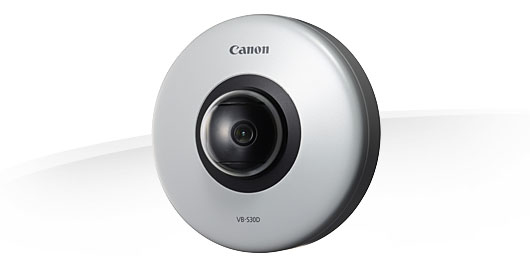

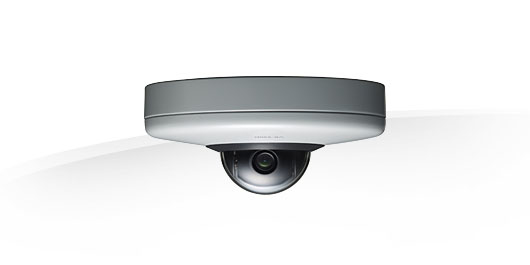

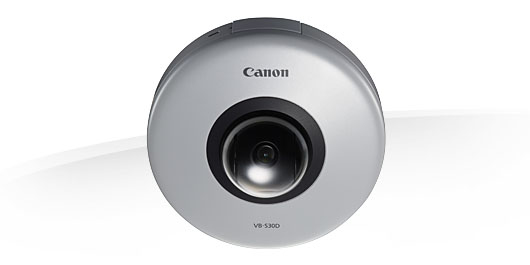

VB-S30D Dome IP security camera Indoor
1920 x 1080 pixels Ceiling
Model VB-S30DPart no. 8818B001EAN 013803232202
52 specifications
- ConnectivityWired
- TypeIP security camera
- Weight270 g
- ColourGrey
- Form factorDome
- Minimum illumination0.015 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 270 g
- Colour
- Grey
- Form factor
- Dome
- Minimum illumination
- 0.015 lx
- Brand
- Canon
- Category
- Security Camera
- Model
- VB-S30D
- Part number
- 8818B001
- EAN / UPC
- 013803232202, 138032322026, 4053162650145, 4960999993683
- Also known as
- Canon VB-S30D Dome IP security camera Indoor 1920 x 1080 pixels Ceiling
Specifications
52 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
| Light exposure modes | Auto, Manual, Shutter priority AE |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Grey |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.015 lx |
| Tilt angle range | -90 - 0° |
| Tilt speed | 120 °/sec |
| Pan range | -175 - 175° |
| Pan speed | 120 °/sec |
| White balance | Auto, Lamp, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4.85 mm (1 / 4.85") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 3.5x |
| Digital zoom | 4x |
| Focal length range | 2.25 - 7.88 mm |
| Focus adjustment | 1.4 - 2.6 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.1 MP |
| Video formats supported | H.264 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 480 x 270, 640 x 360, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA) |
| Supported video modes | 1080p, 480p, 720p |
| Full HD | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF |
| Cabling technology | 10/100Base-T(X) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| USB port | No |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 7.8 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 54 mm |
| Weight | 270 g |
Other features
| Specification | Value |
|---|---|
| Noise detection | No |
