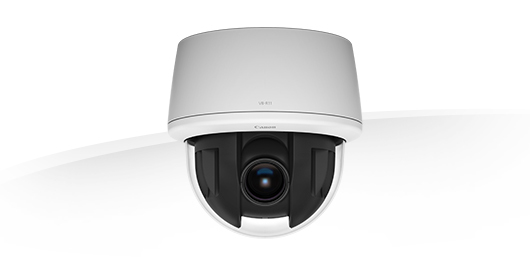

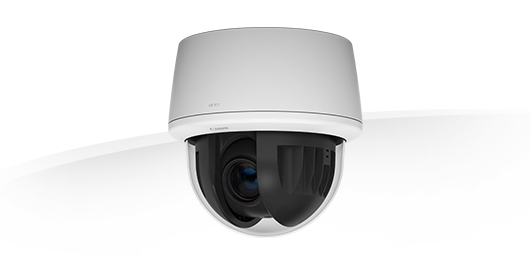

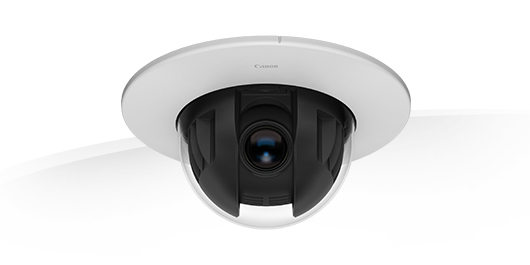

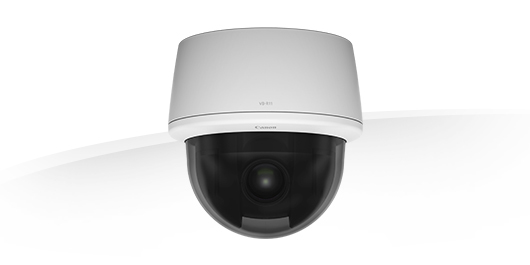

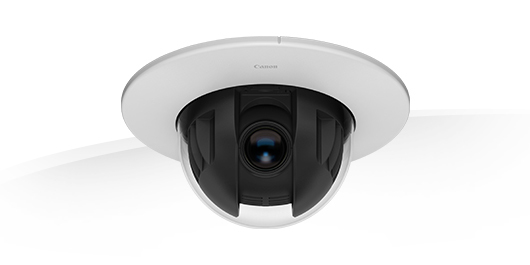

Canon VB-R11 Dome IP security camera Indoor

1280 x 960 pixels

Model VB-R11Part no. 0306C001EAN 013803253771

62 specifications

ProcessorCanon DIGIC DV III
ConnectivityWired
TypeIP security camera
Weight1.99 kg
ColourWhite
Form factorDome

See all specifications

Overview

Processor: Canon DIGIC DV III
Connectivity: Wired
Type: IP security camera
Weight: 1.99 kg
Colour: White
Form factor: Dome

Brand: Canon
Category: Security Camera
Model: VB-R11
Part number: 0306C001
EAN / UPC: 013803253771, 4549292032475
Also known as: Canon VB-R11 Dome IP security camera Indoor 1280 x 960 pixels

Specifications

62 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Day/night mode	Yes
Processor model	Canon DIGIC DV III
Light exposure modes	Auto, Manual, Shutter priority AE

Design

Specification	Value
Form factor	Dome
Product colour	White

Camera

Specification	Value
Minimum illumination	0.002 lx
Lens viewing angle, horizontal	58.4°
Tilt angle range	0 - 180°
Tilt speed	450 °/sec
Pan range	0 - 360°
Pan speed	450 °/sec
White balance	Mercury lamp, Auto, Daylight, Fluorescent, Halogen, Manual
Camera shutter speed	0.0000625 - 1 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	30x
Digital zoom	20x
Focal length range	4.4 - 132 mm
Focus adjustment	1.4 - 4.6

Video

Specification	Value
Maximum resolution	1280 x 960 pixels
Total megapixels	1.3 MP
Video formats supported	H.264
Supported graphics resolutions	320 x 180, 320 x 240, 640 x 360, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Frame rate	30 fps
Full HD	No

Audio

Specification	Value
Audio system	2-way
Audio system full duplex	Yes
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS, ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) IPv6: TCP/IP, UDP,
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
Security algorithms	802.1x RADIUS, EAP, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	199 mm
Depth	199 mm
Height	199 mm
Weight	1.99 kg

Packaging content

Specification	Value
AC adapter included	No
Bundled software	Camera Management Tool RM-Lite Proxy Authentication Admin Tools/Admin Viewer

Other features

Specification	Value
Compliance industry standards	IEEE 802.3af/802.3at
