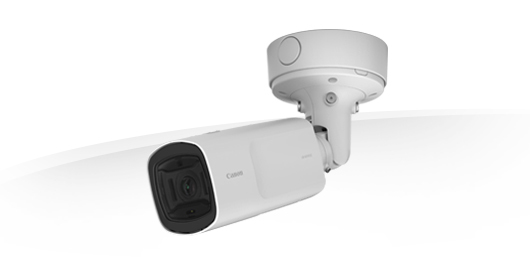

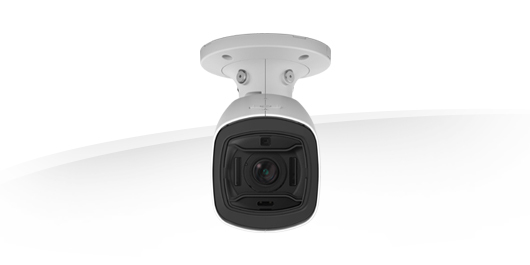

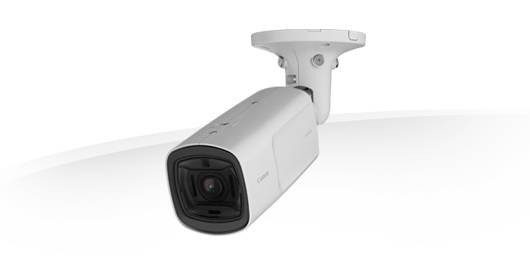

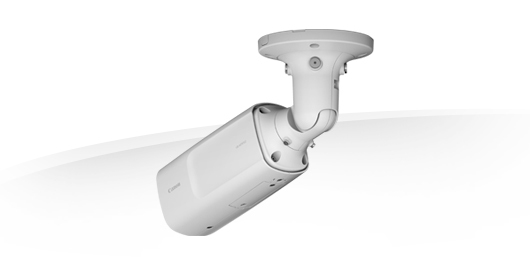

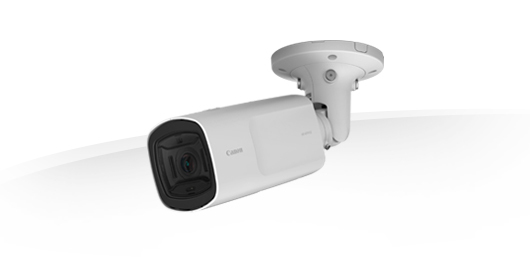

Canon VB-M741LE Bullet IP security camera Outdoor

1280 x 960 pixels Ceiling/wall

Model VB-M741LEPart no. 0312C001EAN 4549292032536

65 specifications

ProcessorCanon DIGIC DV III
ConnectivityWired
TypeIP security camera
Weight2.12 kg
ColourWhite
Form factorBullet

See all specifications

Overview

Processor: Canon DIGIC DV III
Connectivity: Wired
Type: IP security camera
Weight: 2.12 kg
Colour: White
Form factor: Bullet

Brand: Canon
Category: Security Camera
Model: VB-M741LE
Part number: 0312C001
EAN / UPC: 4549292032536
Also known as: Canon VB-M741LE Bullet IP security camera Outdoor 1280 x 960 pixels Ceiling/wall

Specifications

65 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Processor model	Canon DIGIC DV III
Light exposure modes	Auto, Manual, Shutter priority AE

Design

Specification	Value
Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx
Angle of rotation	344°
Lens viewing angle, horizontal	113.4°
Tilt angle range	-3 - 90°
Pan range	-172 - 172°
White balance	Sodium lamp, Auto, Fluorescent, Halogen, Manual
Camera shutter speed	0.0000625 - 1 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	2.4x
Digital zoom	4x
Focal length range	2.55 - 6.12 mm
Focus adjustment	1.2 - 1.8

Night vision

Specification	Value
Night vision	Yes
LED type	IR

Video

Specification	Value
Maximum resolution	1280 x 960 pixels
Total megapixels	1.3 MP
Video formats supported	H.264
Supported graphics resolutions	320 x 180, 320 x 240, 640 x 360, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Frame rate	30 fps
Full HD	No

Audio

Specification	Value
Audio system	2-way
Audio system full duplex	No
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS, ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) IPv6: TCP/IP, UDP,
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
Security algorithms	802.1x RADIUS, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
Power consumption (max)	22.2 W
DC output voltage	+12V
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-50 - 55 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	102 mm
Depth	214 mm
Height	111 mm
Weight	2.12 kg

Packaging content

Specification	Value
Bundled software	Camera Management Tool Camera Angle Setting Tool RM-Lite Proxy Authentication Admin Tools/Admin Viewer

Other features

Specification	Value
Compliance industry standards	IEEE802.3at PoE+

Technical details

Specification	Value
Power source	AC, DC, PoE
