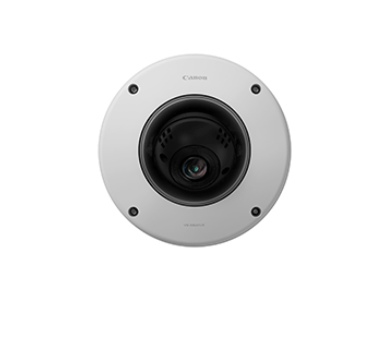

Canon VB-M641VE Dome IP security camera Outdoor

1280 x 960 pixels

Model VB-M641VEPart no. 0308C001EAN 4549292032499

64 specifications

ProcessorCanon DIGIC DV III
ConnectivityWired
TypeIP security camera
Weight1.62 kg
ColourWhite
Form factorDome

See all specifications

Overview

Processor: Canon DIGIC DV III
Connectivity: Wired
Type: IP security camera
Weight: 1.62 kg
Colour: White
Form factor: Dome

Brand: Canon
Category: Security Camera
Model: VB-M641VE
Part number: 0308C001
EAN / UPC: 4549292032499
Also known as: Canon VB-M641VE Dome IP security camera Outdoor 1280 x 960 pixels

Specifications

64 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Processor model	Canon DIGIC DV III
Light exposure modes	Auto, Manual, Shutter priority AE

Design

Specification	Value
Form factor	Dome
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0.001 lx
Angle of rotation	350°
Lens viewing angle, horizontal	111.5°
Lens viewing angle, vertical	60.5°
Tilt angle range	-75 - 75°
Tilt speed	20.7 °/sec
Pan range	-175 - 175°
Pan speed	20.1 °/sec
White balance	Auto, Daylight, Fluorescent, Halogen, Manual
Camera shutter speed	0.0000625 - 1 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	2.4x
Digital zoom	4x
Focal length range	2.55 - 6.12 mm
Focus adjustment	1.2 - 1.8

Video

Specification	Value
Maximum resolution	1280 x 960 pixels
Total megapixels	1.3 MP
Video formats supported	H.264
Supported graphics resolutions	320 x 180, 320 x 240, 640 x 360, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Frame rate	30 fps
Full HD	No

Audio

Specification	Value
Audio system	2-way
Audio system full duplex	Yes
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Supported network protocols	TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS,ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
Security algorithms	802.1x RADIUS, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (max)	21.7 W
DC output voltage	+12V
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	180 mm
Depth	180 mm
Height	131 mm
Weight	1.62 kg

Packaging content

Specification	Value
AC adapter included	No

Other features

Specification	Value
Compliance industry standards	IEEE802.3at PoE+

Technical details

Specification	Value
Power source	AC, DC, PoE
