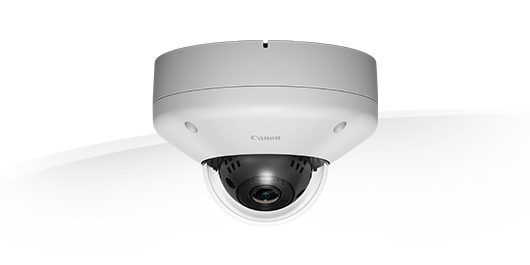

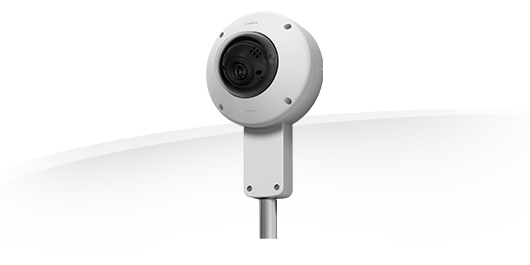

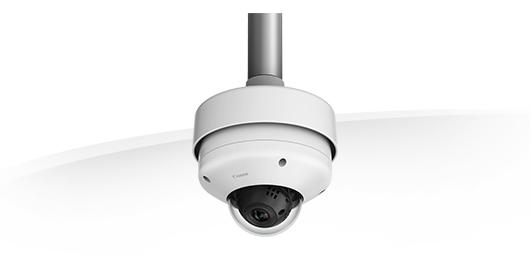

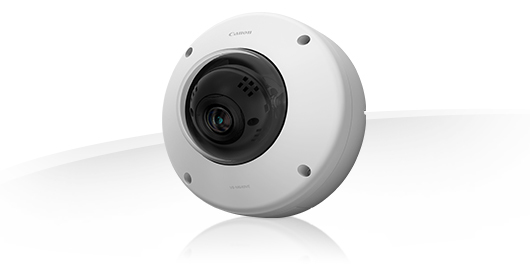

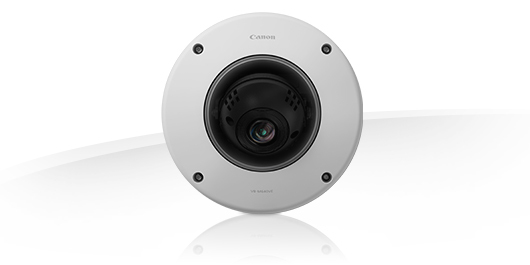

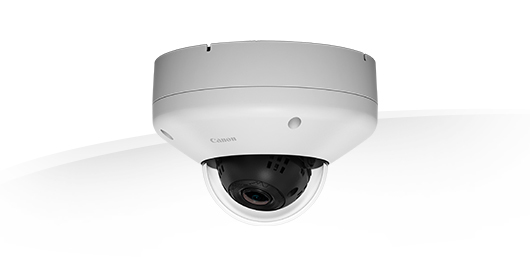

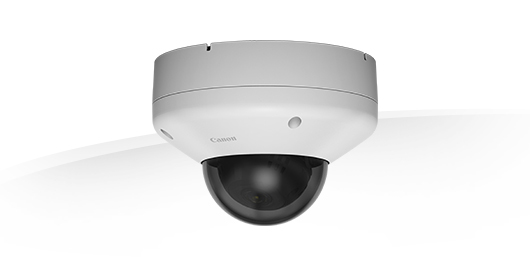

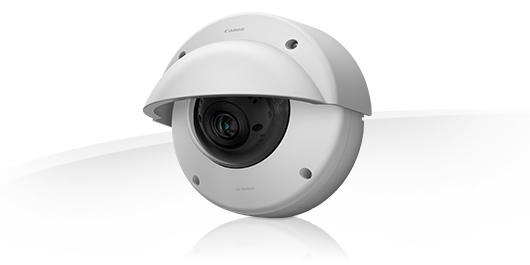

Canon VB-M640VE Dome IP security camera Outdoor

640 x 480 pixels Ceiling/wall

Model VB-M640VEPart no. 0310C001EAN 4549292032512

60 specifications

ProcessorCanon DIGIC DV III
ConnectivityWired
TypeIP security camera
Weight1.57 kg
ColourWhite
Form factorDome

See all specifications

Overview

Processor: Canon DIGIC DV III
Connectivity: Wired
Type: IP security camera
Weight: 1.57 kg
Colour: White
Form factor: Dome

Brand: Canon
Category: Security Camera
Model: VB-M640VE
Part number: 0310C001
EAN / UPC: 4549292032512
Also known as: Canon VB-M640VE Dome IP security camera Outdoor 640 x 480 pixels Ceiling/wall

Specifications

60 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Processor model	Canon DIGIC DV III
Light exposure modes	Auto, Manual, Shutter priority AE

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0.001 lx
Angle of rotation	350°
Lens viewing angle, horizontal	111.5°
Tilt angle range	-75 - 75°
Tilt speed	20.7 °/sec
Pan range	-175 - 175°
Pan speed	20.1 °/sec
White balance	Sodium lamp, Auto, Daylight, Fluorescent, Halogen, Manual
Camera shutter speed	0.0000625 - 1 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	2.4x
Digital zoom	4x
Focal length range	2.55 - 6.12 mm
Focus adjustment	1.2 - 1.8

Video

Specification	Value
Maximum resolution	640 x 480 pixels
Total megapixels	1.3 MP
Video formats supported	H.264
Supported graphics resolutions	512 x 384, 384 x 288, 640 x 360, 640 x 480 (VGA)
Frame rate	30 fps
Full HD	No

Audio

Specification	Value
Built-in microphone	No

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS, ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) IPv6: TCP/IP, UDP,
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
Security algorithms	802.1x RADIUS, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes

Power

Specification	Value
Power source type	PoE
Power consumption (max)	8.9 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Specification	Value
Windows operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	180 mm
Depth	180 mm
Height	131 mm
Weight	1.57 kg

Packaging content

Specification	Value
Bundled software	Camera Management Tool Camera Angle Setting Tool RM-Lite Proxy Authentication Admin Tools/Admin Viewer

Other features

Specification	Value
Compliance industry standards	IEEE802.3af/802.3at PoE
