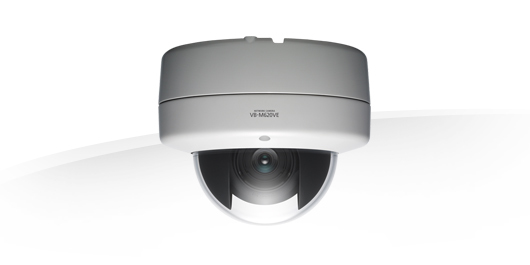

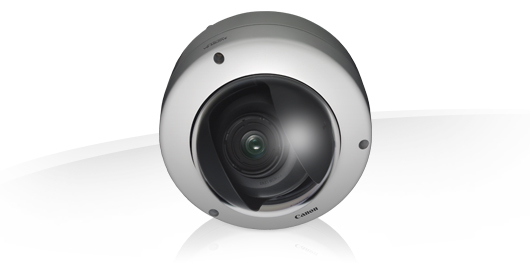

Canon VB-M620VE Dome IP security camera Indoor

Canon VB-M620VE Dome IP security camera Indoor

1280 x 960 pixels

Model VB-M620VEPart no. 9907B001EAN 013803250848

57 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.92 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.3 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.92 kg
Colour
White
Form factor
Dome
Minimum illumination
0.3 lx
Brand
Canon
Model
VB-M620VE
Part number
9907B001
EAN / UPC
013803250848, 4549292025651
Also known as
Canon VB-M620VE Dome IP security camera Indoor 1280 x 960 pixels

Specifications

57 specifications in 14 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
Light exposure modesAuto, Manual, Shutter priority AE

Design

Form factorDome
Product colourWhite
Protection featuresVandal proof
International Protection (IP) codeIP66

Camera

Minimum illumination0.3 lx
Angle of rotation350°
Tilt angle range-75 - 75°
Tilt speed12.6 °/sec
Pan range-175 - 175°
Pan speed17.1 °/sec
White balanceAuto, Fluorescent, Lamp, Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom3x
Digital zoom4x
Focal length range2.8 - 8.4 mm
Focus adjustment1.2 - 2.0

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video formats supportedH.264
Supported graphics resolutions320 x 180, 320 x 240, 640 x 360, 1280 x 720 (HD 720), 640 x 480 (VGA)
Supported video modes480p, 720p
Frame rate30 fps
Full HDNo

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
USB portNo
InterfaceRJ-45

Security

Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS
Video motion detectionYes

Power

Power source typePoE
Power consumption (max)8.4 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)10 - 50 °C
Storage temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 85%

Weight & dimensions

Width180 mm
Depth180 mm
Height147 mm
Weight1.92 kg

Other features

Noise detectionYes
