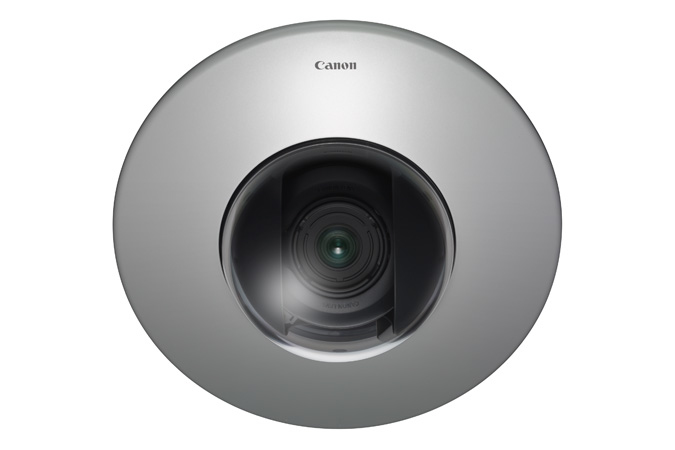

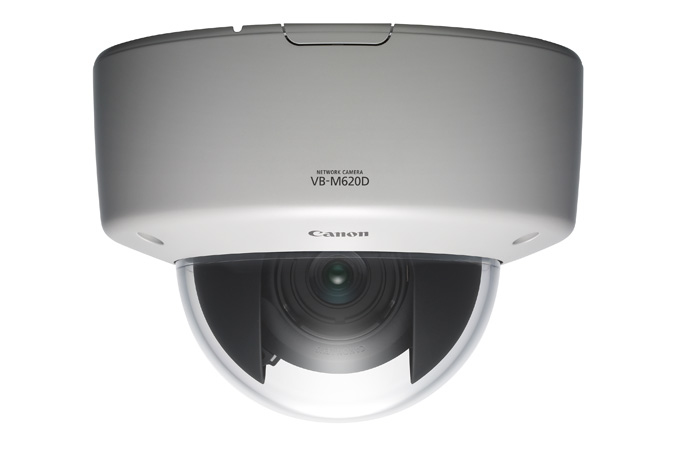

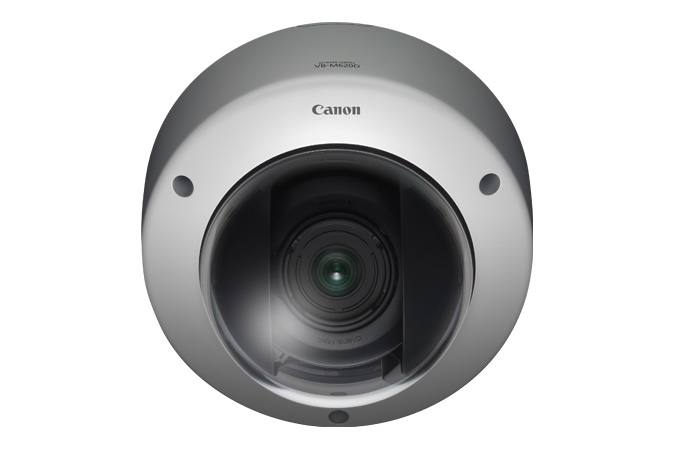

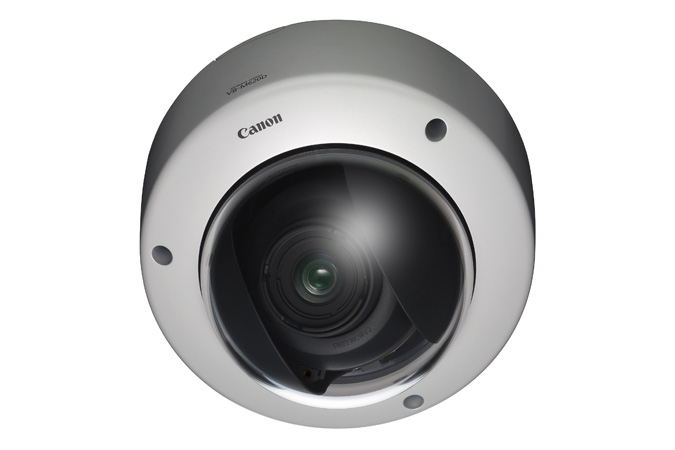

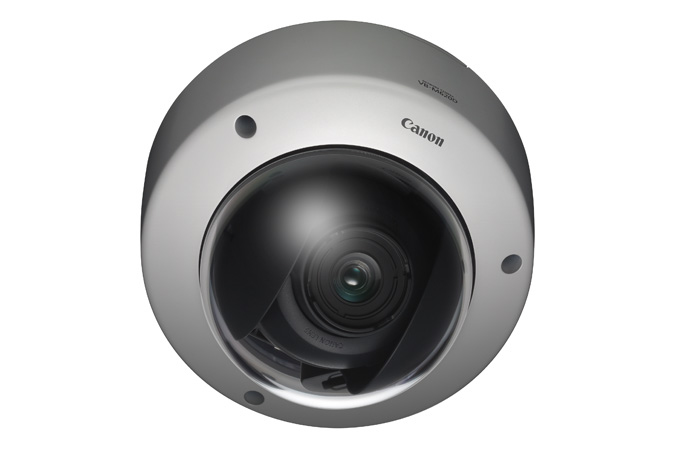

Canon VB-M620D Dome IP security camera Indoor

Canon VB-M620D Dome IP security camera Indoor

1280 x 960 pixels Ceiling/wall

Model VB-M620DPart no. 9908B001EAN 4549292025668

66 specifications
  • ProcessorCanon DIGIC DV III
  • Memory5 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.19 kg
  • ColourGrey
See all specifications

Overview

Processor
Canon DIGIC DV III
Memory
5 MB
Connectivity
Wired
Type
IP security camera
Weight
1.19 kg
Colour
Grey
Brand
Canon
Model
VB-M620D
Part number
9908B001
EAN / UPC
4549292025668
Also known as
Canon VB-M620D Dome IP security camera Indoor 1280 x 960 pixels Ceiling/wall

Specifications

66 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
Processor modelCanon DIGIC DV III
Light exposure modesAperture priority AE, Auto, Manual, Shutter priority AE

Design

Form factorDome
Mounting typeCeiling/wall
Product colourGrey
LED indicatorsYes

Camera

Minimum illumination0.0005 lx
Angle of rotation350°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical60.1°
Tilt angle range-75 - 75°
Tilt speed12.6 °/sec
Pan range-175 - 175°
Pan speed17.1 °/sec
White balanceAuto, Daylight, Fluorescent, Lamp, Manual
Camera shutter speed0.0000625 - 1 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom3x
Digital zoom4x
Focal length range2.8 - 8.4 mm
Focus adjustment1.2 - 2.0

Night vision

Night visionYes

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video formats supportedH.264, M-JPEG
Supported graphics resolutions320 x 240, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Supported video modes720p
Frame rate30 fps
Full HDNo

Audio

Audio system1-way
Audio system full duplexYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Internal memory5 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
USB portNo
InterfaceRJ-45

Security

Password protection typeUser
Security algorithmsEAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typePoE
AC input voltage24 V
Power consumption (max)8.3 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width186 mm
Depth186 mm
Height140 mm
Weight1.19 kg

Other features

Compliance industry standards802.3af PoE
