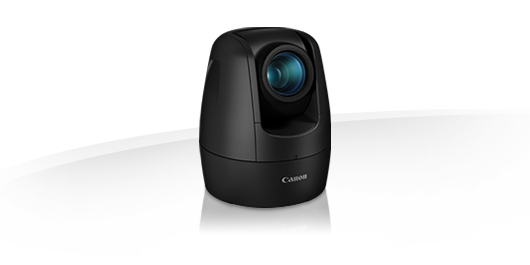

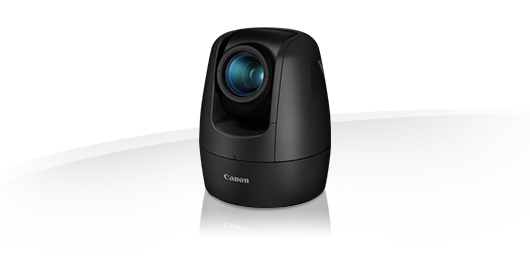

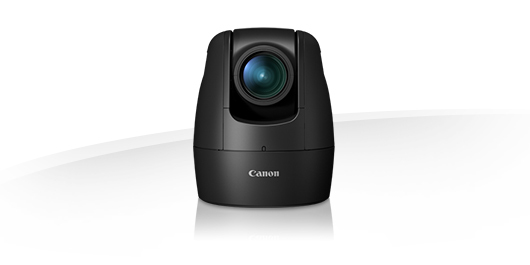

Canon VB-M50B Dome IP security camera Indoor

Canon VB-M50B Dome IP security camera Indoor

1280 x 960 pixels Ceiling

Model VB-M50BPart no. 1064C001EAN 013803275353

77 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.17 kg
  • ColourBlack
  • Form factorDome
  • Minimum illumination0.04 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.17 kg
Colour
Black
Form factor
Dome
Minimum illumination
0.04 lx
Brand
Canon
Model
VB-M50B
Part number
1064C001
EAN / UPC
013803275353, 4549292065756
Also known as
Canon VB-M50B Dome IP security camera Indoor 1280 x 960 pixels Ceiling

Specifications

77 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Preset pointsYes
Day/night modeYes
Languages supportSimplified Chinese, German, English, Spanish, French, Italian, Japanese, Russian, Thai
Light exposure modesAperture priority AE, Auto, Manual, Shutter priority AE
Number of languages10
CertificationEN55032 B, FCC 15 B B, ICES-3/NMB-3 B, VCCI B, C-tick AS/NZS EN55032 B, CNS13438 B, KN32 B, EN55024, KN35, EN50581, IEC/UL/EN 60950-1, EN50130-4

Design

Form factorDome
Mounting typeCeiling
Product colourBlack

Camera

Minimum illumination0.04 lx
Tilt angle range-90 - 15°
Tilt speed300 °/sec
Pan range-174 - 174°
Pan speed300 °/sec
White balanceAuto, Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp
Camera shutter speed1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom5x
Digital zoom20x
Focal length range17.7 - 88.5 mm
Auto focusYes
Maximum aperture number2.4

Night vision

Night visionYes

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video compression formatsH.264
Supported graphics resolutions320 x 180, 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960
Frame rate30 fps
Noise reductionYes
Image stabilizerYes
Automatic gain controlYes
Privacy maskingYes

Audio

Audio system full duplexYes
Voice codecsG.711

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Cabling technology10/100Base-T(X)
Number of users31 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Ports & interfaces

Microphone inYes
Headphone outputs1
InterfaceRJ-45

Security

Password protection typeUser
Alert notification typeE-mail
Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typePoE
AC input voltage100-240 V
Power consumption (max)11.2 W
Power consumption (Power over Ethernet (PoE))9.8 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 90%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Wind
Mobile operating systems supportedAndroid, iOS
Minimum RAM2000 MB

Weight & dimensions

Height157 mm
Diameter12.9 cm
Weight1.17 kg

Packaging content

Number of cameras1

Other features

Noise detectionYes

Logistics data

Harmonized System (HS) code85258900
