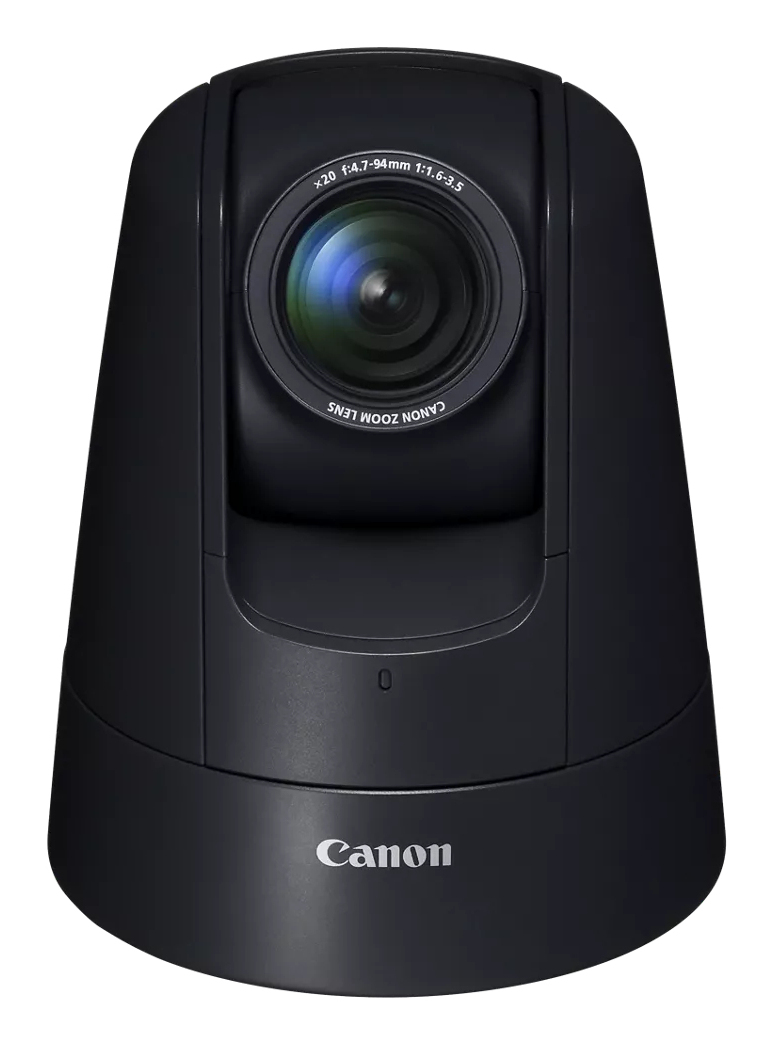

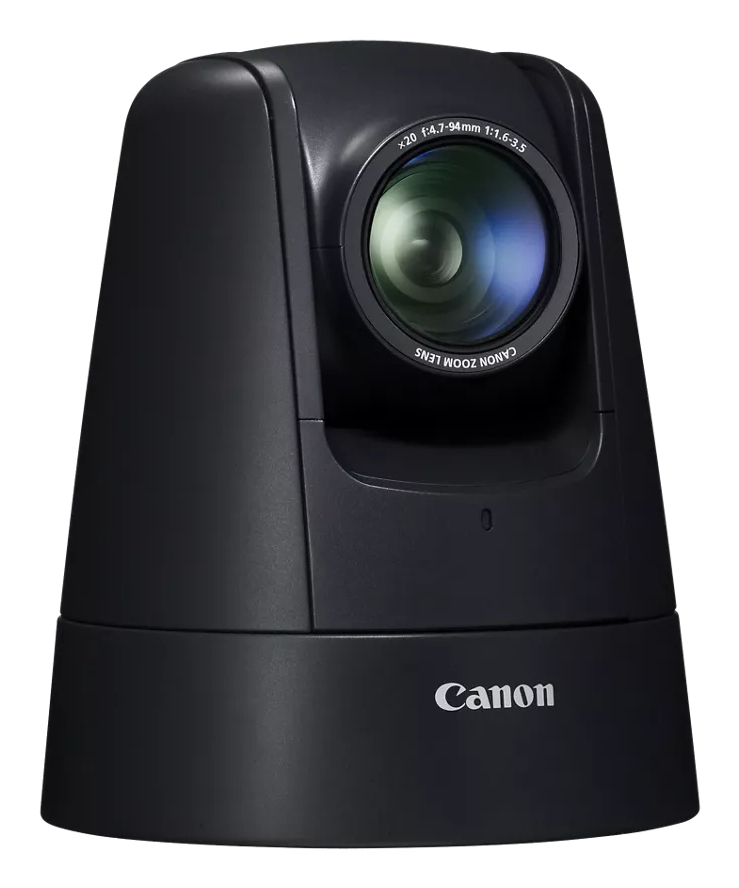

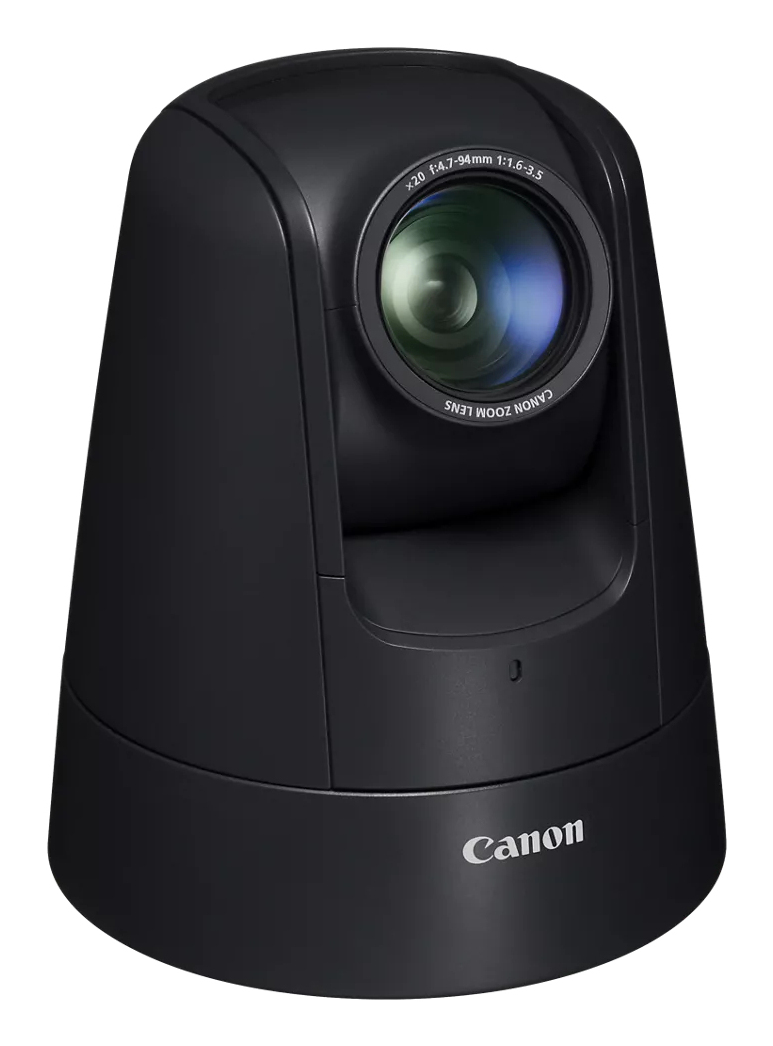

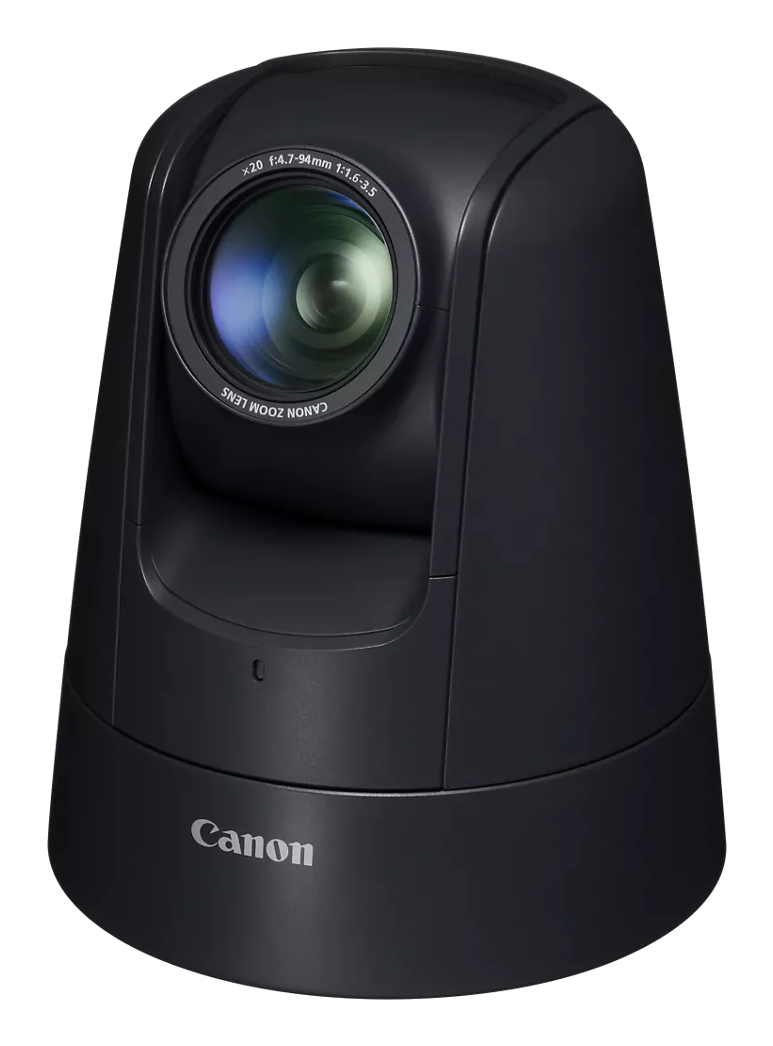

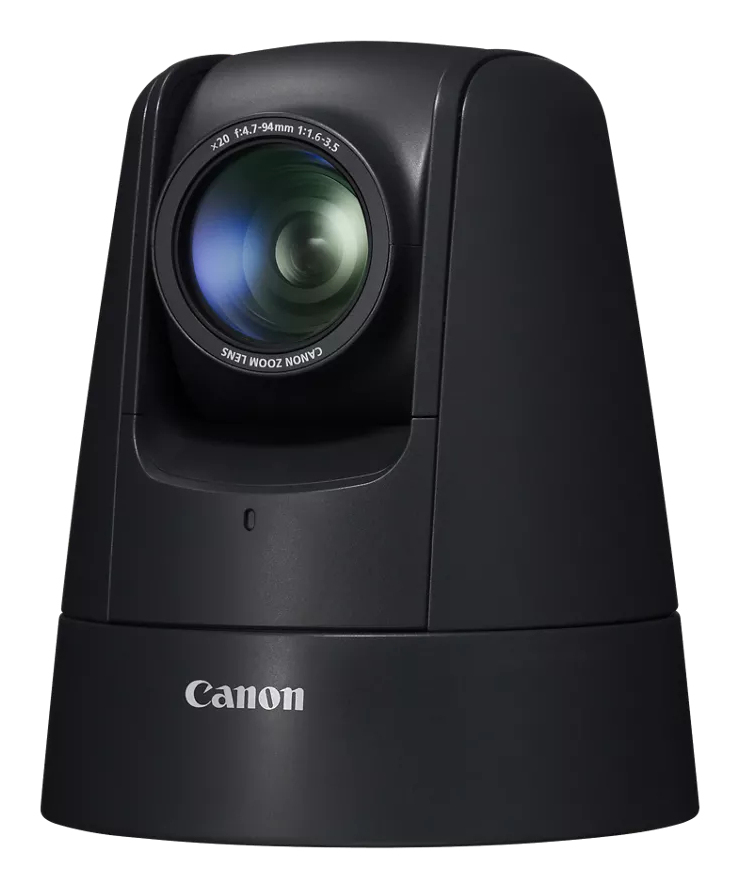

Canon VB-M46B Indoor
Canon

VB-M46B Indoor

1.3MP 20× Optical Zoom PTZ Network Camera

Model VB-M46BPart no. 5716C002EAN 013803350036

76 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.1 kg
  • ColourBlack
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.1 kg
Colour
Black
Form factor
Dome
Camera pan control
Yes
Brand
Canon
Model
VB-M46B
Part number
5716C002
EAN / UPC
013803350036
Also known as
Canon VB-M46B Indoor 1.3MP 20× Optical Zoom PTZ Network Camera

Specifications

76 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
PTZ modesDigital PTZ
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Light exposure modesAuto, Manual, Shutter priority AE, Aperture priority AE
CertificationEN 55032 class A, FCC part15 subpart B class A, ICES-003 class A, VCCI class A, RCM AS/NZS EN55032 class A, EN 55035, IEC EN 63000:2018 IEC/EN 62368-1 3'rd ed., UL 62368-1 3'rd ed.

Design

Form factorDome
Mounting typeCeiling
Product colourBlack
LED indicatorsYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.02 lx
Lens viewing angle, horizontal62.4 - 3.3°
Lens viewing angle, vertical36.3 - 1.9°
Tilt angle range-90 - 10°
Tilt speed150 °/sec
Pan range0 - 340°
Pan speed150 °/sec
White balanceAuto, Daylight, Mercury lamp, Sodium lamp, Halogen, Manual
Camera shutter speed1 - 1/16000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom20x
Digital zoom16x
Focal length range4.7 - 94 mm
Auto focusYes
Fixed focusYes
FocusManual

Night vision

Night visionYes

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video formats supportedH.265, H.264
Frame rate60 fps
Image stabilizerYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Image quality adjustmentAutomatic gain control (AGC)
Privacy maskingYes

Audio

Audio system2-way
Audio system full duplexYes
Audio formats supportedG.711 μ-law, AAC-LC

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsTCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

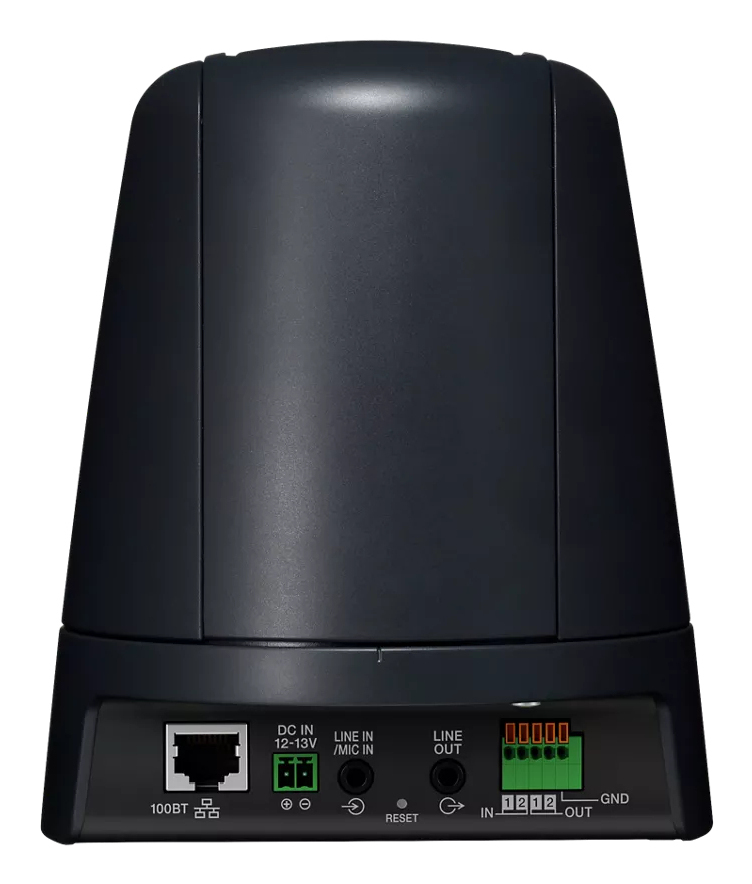

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Terminal block portYes

Security

Alert notification typeE-mail
Intelligent Video Surveillance (IVS) system featuresMoving object, Abandoned object, Face detection, Intrusion
Security algorithmsSSL/TLS, EAP-TLS, EAP-TTLS, EAP-PEAP

Power

Power source typePoE, DC
AC input voltage100 – 240
Power consumption (Power over Ethernet (PoE))9.1 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Height155 mm
Diameter13.2 cm
Weight1.1 kg

Packaging content

Number of cameras1

Technical details

Audio input1
Video resolutions1920 x 1080,1280 x 720,960 x 540,640 x 360,480 x 270,1280 x 960,640 x 480,320 x 240

Other features

Audio output1
