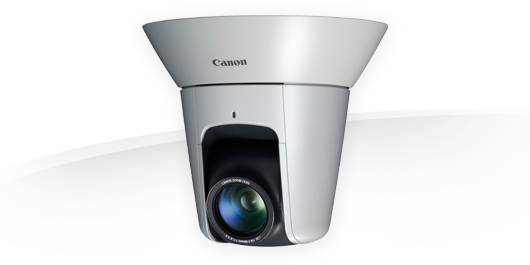

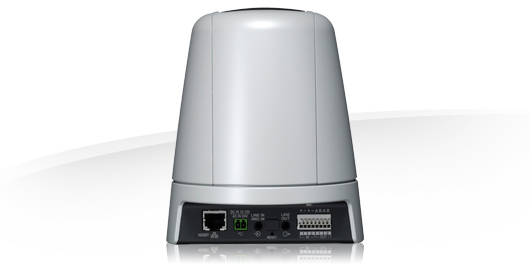

Canon VB-M42 Dome IP security camera Indoor

Canon VB-M42 Dome IP security camera Indoor

1280 x 960 pixels Ceiling

Model VB-M42Part no. 9906B002EAN 4549292025637

55 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.14 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.14 kg
Colour
White
Form factor
Dome
Minimum illumination
0.001 lx
Brand
Canon
Model
VB-M42
Part numbers
9906B002, 9906B001
EAN / UPC
4549292025637, 013803250824, 4053162650275, 4549292025644
Also known as
Canon VB-M42 Dome IP security camera Indoor 1280 x 960 pixels Ceiling

Specifications

55 specifications in 14 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
LED indicatorsYes

Camera

Minimum illumination0.001 lx
Lens viewing angle, horizontal60.4°
Lens viewing angle, vertical35.1°
Tilt angle range-90 - 10°
Tilt speed150 °/sec
Pan range-170 - 170°
Pan speed150 °/sec
White balanceAuto, Fluorescent, Lamp, Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom20x
Digital zoom12x
Focal length range4.7 - 94 mm
Focus adjustment1.6 - 3.5

Video

Maximum resolution1280 x 960 pixels
Total megapixels1.3 MP
Video formats supportedH.264, M-JPEG
Supported graphics resolutions320 x 240, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Supported video modes480p, 720p
Frame rate30 fps
Full HDNo

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
USB portNo
InterfaceRJ-45

Security

Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS
Video motion detectionYes

Power

Power source typePoE
Power consumption (max)9.2 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width132 mm
Depth132 mm
Height155 mm
Weight1.14 kg

Other features

Audio output1
