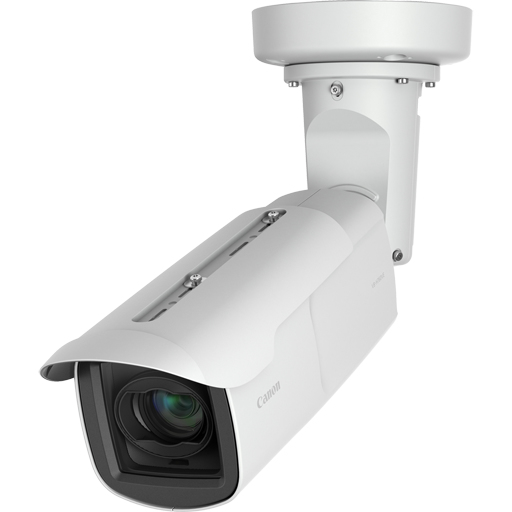

VB-H760VE (H2)
Model VB-H760VE (H2)Part no. 3750C001EAN 4549292149128
44 specifications
- ConnectivityWired
- TypeIP security camera
- Weight3.36 kg
- ColourBlack, White
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 3.36 kg
- Colour
- Black, White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Canon
- Category
- Security Camera
- Model
- VB-H760VE (H2)
- Part number
- 3750C001
- EAN / UPC
- 4549292149128
- Also known as
- Canon VB-H760VE (H2) Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling
Specifications
44 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.003 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 60.4° |
| Lens viewing angle, vertical | 35.1° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 348° |
| Camera shutter speed | 1/16000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Focal length range | 4.7 - 94 mm |
| Maximum aperture number | 3.5 |
| Minimum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.1 MP |
| Video compression formats | H.264 |
| Frame rate | 30 fps |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 252 mm |
| Height | 111 mm |
| Weight | 3.36 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
