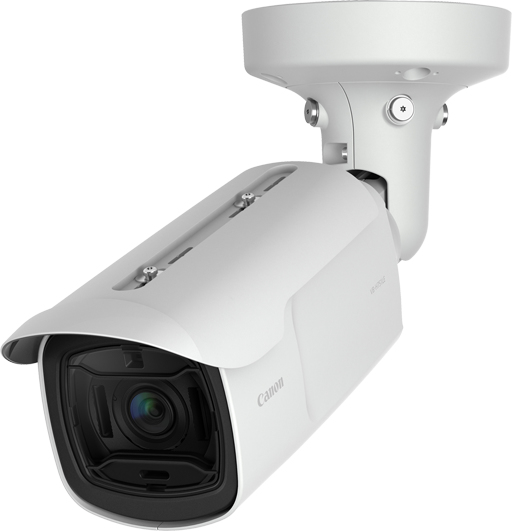

VB-H751LE (H2)
Model VB-H751LE (H2)Part no. 3748C001EAN 4549292149104
53 specifications
- ConnectivityWired
- TypeIP security camera
- Weight2.55 kg
- ColourBlack, White
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 2.55 kg
- Colour
- Black, White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Canon
- Category
- Security Camera
- Model
- VB-H751LE (H2)
- Part number
- 3748C001
- EAN / UPC
- 4549292149104
- Also known as
- Canon VB-H751LE (H2) Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling
Specifications
53 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 344° |
| Lens viewing angle, horizontal | 124.3° |
| Lens viewing angle, vertical | 66.9° |
| Tilt angle range | -3 - 90° |
| Pan range | -217 - 127° |
| Camera shutter speed | 1/16000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 2.4x |
| Digital zoom | 4x |
| Focal length range | 2.55 - 6.12 mm |
| Maximum aperture number | 1.8 |
| Minimum aperture number | 1.2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.1 MP |
| Video compression formats | H.264 |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Image stabilizer | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -50 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 214 mm |
| Height | 111 mm |
| Weight | 2.55 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
