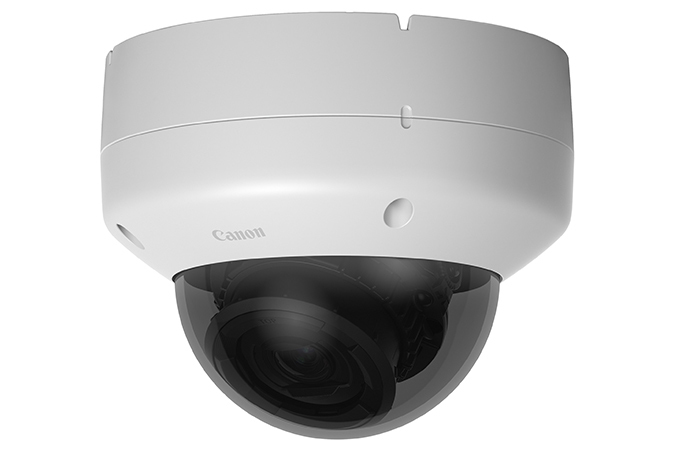

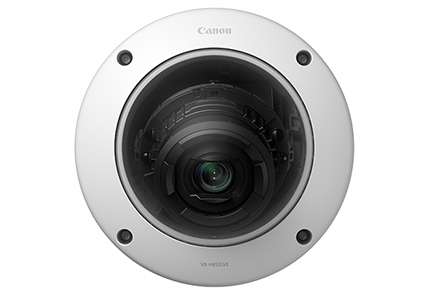

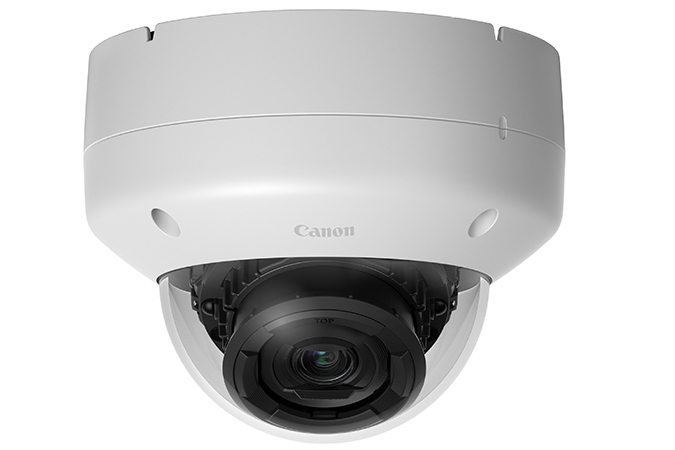

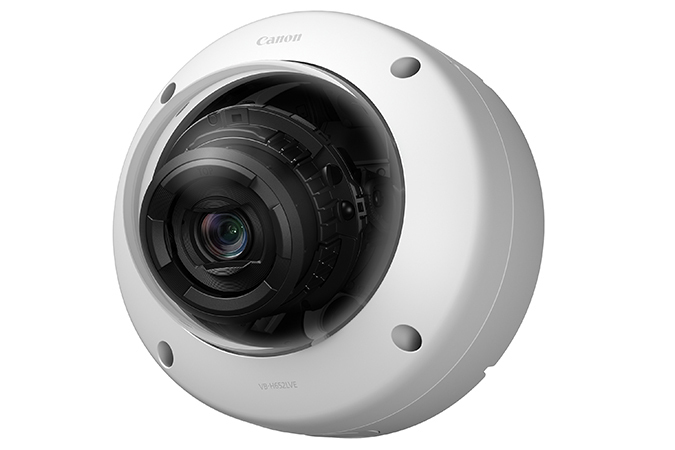

Canon VB-H652LVE Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model VB-H652LVEPart no. 1061C001

74 specifications

ProcessorCanon DIGIC DV III
ConnectivityWired
TypeIP security camera
Weight1.85 kg
ColourWhite
Form factorDome

See all specifications

Overview

Processor: Canon DIGIC DV III
Connectivity: Wired
Type: IP security camera
Weight: 1.85 kg
Colour: White
Form factor: Dome

Brand: Canon
Category: Security Camera
Model: VB-H652LVE
Part number: 1061C001
Also known as: Canon VB-H652LVE Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

74 specifications in 16 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Preset points	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Processor model	Canon DIGIC DV III
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66

Camera

Specification	Value
Minimum illumination	0 lx
Angle of rotation	350°
Lens viewing angle, horizontal	122.1°
Lens viewing angle, vertical	65.9°
Tilt angle range	-15 - 75°
Pan range	-180 - 180°
White balance	Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp
Camera shutter speed	1 - 1/16000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	2.4x
Digital zoom	4x
Focal length range	2.55 - 6.12 mm
Auto focus	Yes
Maximum aperture number	1.8

Night vision

Specification	Value
Night vision	Yes
Night vision distance	20 m
LED type	IR

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2.1 MP
Video compression formats	H.264
Supported graphics resolutions	320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate	30 fps
Image stabilizer	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio system full duplex	Yes
Voice codecs	G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3at
Supported network protocols	IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Number of users	10 user(s)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Specification	Value
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes

Security

Specification	Value
Password protection type	User
Alert notification type	E-mail, Snapshot alert message
Security algorithms	EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detection	Yes

Power

Specification	Value
Power source type	PoE
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	24.1 W
Power consumption (Power over Ethernet (PoE))	12.4 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	30 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	180 mm
Height	145 mm
Weight	1.85 kg

Packaging content

Specification	Value
Number of cameras	1
Mounting kit	Yes
Manual	Yes
