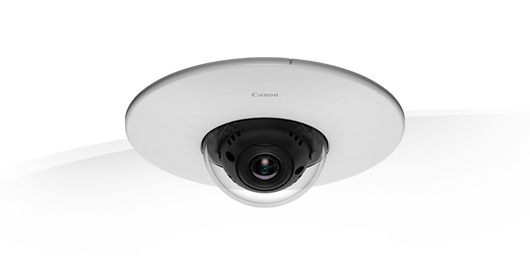

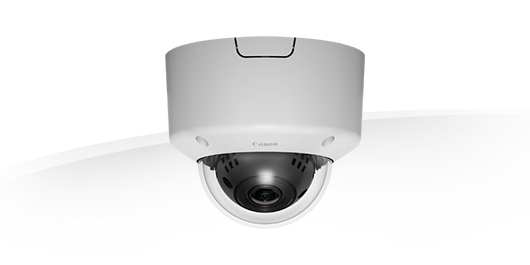

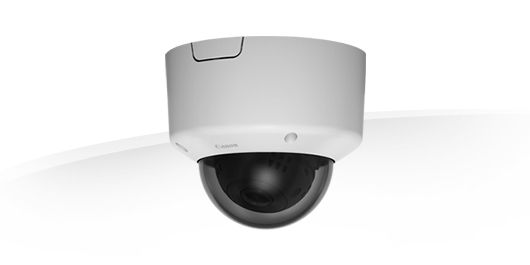

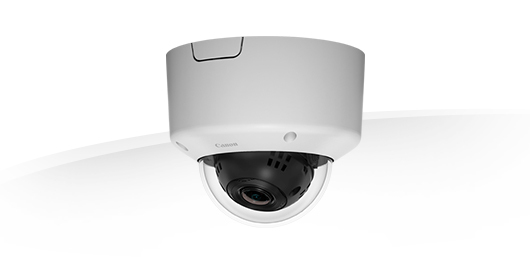

Canon VB-H651V Dome IP security camera Indoor

Canon VB-H651V Dome IP security camera Indoor

1920 x 1080 pixels Ceiling

Model VB-H651VPart no. 1385C001EAN 4549292070620

77 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight890 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.002 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
890 g
Colour
White
Form factor
Dome
Minimum illumination
0.002 lx
Brand
Canon
Model
VB-H651V
Part number
1385C001
EAN / UPC
4549292070620
Also known as
Canon VB-H651V Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

77 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Preset pointsYes
Day/night modeYes
Languages supportSimplified Chinese, German, English, Spanish, French, Italian, Japanese, Russian, Thai, Turkish
Light exposure modesAperture priority AE, Auto, Manual, Shutter priority AE
Number of languages10
CertificationEN55032 B, FCC 15 B B, ICES-3/NMB-3 B, VCCI B, C-tick AS/NZS EN55032 B, CNS13438 B, KN32 B, EN55024, KN35, EN50581, IEC/UL/EN 60950-1, EN50130-4, IEC/UL/EN 62262 IK10

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Protection featuresVandal proof

Camera

Minimum illumination0.002 lx
Angle of rotation350°
Tilt angle range-75 - 75°
Tilt speed20.7 °/sec
Pan range-175 - 175°
Pan speed20.1 °/sec
White balanceAuto, Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp
Camera shutter speed1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom2.4x
Digital zoom4x
Focal length range2.55 - 6.12 mm
Auto focusYes
Maximum aperture number1.8

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Video compression formatsH.264
Supported graphics resolutions320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Image stabilizerYes
Automatic gain controlYes
Full HDYes
Privacy maskingYes

Audio

Audio system full duplexYes
Voice codecsG.711

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Supported network protocolsIPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Cabling technology10/100Base-T(X)
Number of users31 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Microphone inYes
Headphone outputs1
InterfaceRJ-45

Security

Alert notification typeE-mail
Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, SSL/TLS
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typePoE
AC input voltage100-240 V
Power consumption (max)9.9 W
Power consumption (Power over Ethernet (PoE))8.4 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 90%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Wind
Mobile operating systems supportedAndroid, iOS
Minimum RAM2000 MB

Weight & dimensions

Height129 mm
Diameter15 cm
Weight890 g

Packaging content

Number of cameras1

Other features

Noise detectionYes
