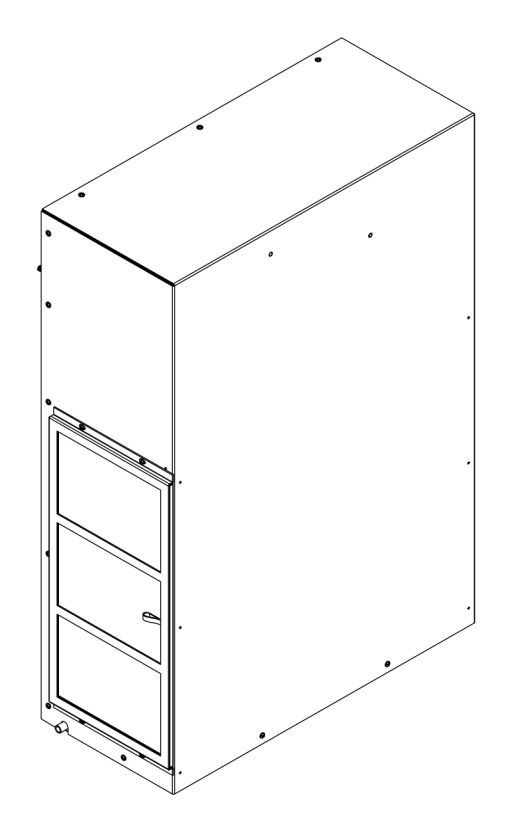

AC Units for N12 Cabinets
Model GL3500VEAN 767041061956
20 specifications
- TypeCooling unit
- Weight36.8 kg
- Housing colourWhite
- Input voltage120 V
- Suitable forIndoor/Outdoor use
- Compliance certificatesUL
Overview
- Type
- Cooling unit
- Weight
- 36.8 kg
- Housing colour
- White
- Input voltage
- 120 V
- Suitable for
- Indoor/Outdoor use
- Compliance certificates
- UL
- Brand
- Vertiv
- Category
- Rack Cooling Equipment
- Model
- GL3500V
- Part number
- GL3500V
- EAN / UPC
- 767041061956
- Also known as
- Vertiv AC Units for N12 Cabinets
Specifications
20 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Housing colour | White |
| Housing material | Steel |
| Cooling capacity in watts (max) | 1026 W |
| Built-in display | No |
| Display type | Not applicable |
| Audible alarm(s) | Yes |
| Compatibility | NEMA 12K ‘SA’ Cabinets |
Power
| Specification | Value |
|---|---|
| Input voltage | 120 V |
| Input frequency | 60 Hz |
| Current | 9.3 A |
Features
| Specification | Value |
|---|---|
| Suitable for | Indoor/Outdoor use |
| Cooling capacity | 3500 BTU/h |
| Easy to install | Yes |
| Type | Cooling unit |
| Programmable temperature | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | UL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 488.9 mm |
| Depth | 162.1 mm |
| Height | 723.9 mm |
| Weight | 36.8 kg |
