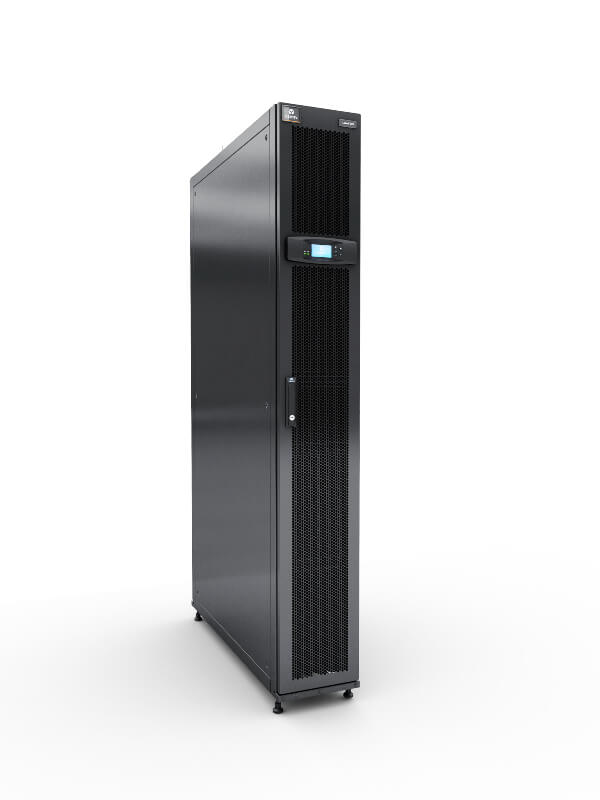

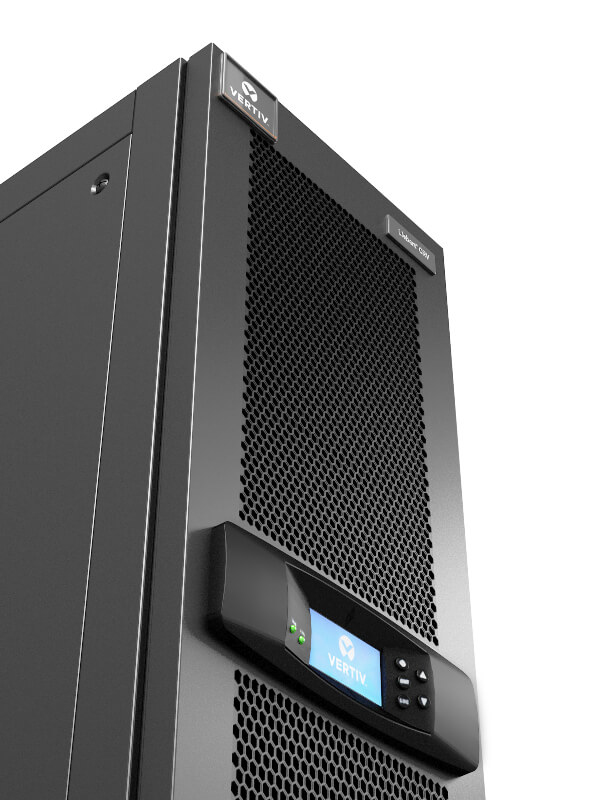

Liebert Chilled Water CR030 - Bottom Connections
Model CR030Part no. 841042
25 specifications
- Weight188 kg
- Housing colourBlack
- Input power1690 W
- Compliance certificatesRoHS
- Width300 mm
Overview
- Weight
- 188 kg
- Housing colour
- Black
- Input power
- 1690 W
- Compliance certificates
- RoHS
- Width
- 300 mm
- Brand
- Vertiv
- Category
- Rack Cooling Equipment
- Model
- CR030
- Part numbers
- 841042, 841039
- Also known as
- Vertiv Liebert Chilled Water CR030 - Bottom Connections
Specifications
25 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Housing colour | Black |
| Airflow | 85000 l/s |
| Cooling capacity in watts (max) | 33000 W |
| Air filter | Yes |
| Fan speed control | Yes |
| Temperature monitoring | Yes |
| Humidifier function | Yes |
| Reheat function | Yes |
| Built-in display | Yes |
| Audible alarm(s) | Yes |
| Certification | CE |
Power
| Specification | Value |
|---|---|
| Input power | 1690 W |
| Input voltage | 230 V |
| Input frequency | 50 Hz |
| Number of input phases | 1 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 1100 mm |
| Height | 2000 mm |
| Weight | 188 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 766 mm |
| Package depth | 1266 mm |
| Package height | 2232 mm |
| Package weight | 256 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85389099 |
