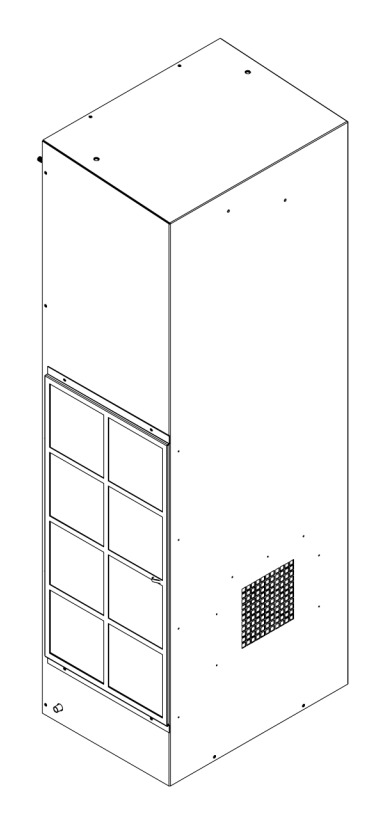

AC Units for N12 Cabinets
Model GL20000VEAN 767041061925
20 specifications
- TypeCooling unit
- Weight90.7 kg
- Housing colourWhite
- Input voltage230 V
- Suitable forIndoor/Outdoor use
- Compliance certificatesUL
Overview
- Type
- Cooling unit
- Weight
- 90.7 kg
- Housing colour
- White
- Input voltage
- 230 V
- Suitable for
- Indoor/Outdoor use
- Compliance certificates
- UL
- Brand
- Vertiv
- Category
- Rack Cooling Equipment
- Model
- GL20000V
- Part number
- GL20000V
- EAN / UPC
- 767041061925
- Also known as
- Vertiv AC Units for N12 Cabinets
Specifications
20 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Housing colour | White |
| Housing material | Steel |
| Cooling capacity in watts (max) | 5865 W |
| Built-in display | No |
| Display type | Not applicable |
| Audible alarm(s) | Yes |
| Compatibility | NEMA 12K ‘SC’ Cabinets |
Power
| Specification | Value |
|---|---|
| Input voltage | 230 V |
| Input frequency | 50 Hz |
| Current | 14.6 A |
Features
| Specification | Value |
|---|---|
| Suitable for | Indoor/Outdoor use |
| Cooling capacity | 20000 BTU/h |
| Easy to install | Yes |
| Type | Cooling unit |
| Programmable temperature | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | UL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 509.5 mm |
| Depth | 363.5 mm |
| Height | 1422.4 mm |
| Weight | 90.7 kg |
