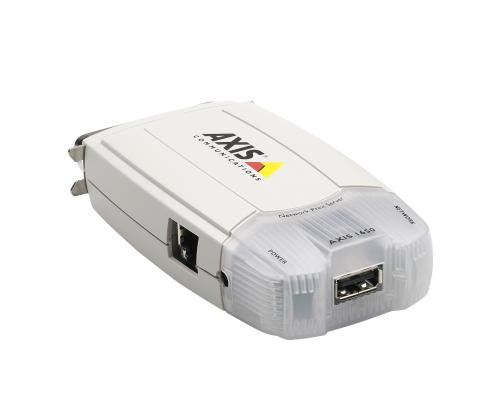

AXIS 1650 PRINTSERVER
Model AXIS 1650 PRINTSERVERPart no. 0214-002/CANON
15 specifications
- ProcessorAXIS Etrax 100LX
- Memory8 MB
- Weight80 g
- Firmware upgradeableYes
- Flash memory2 MB
- Network connection typeEthernet LAN
Overview
- Processor
- AXIS Etrax 100LX
- Memory
- 8 MB
- Weight
- 80 g
- Firmware upgradeable
- Yes
- Flash memory
- 2 MB
- Network connection type
- Ethernet LAN
- Brand
- Canon
- Category
- Print Server
- Model
- AXIS 1650 PRINTSERVER
- Part number
- 0214-002/CANON
- Also known as
- Canon AXIS 1650 PRINTSERVER print server Ethernet LAN
Specifications
15 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Processor
| Specification | Value |
|---|---|
| Processor model | AXIS Etrax 100LX |
Memory
| Specification | Value |
|---|---|
| Flash memory | 2 MB |
| Internal memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Network connection type | Ethernet LAN |
Protocols
| Specification | Value |
|---|---|
| Management protocols | • AXIS IP JumpStarter for IP setting • AXIS CAPT Print Monitor for printer installation, can be used regardless of the printer type• Internal web pages or FTP for installation, configuration, monitoring and firmware upgrading• SNMP-MIB II compliant (RFC 1213)• Canon MIB Ver2.50• Printer MIB (RFC1759 |
Certificates
| Specification | Value |
|---|---|
| Safety | EN 60950 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 80 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 62 x 117 x 29 mm |
| Supported protocols | TCP/IP: LPD, FTP, BOOTP, ARP, RARP, DHCP, ICMP, IGMP, IP, TCP, UDP, HTTP, SLP v1/v2, SNMP v1, RawTCP, DNS, DDNS, WINS, SNT |
| Compatible operating systems | Microsoft Windows: 98, Me, 2000, XP and Windows Server 2003 |
| Printer support | Support for Canon printers and multifunctional products, including support for the host-based printing methods Canon Advanced Printing Technology (CAPT), Canon Advanced Raster Printing System and other printer types, such as Canon BubbleJet |
| I/O ports | • Parallel: 36-pin Centronics connector, high-speed IEEE 1284 compliant with ECP support and throughput of 1 MB/sec • USB: Support for low and full speed. Compatible with USB 2.0 printers |
