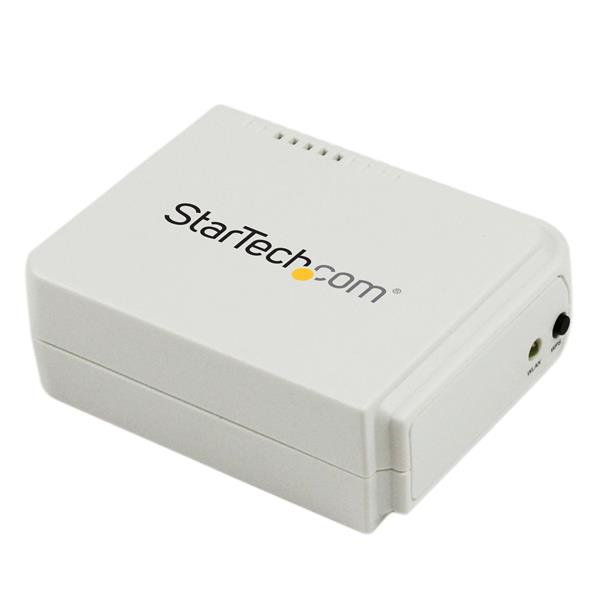

1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - TAA
Model PM1115UWEAN 065030855167
44 specifications
- Weight54 g
- ColourWhite
- InternalNo
- Network connection typeEthernet LAN/Wireless LAN
- Web-based managementYes
- Ethernet LAN (RJ-45) ports1
Overview
- Weight
- 54 g
- Colour
- White
- Internal
- No
- Network connection type
- Ethernet LAN/Wireless LAN
- Web-based management
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- StarTech.com
- Category
- Print Server
- Model
- PM1115UW
- Part number
- PM1115UW
- EAN / UPC
- 065030855167
- Also known as
- StarTech.com 1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - TAA
Specifications
44 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | White |

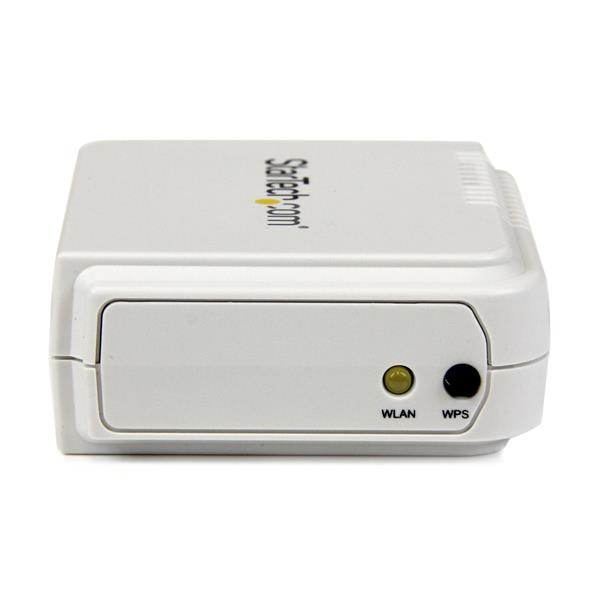

| LED indicators | Status, USB, WLAN |
| DHCP client | Yes |
Network
| Specification | Value |
|---|---|
| Network connection type | Ethernet LAN/Wireless LAN |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi band | Single-band (2.4 GHz) |
| Security algorithms | WEP, WPA, WPA2-PSK |

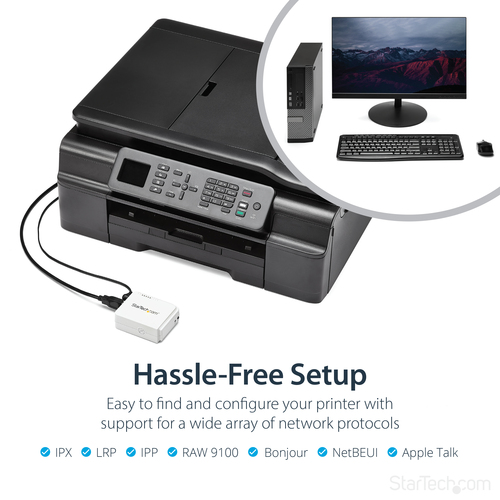

Protocols
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP, IPX, NetBEUI, AppleTalk, SNMP, SMB over IP |
| Web-based management | Yes |

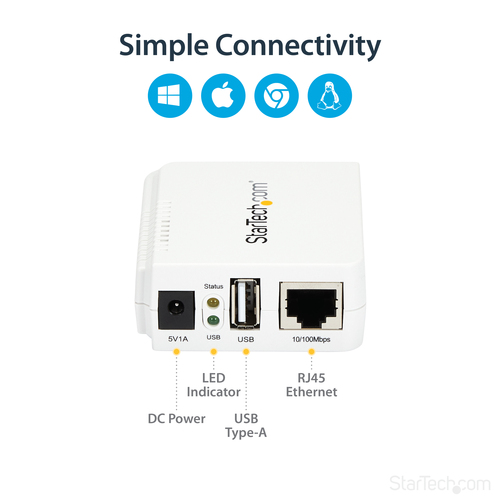

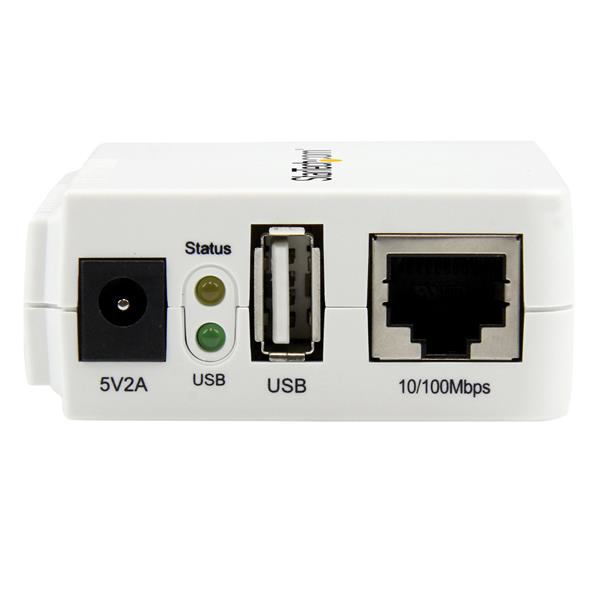

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| USB connector type | USB Type-A |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC adapter output current | 2 A |
| AC adapter output voltage | 5 V |
| Input current | 0.31 A |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS |
| Linux operating systems supported | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 72 mm |
| Height | 25 mm |
| Width | 58 mm |
| Weight | 54 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 229 mm |
| Package depth | 154 mm |
| Package height | 68 mm |
| Package weight | 360 g |

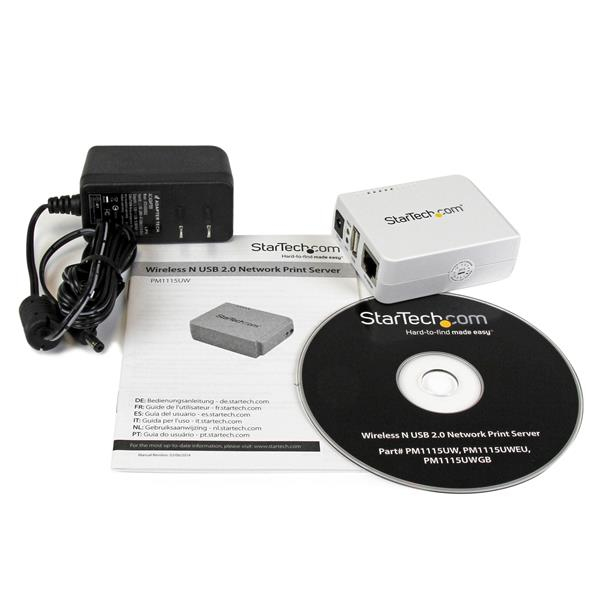

Packaging content
| Specification | Value |
|---|---|
| CD manual | Yes |
| Quick installation guide | Yes |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 70% |
| Storage relative humidity (H-H) | 0 - 70% |
| Storage temperature (T-T) | 0 - 50 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 495 mm |
| Master (outer) case length | 378 mm |
| Master (outer) case height | 354 mm |
| Products per master (outer) case | 20 pc(s) |
