1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - TAA
Model PM1115UWEUEAN 065030855877
43 specifications
- Weight65 g
- ColourWhite
- InternalNo
- Network connection typeEthernet LAN/Wireless LAN
- Supported network protocolsSNMP
- Ethernet LAN (RJ-45) ports1
Overview
- Weight
- 65 g
- Colour
- White
- Internal
- No
- Network connection type
- Ethernet LAN/Wireless LAN
- Supported network protocols
- SNMP
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- StarTech.com
- Category
- Print Server
- Model
- PM1115UWEU
- Part number
- PM1115UWEU
- EAN / UPC
- 065030855877
- Also known as
- StarTech.com 1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - TAA
Specifications
43 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | White |
| LED indicators | Status, USB, LAN |
| DHCP client | Yes |
Network
| Specification | Value |
|---|---|
| Network connection type | Ethernet LAN/Wireless LAN |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Antenna type | Internal |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | SNMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter output current | 1 A |
| AC adapter output voltage | 5 V |
| Input current | 0.3 A |
| Power consumption (typical) | 5 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2016, Windows Server 2012, Windows Server 2019, Windows Server 2022 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 72 mm |
| Height | 25 mm |
| Width | 58 mm |
| Weight | 65 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 151 mm |
| Package depth | 230 mm |
| Package height | 70 mm |
| Package weight | 319 g |

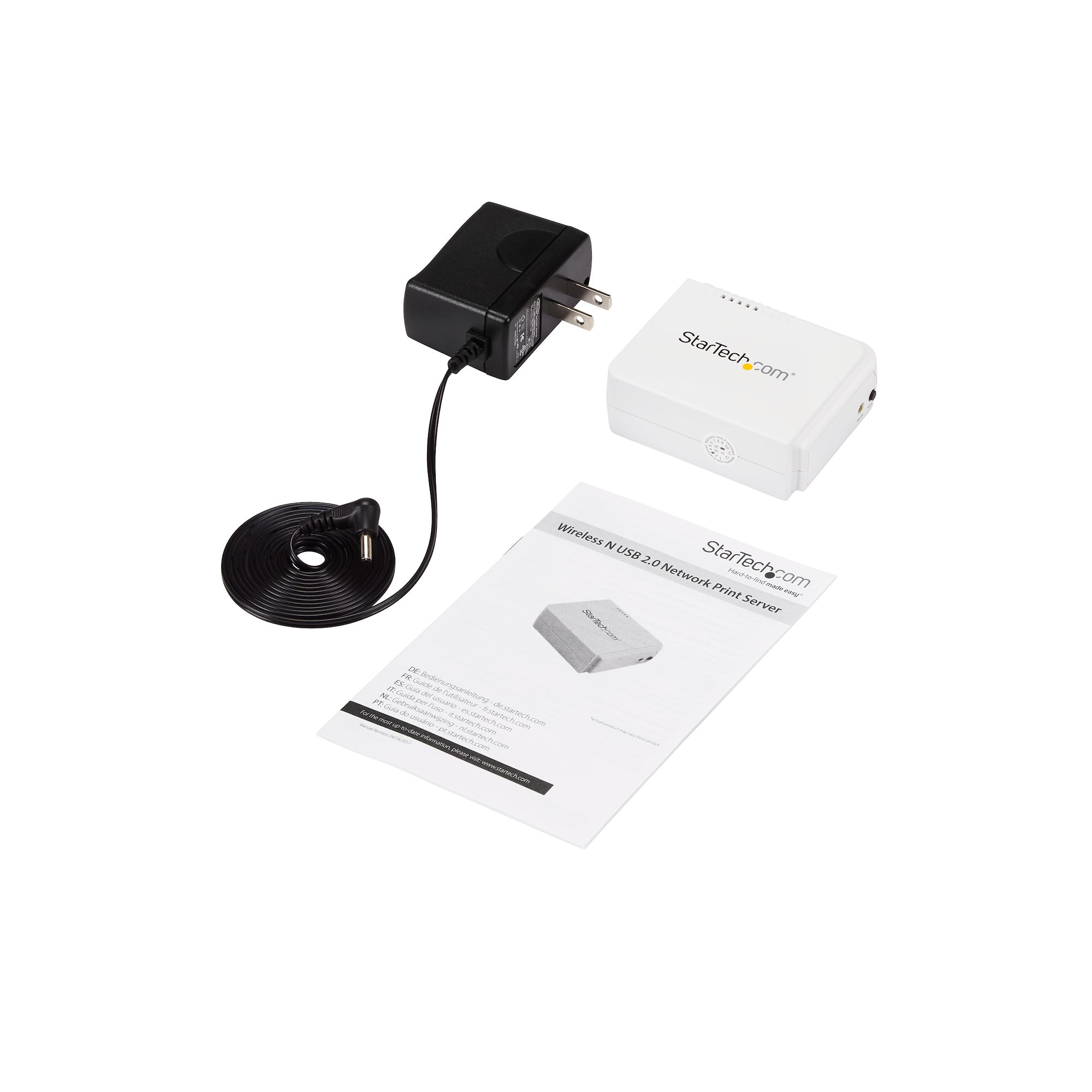

Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 70% |
| Storage relative humidity (H-H) | 0 - 70% |
| Storage temperature (T-T) | -5 - 65 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA), CE, Federal Communications Commission (FCC) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 374 mm |
| Master (outer) case length | 492 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 20 pc(s) |
