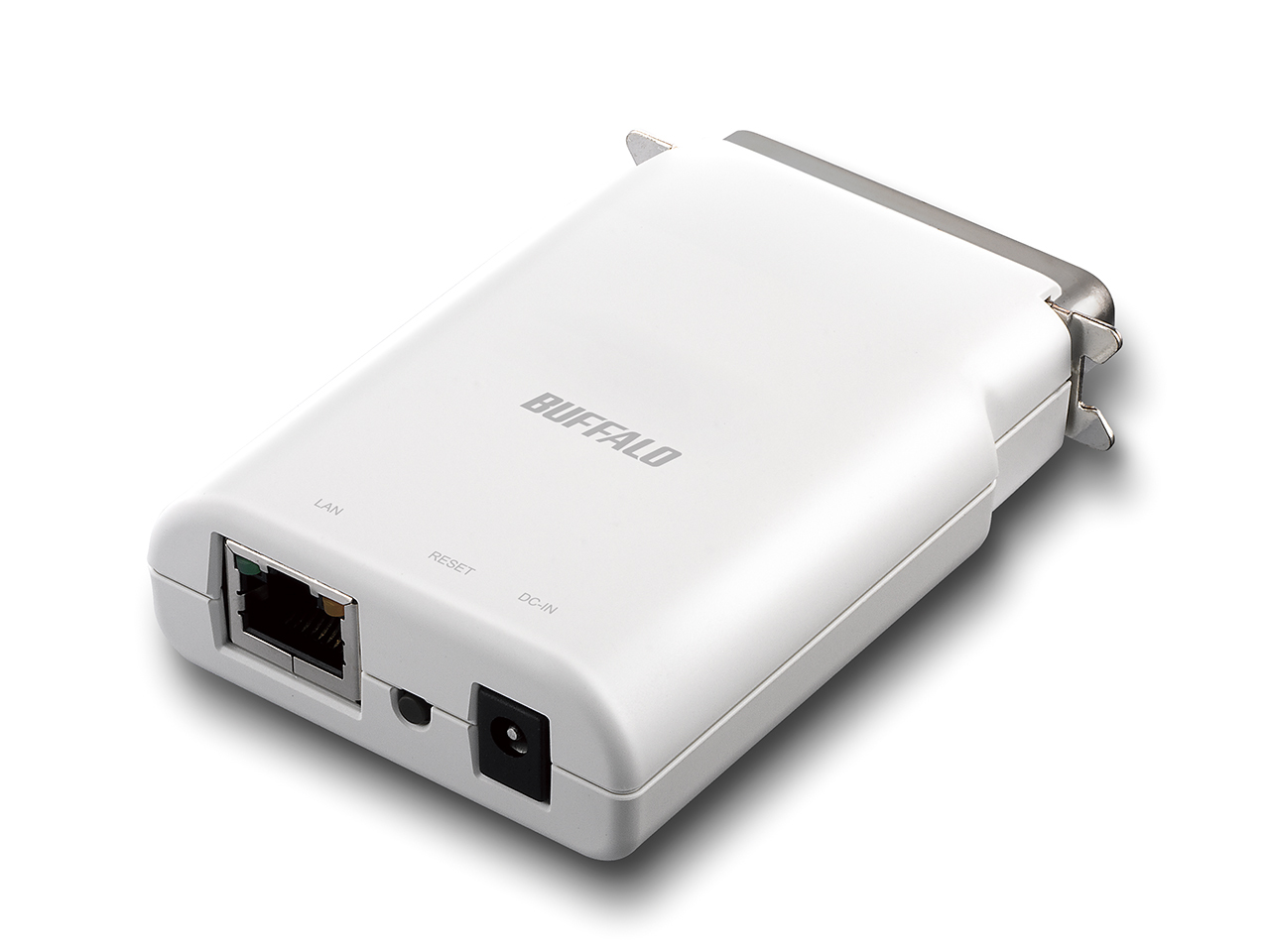

LPV4-TX1 print server Ethernet LAN
Model LPV4-TX1EAN 4981254014967
21 specifications
- InternalNo
- Network connection typeEthernet LAN
- Ethernet LAN (RJ-45) ports1
- AC input voltage100 V
- Depth23 mm
- Operating relative humidity (H-H)10 - 85%
Overview
- Internal
- No
- Network connection type
- Ethernet LAN
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 100 V
- Depth
- 23 mm
- Operating relative humidity (H-H)
- 10 - 85%
- Brand
- Buffalo
- Category
- Print Server
- Model
- LPV4-TX1
- Part number
- LPV4-TX1
- EAN / UPC
- 4981254014967
- Also known as
- Buffalo LPV4-TX1 print server Ethernet LAN
Specifications
21 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Internal | No |
Network
| Specification | Value |
|---|---|
| Network connection type | Ethernet LAN |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ARP, RARP, IP, ICMP, TCP, UDP, TCP # 9100, LPD, FTP , TELNET, HTTP, BOOTP, DHCP, SNMP, JCP (UDP # 19541), SNMP MIB-II, HostResource-MIB, silex-PrivateMIB, mDNS |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 5 V |
| Input current | 2 A |
| Power consumption (typical) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 23 mm |
| Height | 92 mm |
| Width | 62 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
