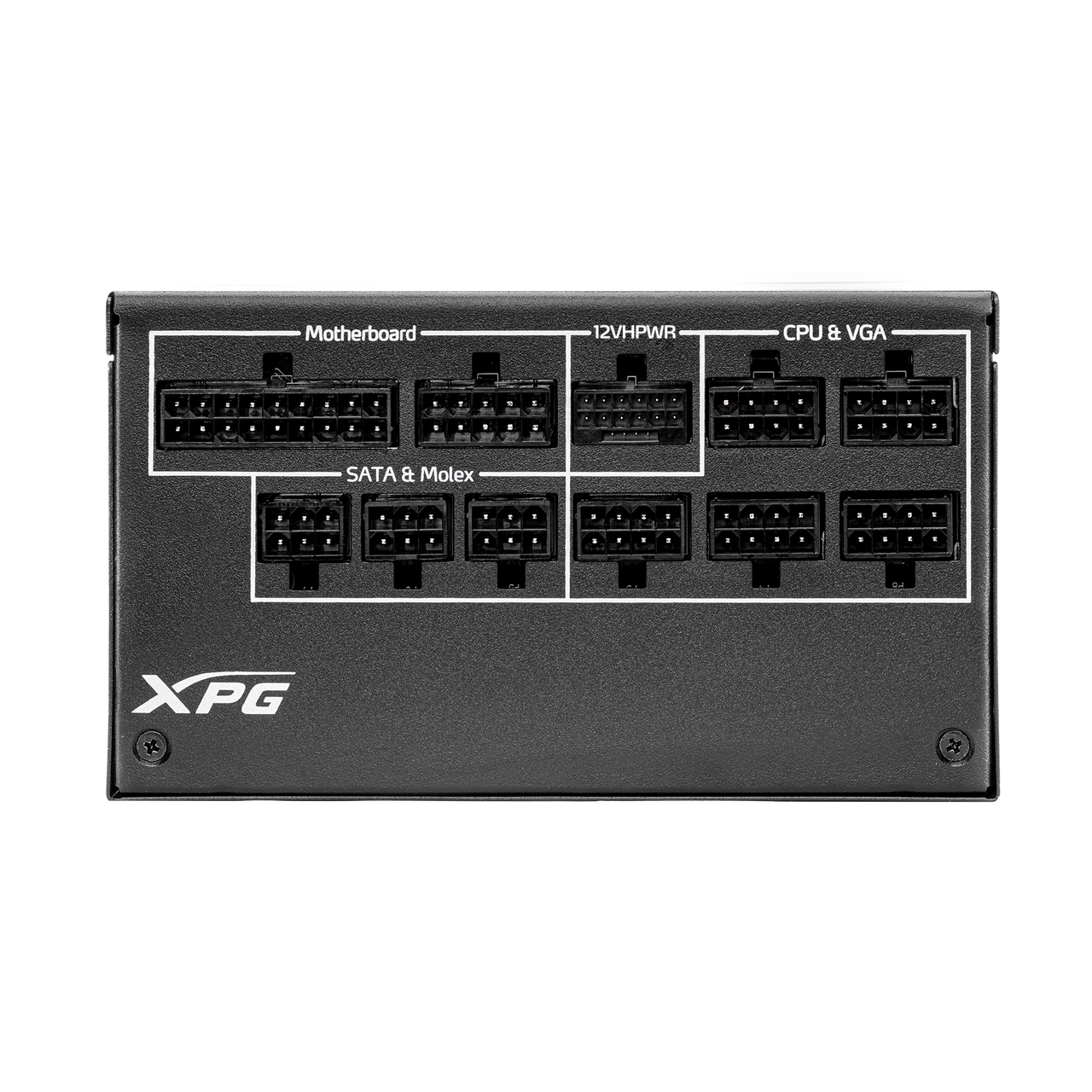

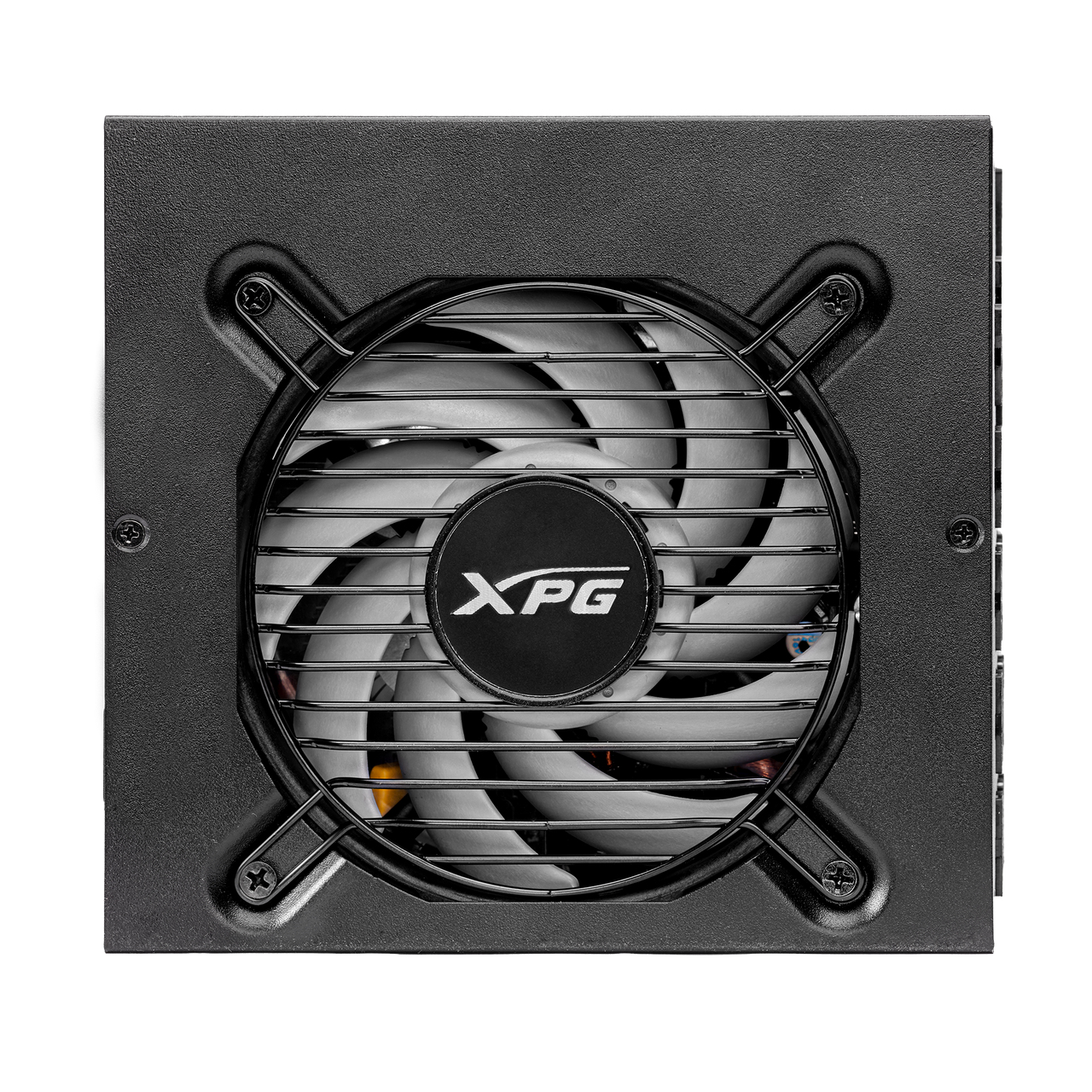

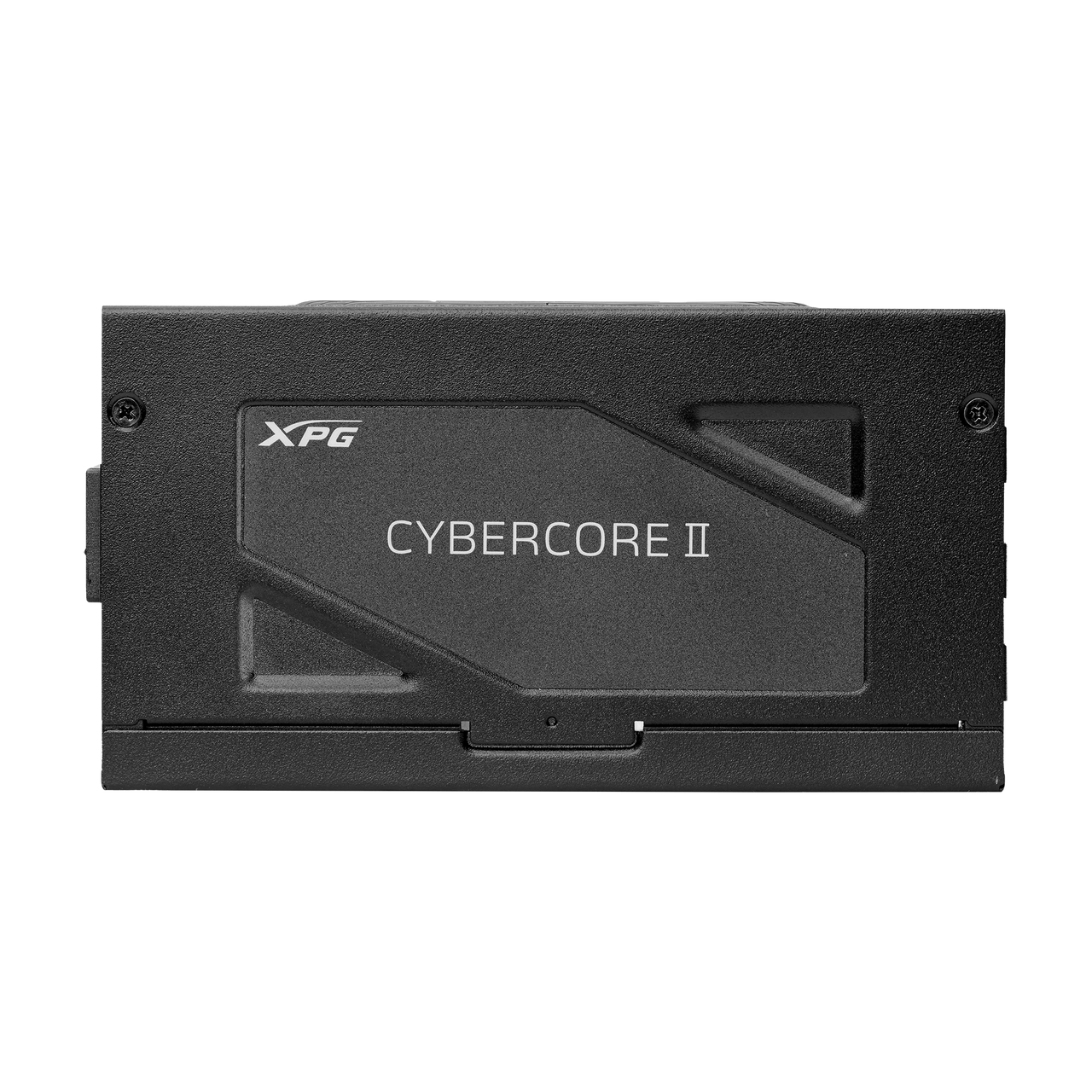

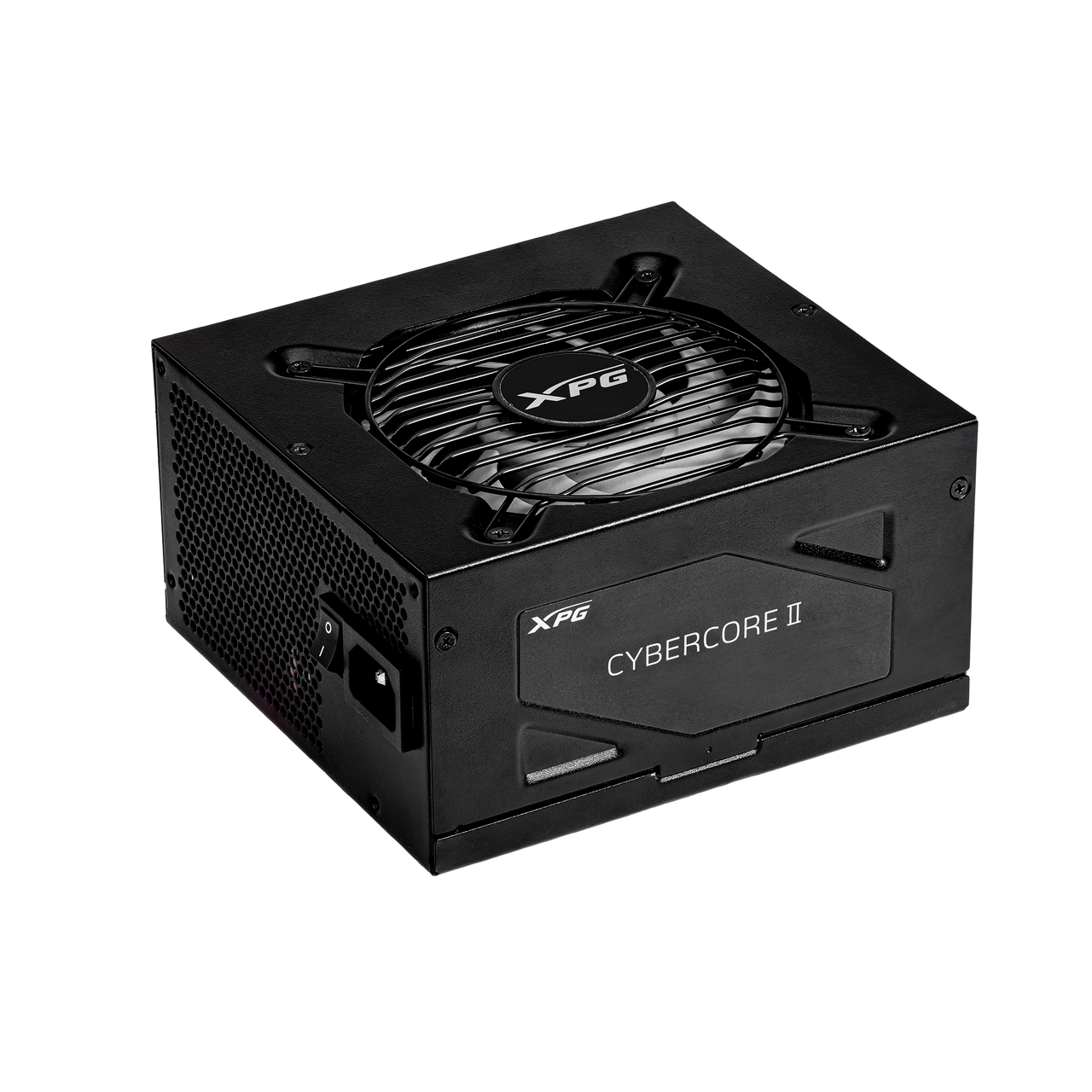

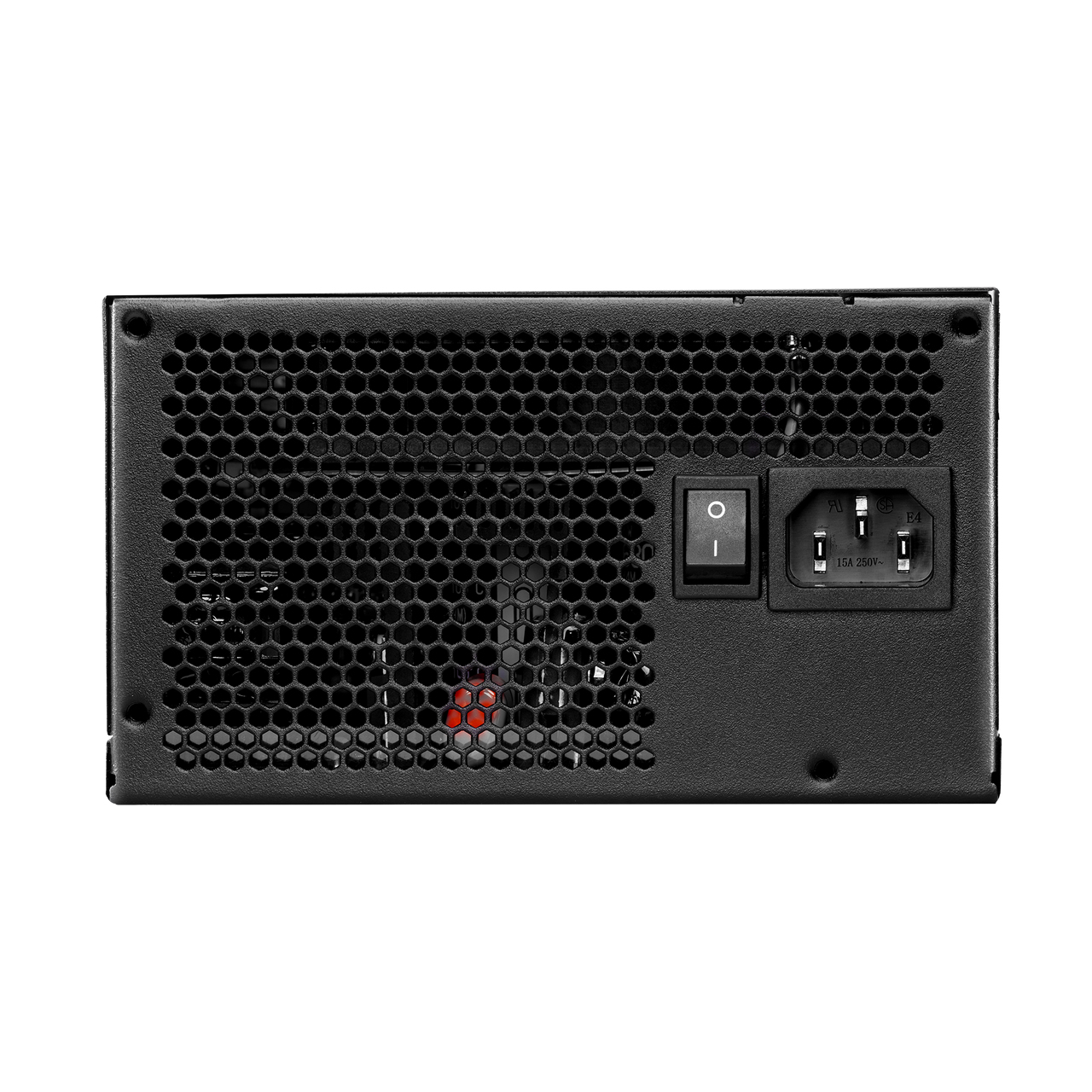

XPG CYBERCOREII1000P-BKCAU power supply unit
1000 W 20+4 pin ATX ATX Black
Model CYBERCOREII1000P-BKCAUPart no. 15260150
44 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
- Sustainability complianceYes
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Sustainability compliance
- Yes
- Brand
- XPG
- Category
- Power Supply Unit
- Model
- CYBERCOREII1000P-BKCAU
- Part number
- 15260150
- Also known as
- XPG CYBERCOREII1000P-BKCAU power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
44 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 13 A |
| Power factor | 0.99 |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 75 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,600 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 75 cm |
| Floppy disk drive cable length | 15 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Bearing technology | DBB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, UKCA |
| Certification | CQC, NOM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 10 year(s) |
Compare XPG CYBERCOREII1000P-BKCAU power supply unit

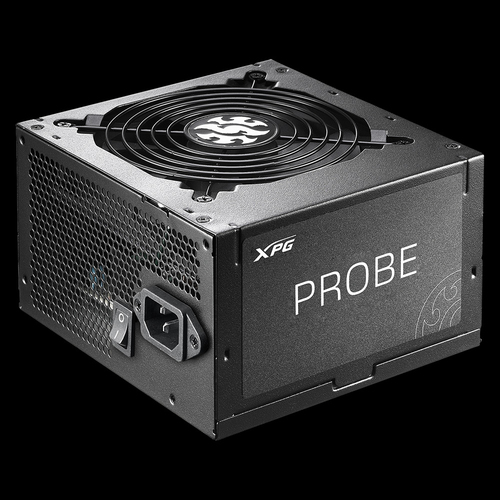

Compare any products- XPG CYBERCOREII1000P-BKCAU power supply unit vsXPG PROBE power supply unitCompare specs
- XPG CYBERCOREII1000P-BKCAU power supply unit vsXPG FUSION 1600WCompare specs
- XPG CYBERCOREII1000P-BKCAU power supply unit vsXPG CYBERCORE II 1300WCompare specs
- XPG CYBERCOREII1000P-BKCAU power supply unit vsXPG CYBERCORE II 1000WCompare specs
- XPG CYBERCOREII1000P-BKCAU power supply unit vsMSI MAG A600DNCompare specs
- XPG CYBERCOREII1000P-BKCAU power supply unit vsASUS Prime 850W Gold ( AP-850G )Compare specs

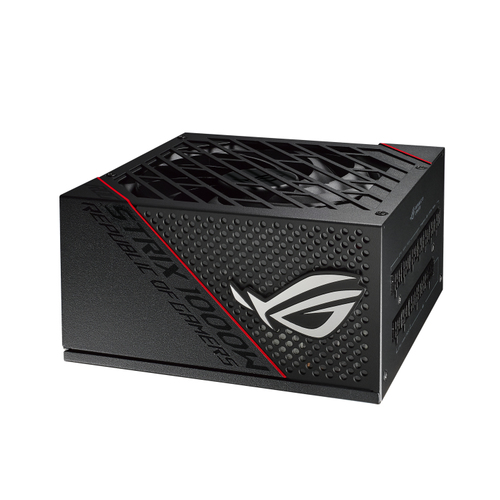

- XPG CYBERCOREII1000P-BKCAU power supply unit vsASUS ROG STRIX 1000W Gold (16-pin cable)Compare specs
