DARK POWER 12 750W
Model DARK POWER 12 750WPart no. BN314EAN 4260052188002
76 specifications
- Noise19.6 dB
- Weight1.96 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 19.6 dB
- Weight
- 1.96 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- DARK POWER 12 750W
- Part number
- BN314
- EAN / UPC
- 4260052188002
- Also known as
- be quiet! DARK POWER 12 750W power supply unit 20+4 pin ATX ATX Black
Specifications
76 specifications in 12 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| Peak power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 - 4.5 A |
| Maximum input current (@110V) | 9 A |
| Maximum input current (@220V) | 4.5 A |
| Power factor | 0.97 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+12V3) | 30 A |
| Max output current (+12V4) | 30 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 93.8% |
| Hold time | 20.2 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 600,750,900,1050 mm |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| Peripheral (Molex) power cable length | 1050,600,750,900 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 120 cm |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 2.52 |
| EPS version | 2.92 |

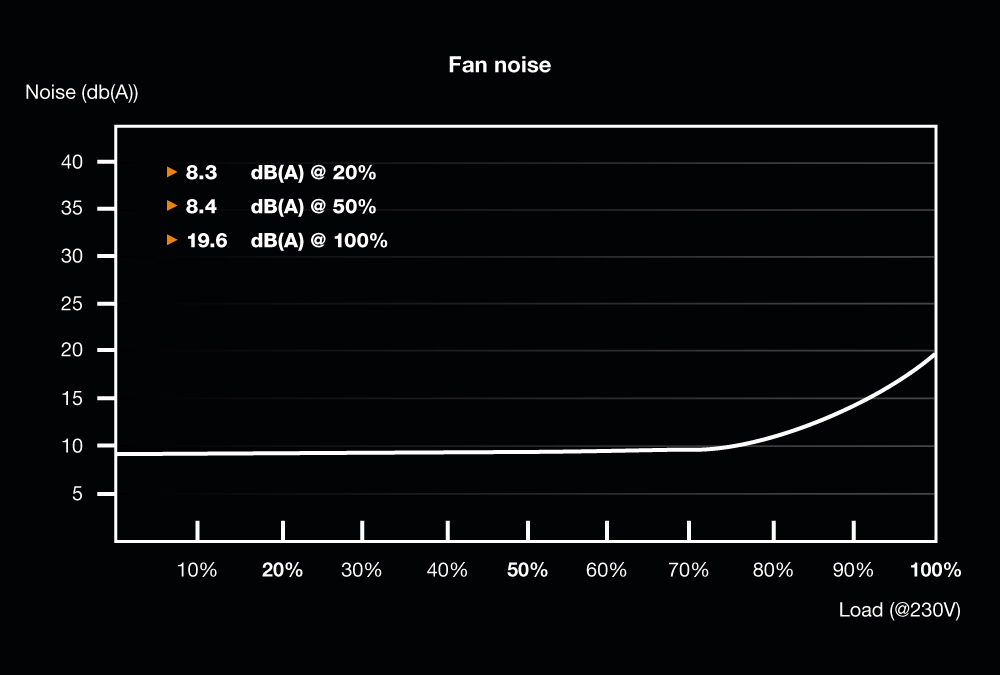

| Noise level | 19.6 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 200000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Specification | Value |
|---|---|

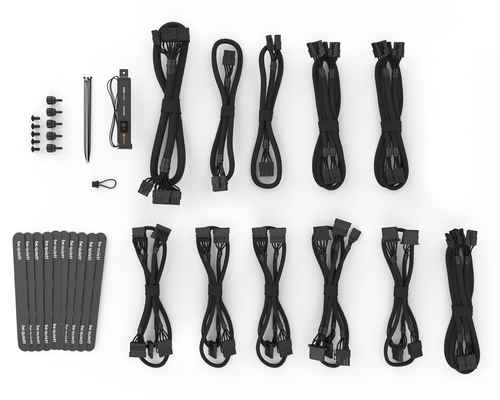

| Cables included | CPU, DC, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | WEEE |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 175 mm |
| Height | 86 mm |
| Weight | 1.96 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 270 mm |
| Package height | 120 mm |
| Package weight | 4.18 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case gross weight | 18.1 kg |
| Shipping (inner) case height | 36.8 cm |
| Shipping (inner) case length | 50.4 cm |
| Shipping (inner) case width | 30.5 cm |
| Harmonized System (HS) code | 84733020 |
