Dark Power Pro 14 IO
Model Dark Power Pro 14 IOPart no. BP022EUEAN 4260052192108
81 specifications
- Noise22.1 dB
- Weight2.63 kg
- ColourBlack
- Total power1300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 22.1 dB
- Weight
- 2.63 kg
- Colour
- Black
- Total power
- 1300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Dark Power Pro 14 IO
- Part numbers
- BP022EU, BP023EU
- EAN / UPC
- 4260052192108, 4260052192115
- Also known as
- be quiet! Dark Power Pro 14 IO power supply unit 1300 W 20+4 pin ATX ATX Black
Specifications
81 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 1300 W |
| Peak power | 1400 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 9 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 6 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V4) | 40 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 93.9% |
| Hold time | 16.5 ms |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage, Over power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 16 |
| SATA power cable length | 600,750,900,1050 mm |
| Number of SATA power cables | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 900,1050 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12-pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| Cybenetics certification | Titanium |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 22.1 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |

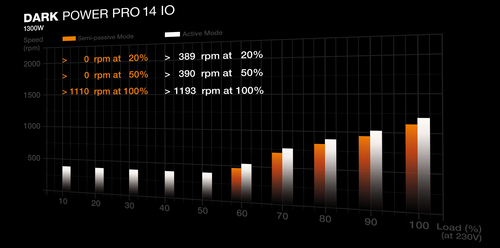

| Fan speed | 0 - 2600 RPM |
| Illumination | No |
| On/off fan switch | Yes |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Specification | Value |
|---|---|
| Cable tie(s) included | Yes |
| USB cable length | 0.8 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.63 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai |
| Package width | 253 mm |
| Package depth | 417 mm |
| Package height | 152 mm |
| Package weight | 6.68 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case height | 28.3 cm |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case net weight | 15.2 kg |
| Shipping (inner) case width | 32.5 cm |
| Warranty period | 10 year(s) |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Cable ties included | Yes |
