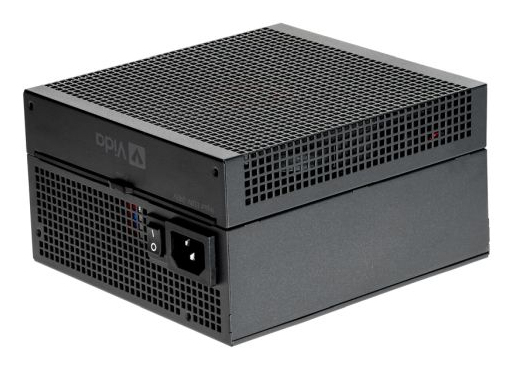

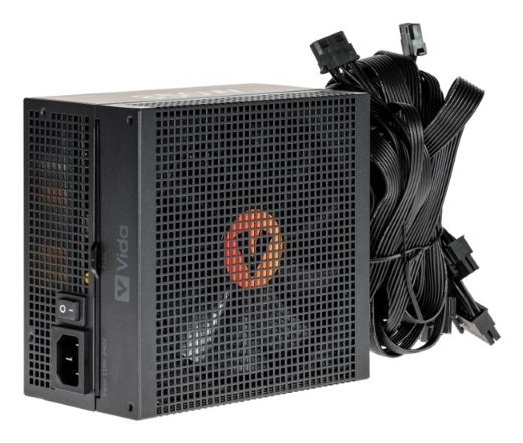

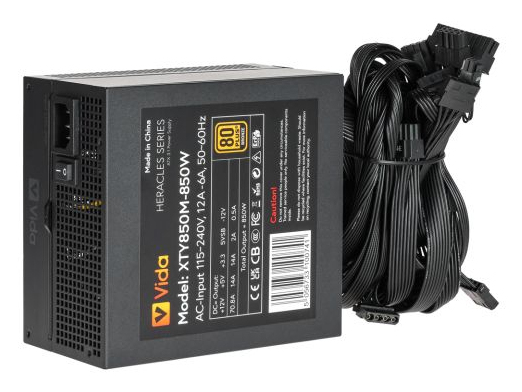

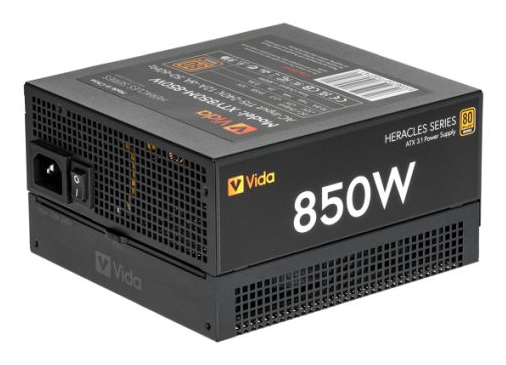

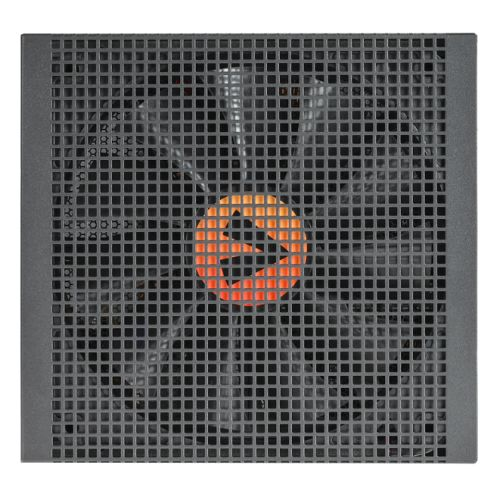

Heracles power supply unit
850 W 20+4 pin ATX ATX Black
Model HeraclesPart no. XTY850D-750W-WHTEAN 5056733100413
35 specifications
- Weight1.76 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Weight
- 1.76 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- VIDA
- Category
- Power Supply Unit
- Model
- Heracles
- Part numbers
- XTY850D-750W-WHT, XTY850D-650W, XTY850M-850W, XTY850G-750W, XTY850G-850W, XTY850D-750W
- EAN / UPC
- 5056733100413, 5056733100420, 5056733100390, 5056733100406 +1 more
- Also known as
- VIDA Heracles power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
35 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-8 A |
| Power Factor Correction (PFC) type | Active |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 120,450 mm |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |

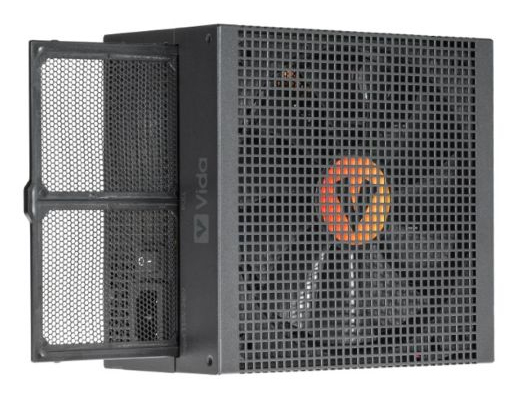

| Removable filter | Yes |
| ATX version | 3.1 |
| Bearing technology | Hydro bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Front |
| Illumination | No |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 86 mm |
| Height | 150 mm |
| Weight | 1.76 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 2 year(s) |
