Product comparison · 2 power supply units

VIDA AA-650-YY power supply unit vs VIDA Heracles power supply unit

Add a product
  • 31specifications compared
  • 17differ
  • 14identical
  • 25known for one product only

Key differences

  • Total power
    • 650 W
    • 850 W
  • AC input voltage
    • 200 - 240 V
    • 115 - 240 V
  • Power Factor Correction (PFC) type
    • Passive
    • Active
  • Motherboard power connector
    • 24-pin ATX
    • 20+4 pin ATX
  • SATA power cable length
    • 800,1000 mm
    • 120,450 mm
  • Peripheral (Molex) power cable length
    • 800,1000 mm
    • 120,450 mm
  • PCI Express power connectors (6+2 pin)
    • 1
    • 4
  • 80 PLUS certification
    • No
    • 80 PLUS Bronze

Side by side

Differences highlightedShow differences only
56 specifications
A

VIDA

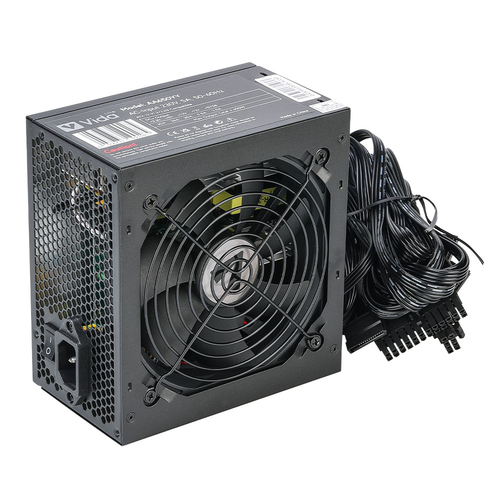

AA-650-YY power supply unit

Model AA-650-YY

View product
B

VIDA

Heracles power supply unit

Model Heracles

View product
Power3 differ
Total powerDiffers650 W850 W
Peak powerKnown for one650 W
AC input voltageDiffers200 - 240 V115 - 240 V
AC input frequency50/60 Hz50/60 Hz
Power Factor Correction (PFC) typeDiffersPassiveActive
Number of +12V rail(s)Known for one1
Max output current (+3.3V)Known for one30 A
Max output current (+12V)Known for one30 A
Max output current (+5V)Known for one36 A
Max output current (-12V)Known for one0.5 A
Max output current (+5Vsb)Known for one2.5 A
Power protection featuresKnown for oneOver power
Input currentKnown for one10-8 A
Ports & interfaces4 differ
Motherboard power connectorDiffers24-pin ATX20+4 pin ATX
Motherboard power cable length55 cm55 cm
Number of PATA power connectorsKnown for one1
Number of SATA power connectorsKnown for one6
SATA power cable lengthDiffers800,1000 mm120,450 mm
Peripheral (Molex) power cable lengthDiffers800,1000 mm120,450 mm
EPS power connector (4+4 pin)Known for oneYes
PCI Express power connectors (6+2 pin)Differs14
PCI Express power cable lengthKnown for one61 cm
CPU power connector (4+4 pin)YesYes
CPU power cable lengthKnown for one58 cm
ATX Power connector (24-pin)Known for oneYes
Floppy disk drive connectorKnown for oneYes
Floppy drive power connectorKnown for one1
Number of EPS connectorsKnown for one1
PCI Express connectorYesYes
Cabling typeNon-ModularNon-Modular
PCI Express power connectors (12+4 pin)Known for one1
Performance3 differ
PurposePCPC
Power supply unit (PSU) form factorATXATX
80 PLUS certificationDiffersNo80 PLUS Bronze
ATX versionDiffers1.33.1
Bearing technologyDiffersHydraulicHydro bearing
Removable filterKnown for oneYes
Design2 differ
Product colourBlackBlack
Cooling typeActiveActive
Fan diameterDiffers12 cm14 cm
Number of fans1 fan(s)1 fan(s)
Fan locationDiffersTopFront
IlluminationNoNo
On/off switchYesYes
Certificates1 differ
Compliance certificatesDiffersUKCA, CE, RoHSCB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Weight & dimensions4 differ
WidthDiffers150 mm160 mm
DepthDiffers85 mm86 mm
HeightDiffers140 mm150 mm
WeightDiffers1.27 kg1.76 kg
Packaging dataidentical
Package widthKnown for one195 mm
Package depthKnown for one92 mm
Package heightKnown for one160 mm
Package weightKnown for one1.5 kg
Package typeBoxBox
Logistics dataidentical
Country of originChinaChina
Warranty periodKnown for one2 year(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
