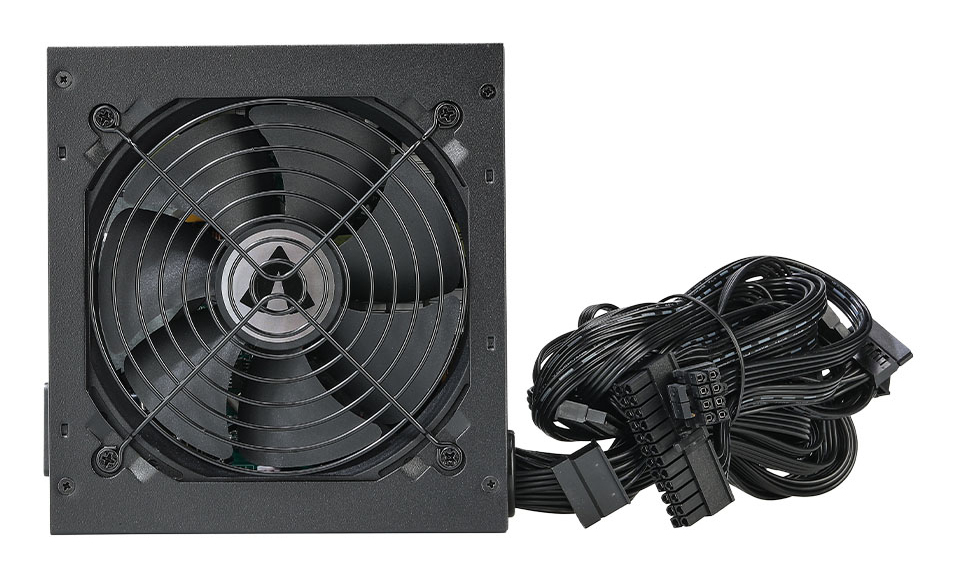

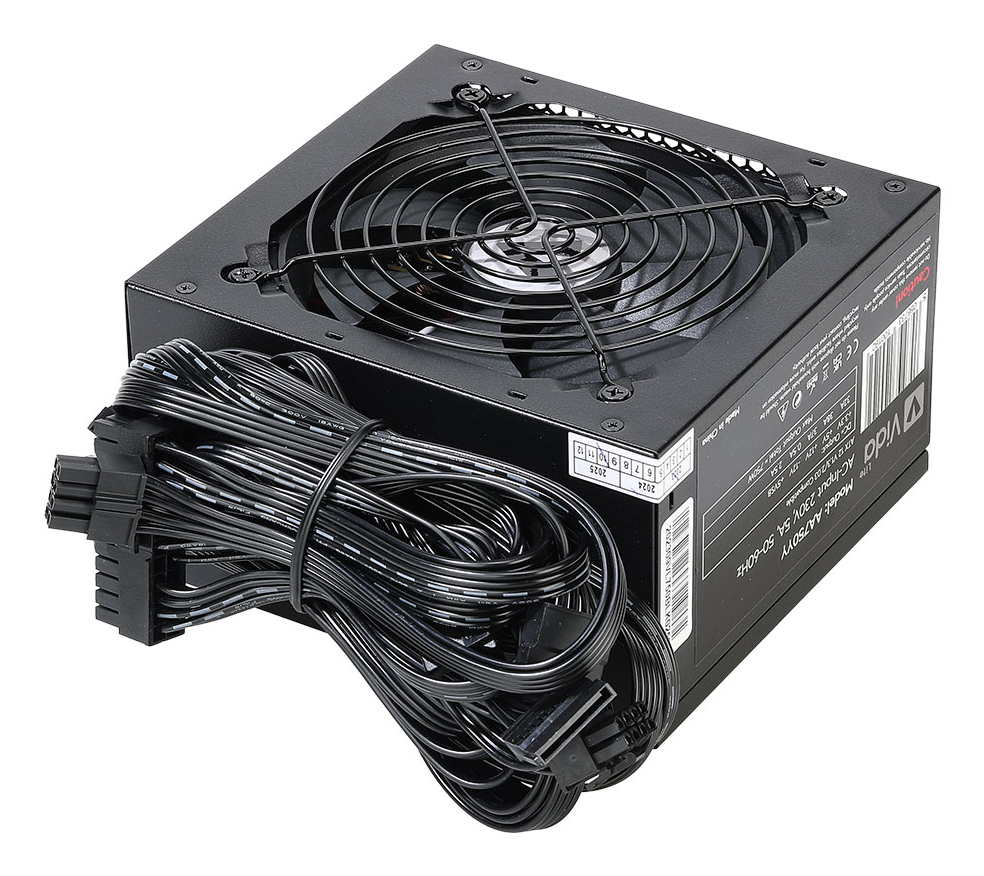

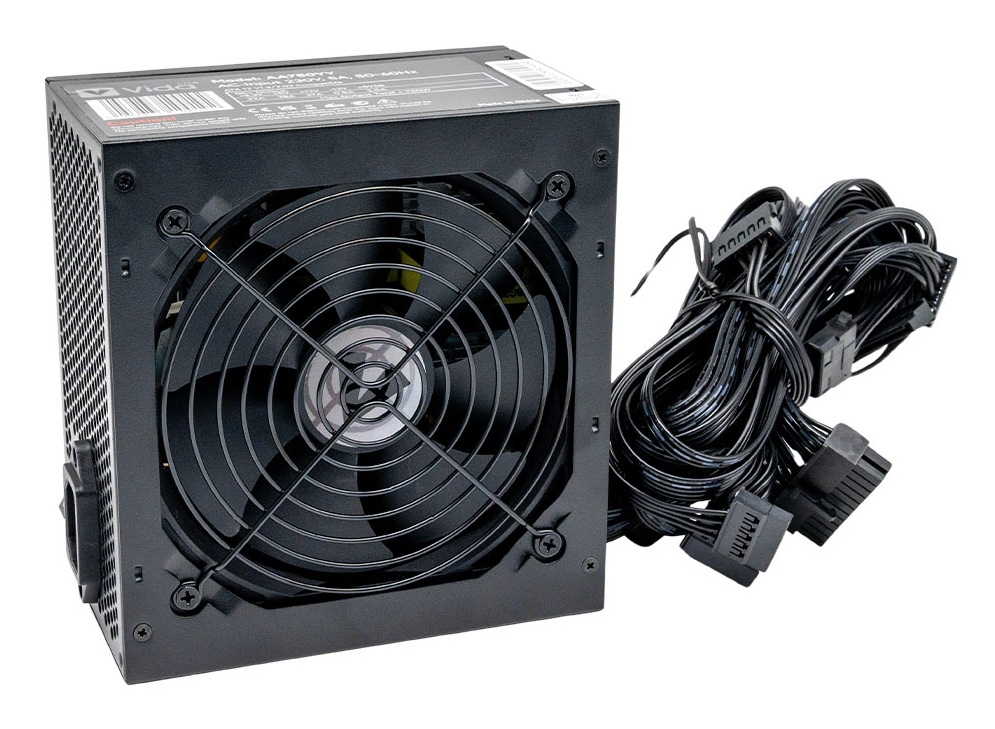

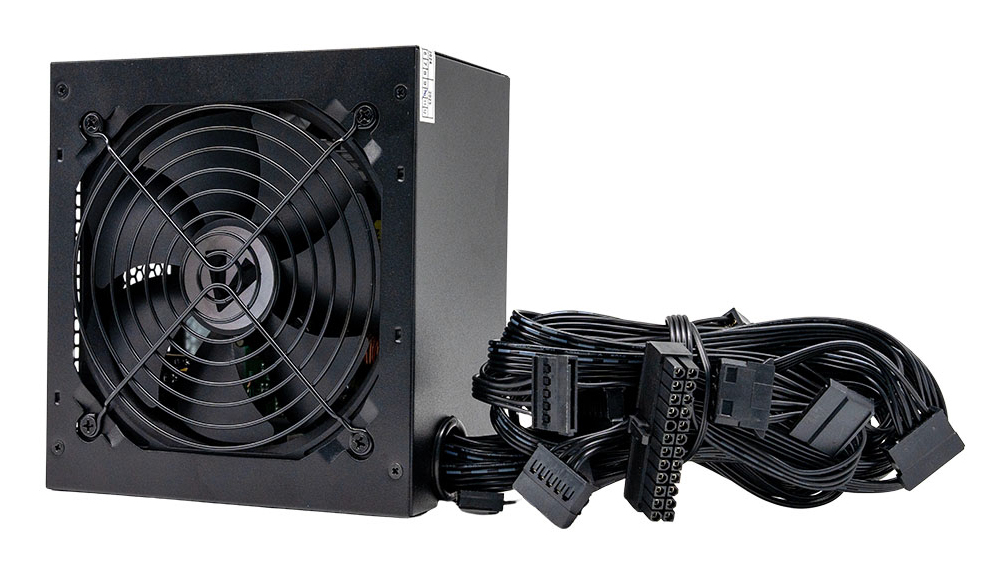

AA-750-YY power supply unit
750 W 24-pin ATX ATX Black
Model AA-750-YYEAN 5056733100192
49 specifications
- Weight1.29 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.29 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- VIDA
- Category
- Power Supply Unit
- Model
- AA-750-YY
- Part number
- AA-750-YY
- EAN / UPC
- 5056733100192
- Also known as
- VIDA AA-750-YY power supply unit 750 W 24-pin ATX ATX Black
Specifications
49 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| Peak power | 750 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 33 A |
| Max output current (+12V) | 37 A |
| Max output current (+5V) | 38 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 1 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 800 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 61 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 58 cm |
| Floppy disk drive connector | Yes |
| Number of EPS connectors | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| ATX version | 1.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Front |
| Illumination | No |

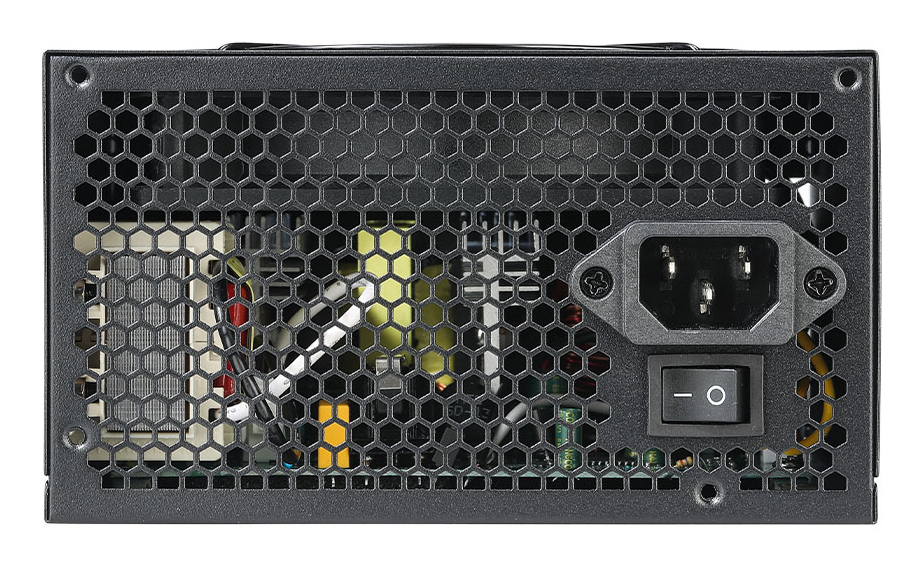

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UKCA, CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.29 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 92 mm |
| Package height | 160 mm |
| Package weight | 1.5 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
