Shuttle PC63 power supply unit
Model PC63 power supply unitPart no. PC63EAN 811686005254
35 specifications
- Noise30 dB
- Weight1.1 kg
- ColourGrey
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 30 dB
- Weight
- 1.1 kg
- Colour
- Grey
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Shuttle
- Category
- Power Supply Unit
- Model
- PC63 power supply unit
- Part number
- PC63
- EAN / UPC
- 811686005254, 3610170563693, 5052179095214, 5052217137814
- Also known as
- Shuttle PC63 power supply unit 500 W 20+4 pin ATX Grey
Specifications
35 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8/4 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 82% |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 30 dB |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | Shuttle XPC models: SN78SH7, SG45H7, SP45H7, SX58H7, SX58H7 Pro, SH67H3, SH67H7 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | cUL, TÜV, CB, BSMI, CCC |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC class B, CE, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82 mm |
| Depth | 200 mm |
| Height | 53 mm |
| Weight | 1.1 kg |
Other features
| Specification | Value |
|---|---|
| Rise time | 20 ms |
What people say
Reviews & ratings
Shuttle PC63 power supply unit
No reviews yet
Be the first to tell others how Shuttle PC63 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Shuttle PC63 power supply unit
All power supply unit comparisons- Shuttle PC63 power supply unit vsShuttle PC45G power supply unitCompare specs
- Shuttle PC63 power supply unit vsShuttle PC850 power supply unitCompare specs
- Shuttle PC63 power supply unit vsShuttle PC63J power supply unitCompare specs
- Shuttle PC63 power supply unit vsShuttle PC61J power supply unitCompare specs

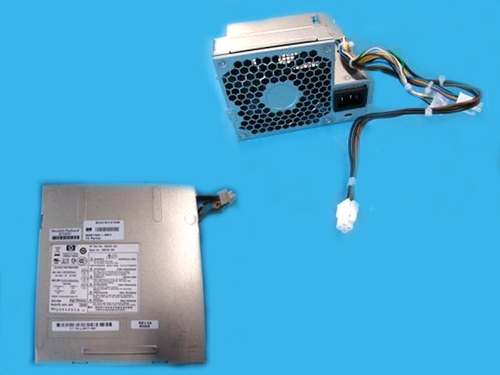

- Shuttle PC63 power supply unit vsHP 508152-001 power supply unitCompare specs
- Shuttle PC63 power supply unit vsFujitsu S26113-F607-L200 power supply unitCompare specs
- Shuttle PC63 power supply unit vsHP 508151-001 power supply unitCompare specs

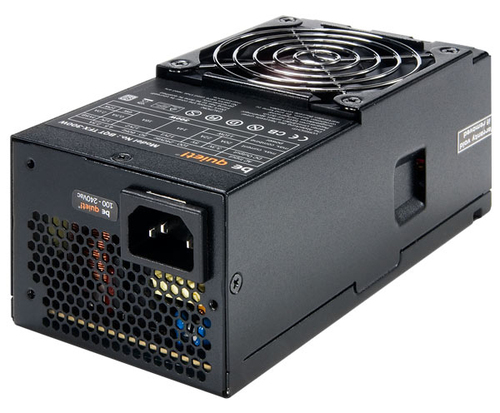

- Shuttle PC63 power supply unit vsbe quiet! TFX-300W power supply unit 20+4 pin ATX ATX BlackCompare specs
