Product comparison · 2 power supply units

Shuttle PC45G power supply unit vs Shuttle PC63 power supply unit

Add a product
  • 25specifications compared
  • 14differ
  • 11identical
  • 23known for one product only

Key differences

  • Total power
    • 250 W
    • 500 W
  • AC input voltage
    • 90 - 264 V
    • 100 - 240 V
  • AC input frequency
    • 47 - 63 Hz
    • 50 - 60 Hz
  • Input current
    • 3 - 1.5 A
    • 8/4 A
  • Max output current (+5V)
    • 18 A
    • 16 A
  • Max output current (+5Vsb)
    • 2 A
    • 2.5 A
  • Motherboard power connector
    • 24-pin ATX
    • 20+4 pin ATX
  • Product colour
    • Silver
    • Grey

Side by side

Differences highlightedShow differences only
48 specifications
A

Shuttle

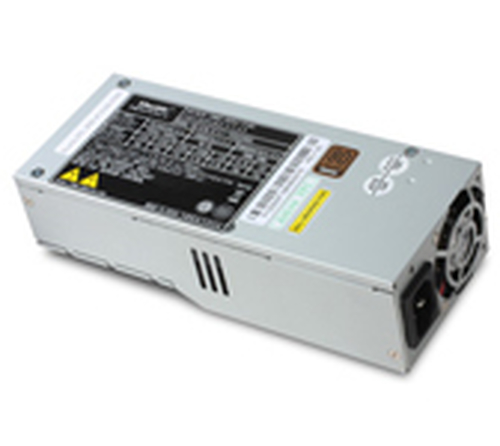

PC45G power supply unit

Model PC45G

View product
B

Shuttle

PC63 power supply unitView product
Power7 differ
Total powerDiffers250 W500 W
AC input voltageDiffers90 - 264 V100 - 240 V
AC input frequencyDiffers47 - 63 Hz50 - 60 Hz
Input currentDiffers3 - 1.5 A8/4 A
Maximum input current (@110V)Known for one+12V,+3.3V,+5V,+5Vsb,-12V
Combined power (+3.3V)Known for one100 W
Combined power (+12V)Known for one216 W
Combined power (+5V)Known for one100 W
Max output current (+3.3V)18 A18 A
Max output current (+12V)17 A17 A
Max output current (+5V)Differs18 A16 A
Max output current (-12V)0.3 A0.3 A
Max output current (+5Vsb)Differs2 A2.5 A
Hold time17 ms17 ms
Power protection featuresDiffersOver current, Over power, Over voltage, Short circuit, Under voltage, OverheatingOver current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power Factor Correction (PFC) typeKnown for oneActive
EfficiencyKnown for one82%
Ports & interfaces1 differ
Motherboard power connectorDiffers24-pin ATX20+4 pin ATX
Number of SATA power connectors33
Peripheral (Molex) power connectors (4-pin)22
ATX Power connector (24-pin)Known for oneYes
Floppy drive power connector11
Cabling typeNon-ModularNon-Modular
PCI Express power connectors (6-pin)Known for one1
PCI Express power connectors (6+2 pin)Known for one1
Performance1 differ
PurposePCPC
Power supply unit (PSU) form factorKnown for oneFlex ATX
80 PLUS certification80 PLUS Bronze80 PLUS Bronze
Compatible productsDiffersShuttle XPC G, G2, G5, G6, ST61G4Shuttle XPC models: SN78SH7, SG45H7, SP45H7, SX58H7, SX58H7 Pro, SH67H3, SH67H7
Noise levelKnown for one30 dB
Mean time between failures (MTBF)Known for one100000 h
Design1 differ
Product colourDiffersSilverGrey
Cooling typeKnown for oneActive
Fan diameterKnown for one4 cm
Number of fansKnown for one1 fan(s)
Certificates1 differ
Compliance certificatesKnown for oneRoHS
CertificationDiffersCE, CB, WEEE, ErPFCC class B, CE, BSMI, CCC
Weight & dimensions3 differ
WidthDiffers80 mm82 mm
DepthDiffers150 mm200 mm
HeightDiffers40 mm53 mm
WeightKnown for one1.1 kg
Technical detailsidentical
Sustainability certificatesKnown for oneENERGY STAR
Logistics dataidentical
Harmonized System (HS) codeKnown for one84733020
Country of originKnown for oneChina
Other featuresidentical
Rise time20 ms20 ms
Operational conditionsidentical
Operating temperature (T-T)Known for one10 - 50 °C
Storage temperature (T-T)Known for one-40 - 70 °C
Safety regulation & standardsidentical
SafetyKnown for onecUL, TÜV, CB, BSMI, CCC

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
