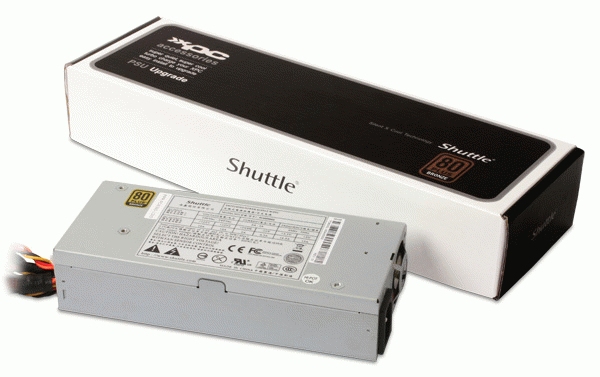

Shuttle PC60 power supply unit
300 W 20+4 pin ATX Grey
Model PC60EAN 8116860052232
33 specifications
- Noise30 dB
- Weight900 g
- ColourGrey
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 30 dB
- Weight
- 900 g
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Shuttle
- Category
- Power Supply Unit
- Model
- PC60
- Part number
- PC60
- EAN / UPC
- 8116860052232, 172302772463, 811686005001, 811686005223 +4 more
- Also known as
- Shuttle PC60 power supply unit 300 W 20+4 pin ATX Grey
Specifications
33 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 - 6 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 14.5 W |
| Combined power (+12V) | 14 W |
| Combined power (+5V) | 15 W |
| Combined power (-12V) | 0.3 W |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 80% |
| Hold time | 17 ms |
| Power protection features | Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Noise level | 30 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | FCC class B, CE, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 900 g |
Other features
| Specification | Value |
|---|---|
| Rise time | 20 ms |
